Laverda/Fiatagri 3600-3900

84Laverda3600
84Laverda3600ohjaamo
84Laverda3900
84Laverda3900ohjaamo
84Laverda3600
84Laverda3600ohjaamo
84Laverda3900
84Laverda3900ohjaamo
Manufacturer
Models
Laverda 3600, Laverda 3700, Laverda 3900
Years
1983-88
Info

Here is the English translation of the provided text:

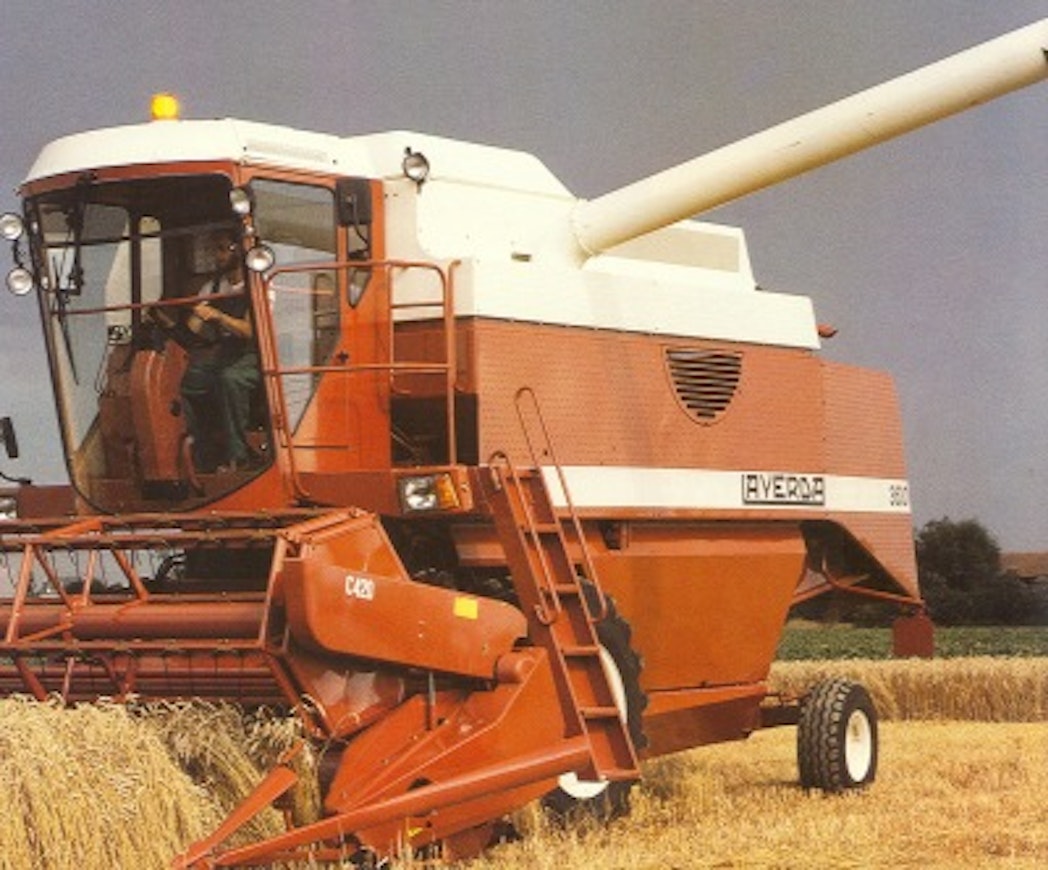

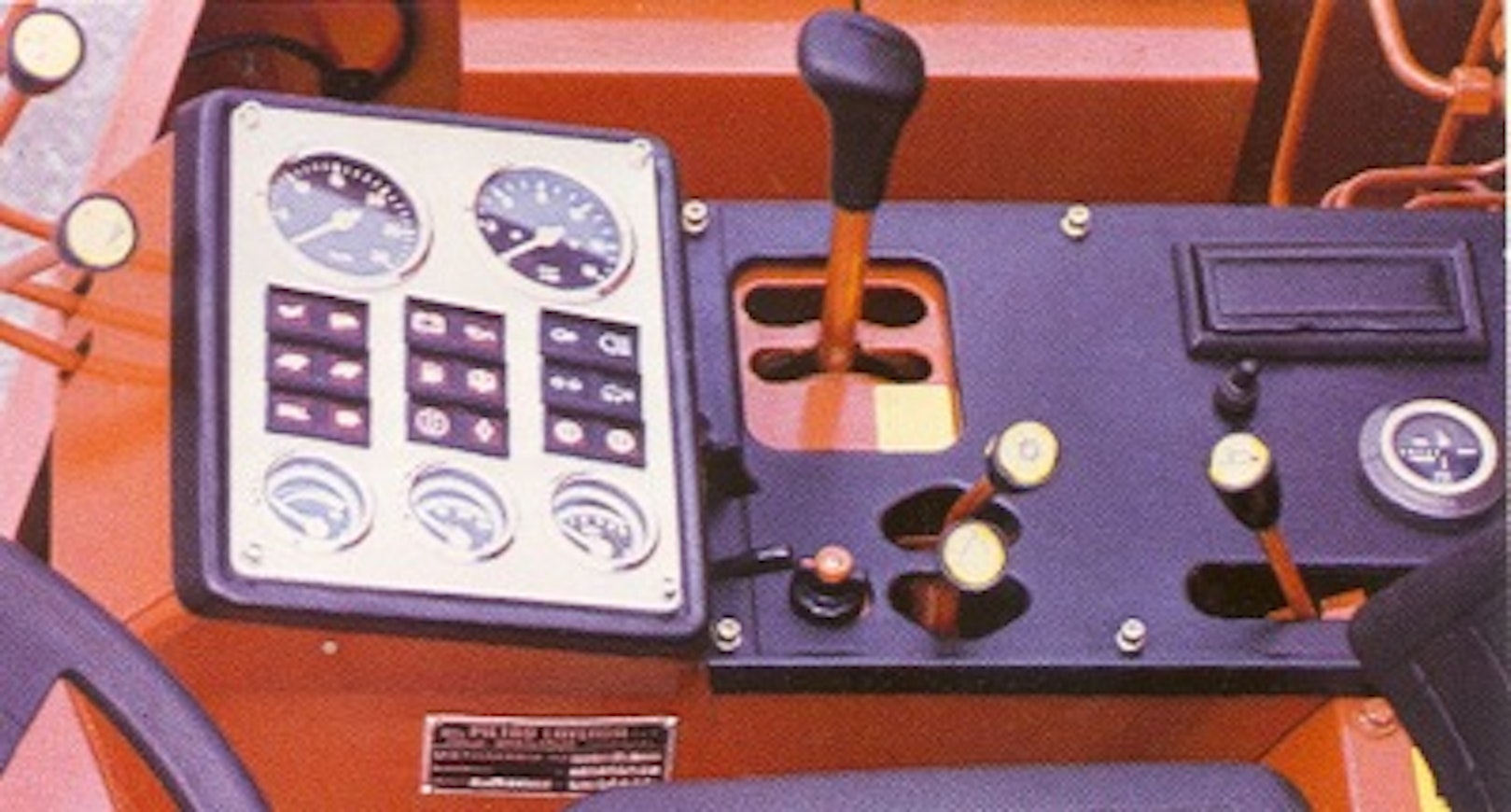

In the Laverda lineup introduced in 1983, the 5-cylinder 3600 and 3700 models were quite large combines compared to the smaller models. However, the technology was largely similar to that of the smaller models. The sieves were significantly larger than in the previous models. The 3600 was equipped with a 5.5-liter engine, and the 3700 with an 8.1-liter engine. The drive transmission was mechanical. Driving speed and the unloading auger speed were adjusted using the left foot pedals. The grain tanks were large. A curved-glass cab was an optional extra.

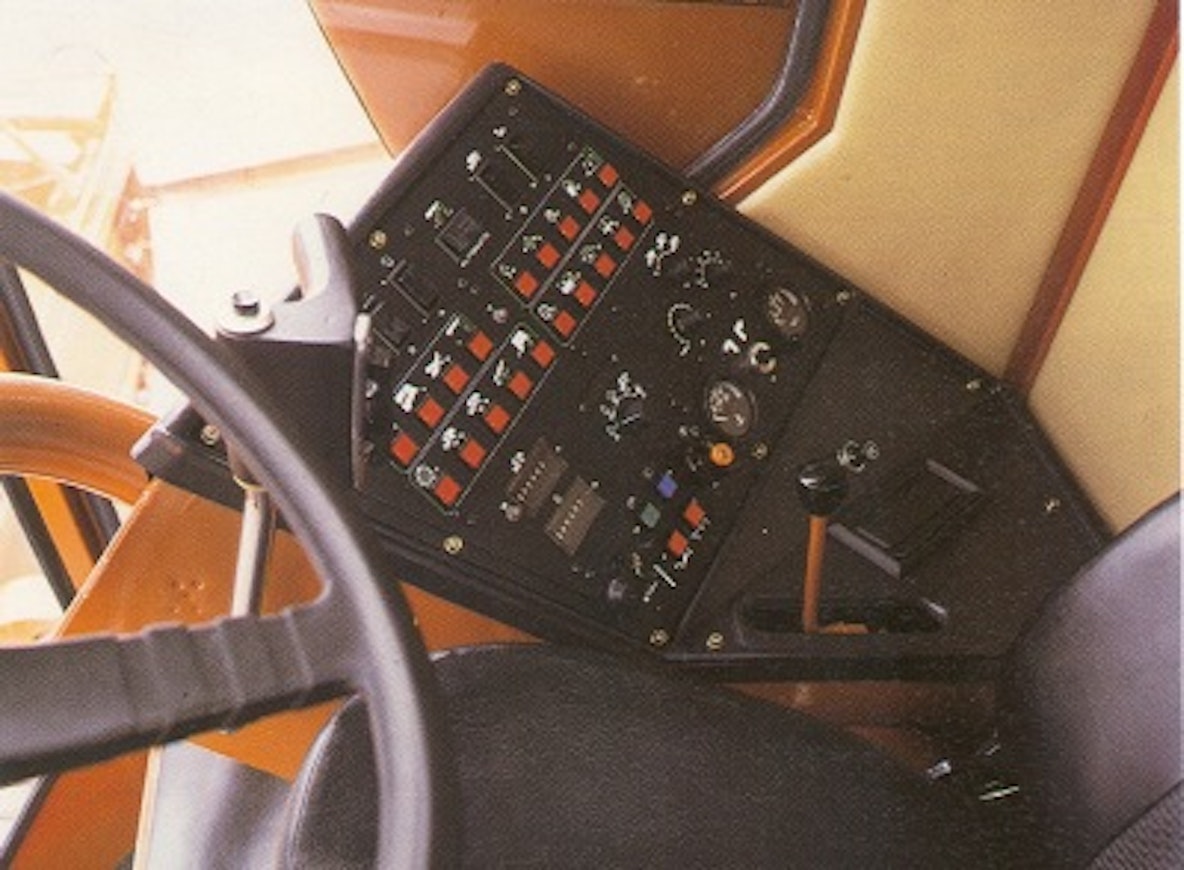

The largest Laverda was the 6-cylinder 3900, the successor to the M182, which had a 12.9-liter 225-horsepower V6 engine. The drive transmission was hydrostatic, and the cab was located to the left of the center line of the combine. Air conditioning and a monitoring system with 19 functions were standard equipment. The controls differed completely from those of the smaller models. In size, the 3900 corresponded to Claas 108.

From the mid-1980s onwards, the brand of the combines was Fiatagri.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelLaverda 3600Laverda 3700Laverda 3900
Imported to FinlandYesYesYes
Years1983-881983-881984-88
EngineIvecoIvecoIveco
Engine type806183618260.02
Displacement5489 cm³8102 cm³12876 cm³
Cyl/turbo66V6
Power135 hp DIN155 hp DIN225 hp DIN
Fuel tank320 l-380 l
Transmissionmech.mech.hydr.
Gears343
Speed min-max.1,8-20,0 km/h1,3-26,1 km/h0-20,0 km/h
Cutting width420 cm420 cm480 cm
Cutting width, alternative360 cm480, 540 cm540, 600 cm
Header length44 cm44 cm44 cm
Threshing cyl. diameter60 cm60 cm60 cm
Threshing cyl. width135 cm135 cm160 cm
Number of straw walkers556
Area of walkers560 dm²560 dm²725 dm²
Total screening area466446551
Overall lenght938 cm938 cm945 cm
Overall width471 cm471 cm532 cm
Width without header300 cm300 cm350 cm
Height without cabin380 cm380 cm-
Weight without cabin8200 kg8880 kg-
Grain tank60 hl60 hl70 hl
Unl. height383 cm383 cm410 cm
Tyres front (Finland)21L3023.1-2628L26
Tyres rear (Finland)11.5-1511.5-1512.5-18
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmentelec.elec.elec.
Threshing cyl. speed adjustmenthydr.hydr.hydr.
Bottom sieveconvertibleconvertibleconvertible
Brakeswet discwet discwet disc
Type of cutting platform floatinggas dampergas dampergas damper
Air conditioning-xx
Height with cabin--404 cm
Weight with cabin--10390 kg
