Siirry sivupalkkiinSiirry alaosaanLaverda M 60 – M 90

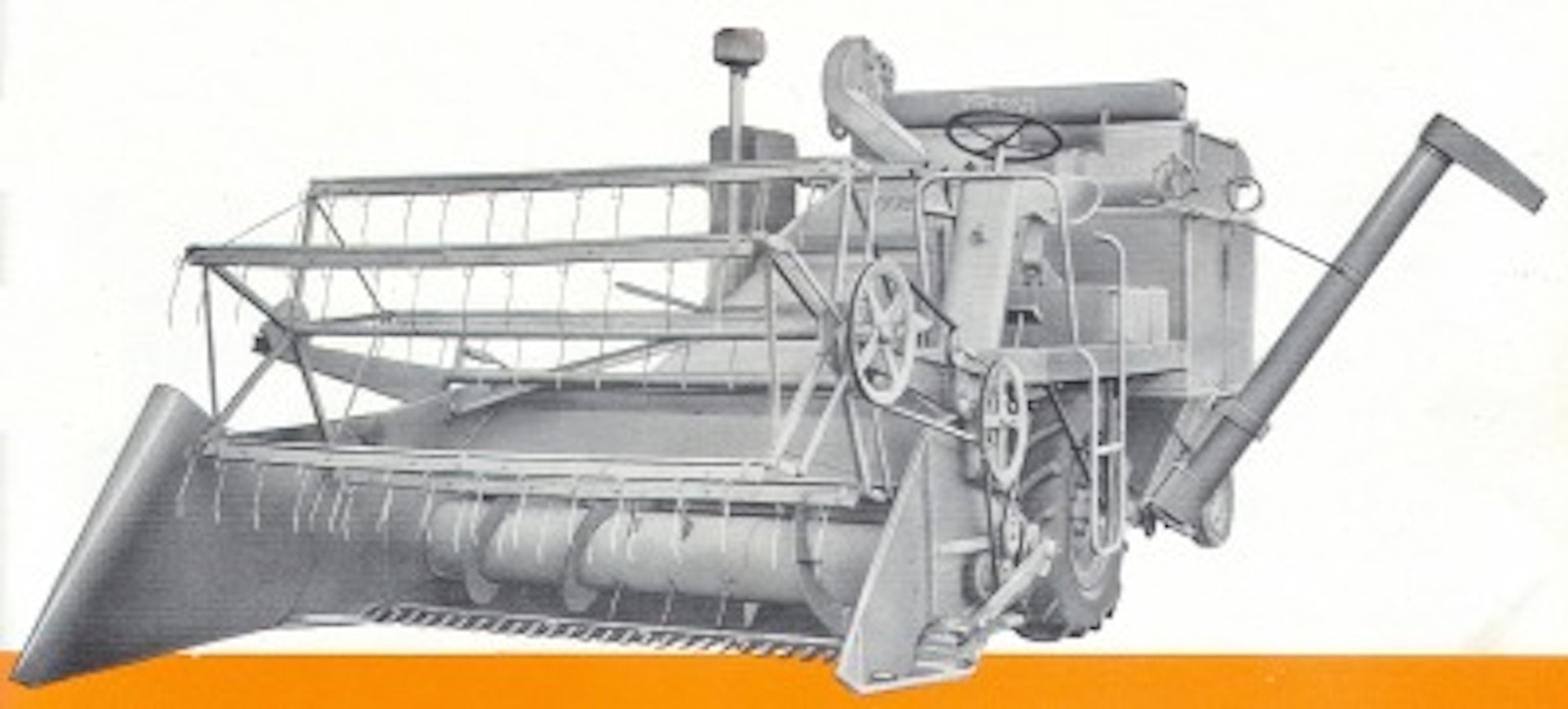

The first Italian combine harvester was the Laverda M 60, introduced in 1956. Laverda had already gained a reputation in export markets with, among other things, its mowers and binders, and the export market for its combine harvesters also got off to a good start. The model number M 60 referred to the width of the threshing drum. The engine was a 1.9-liter Fiat diesel. The structure of the combine had similarities to Massey-Harris machines: for example, the engine was located between the front wheels, and the discharge pipe of the optional grain tank was similar. In the brochure, the combine was depicted with dual wheels.
In the following years, the M 60 was followed by the larger M 90 and the intermediate model M 75. The M 90 had a 61-horsepower OM diesel engine, and the later M 90 B had 66 hp.
This is an automated translation. Please report any issues in the translation.
| Model | Laverda M 60 | Laverda M 75 | Laverda M 90 |
|---|---|---|---|
| Imported to Finland | No | No | No |
| Years | 1956-63 | 1960-65 | 1959-64 |
| Engine | Fiat | Fiat | OM |
| Engine type | 605.010 | 615.050 | CO1 D 45 |
| Displacement | 1901 cm³ | 2270 cm³ | 4156 cm³ |
| Cyl/turbo | 4 | 4 | 4 |
| Power | 30-35 SAE hp DIN | 47 SAE hp DIN | 61-65 SAE hp DIN |
| Transmission | mech. | mech. | mech. |
| Gears | 2 | 2 | 2 |
| Speed min-max. | 1,4-14,45 km/h | 1,4-16,5 km/h | 1,3-14,1 km/h |
| Cutting width | 198 cm | 245 cm | 290 cm |
| Threshing cyl. diameter | 54 cm | 54 cm | 54 cm |
| Threshing cyl. width | 60 cm | 75 cm | 92 cm |
| Number of straw walkers | 3 | 3 | 4 |
| Overall lenght | 575 cm | 670 cm | 775 cm |
| Overall width | 225 cm | 295 cm | 340 cm |
| Height without cabin | 240 cm | 298 cm | 323 cm |
| Tyres front (Finland) | 7.00-24 | 12.4-24 | 14.9-26 |
| Tyres rear (Finland) | 5.00-15 | 5.00-15 | 6.00-16 |
| Reel forward/backw. adjustment | mech. | mech. | mech. |
| Reel speed adjustment | mech. | mech. | mech. |
| Bottom sieve | convertible | convertible | convertible |
| Type of cutting platform floating | spring | spring | spring |
| Cutting width, alternative | - | 225 cm | 360 cm |
| Area of walkers | - | 182 dm² | 260 dm² |
| Lenght of walkers | - | 250 cm | 277 cm |
| Straw shieve | - | 70 dm² | 93 dm² |
| Bottom shieve | - | 74 dm² | 92 dm² |
| Total screening area | - | 158 | 205 |
| Grain tank | - | 9,3/13 hl | 20 hl |
