Siirry sivupalkkiinSiirry alaosaanLaverda M 92 – M 182

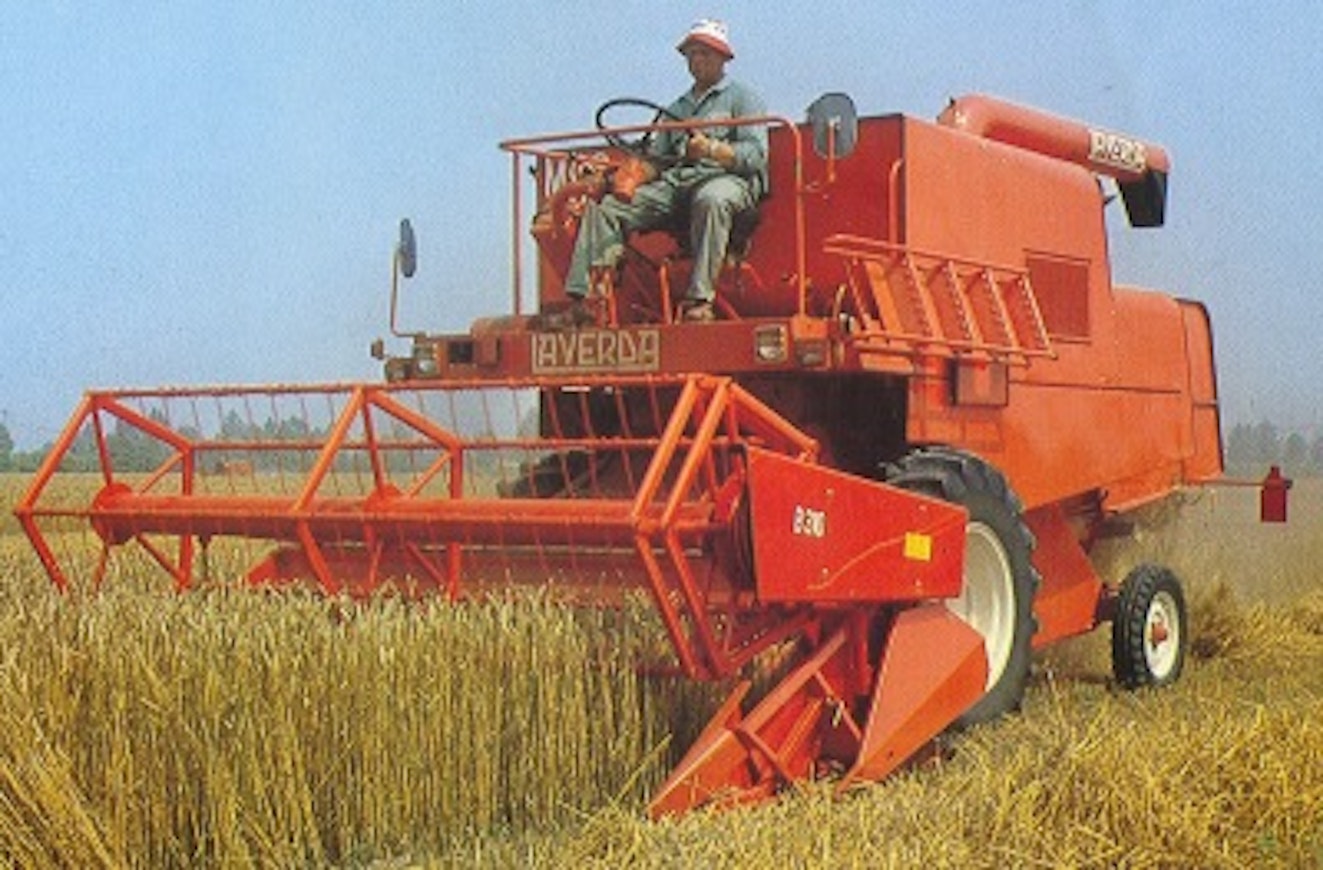

In the new combine harvester series introduced in 1975, there were four models: M 92, M 112, M 132, and M 152. The design was more angular than before, and the unloading chute was now positioned on top of the tank. The smallest 3-rotor model had a 4-cylinder Perkins engine, while the others were equipped with 6-cylinder engines. In addition to Fiat and OM engines, Perkins and Ford engines were also used.
The threshing drum width of the smallest model was increased to 87 cm. The two middle models were 4-rotor with a width of 119 cm, and the M 152 had five rotors. The speeds of the threshing drum and fan could be adjusted mechanically or electrically from the driver's seat. A straw chopper was available as an optional accessory. Models M 112 to M 152 featured a new cutter bar with an oil-bath blade drive. Thanks to this series, Laverda rose to become the number one brand in the Italian market and expanded exports to over 40 countries worldwide. In export countries, Laverda was competitively priced at this stage.

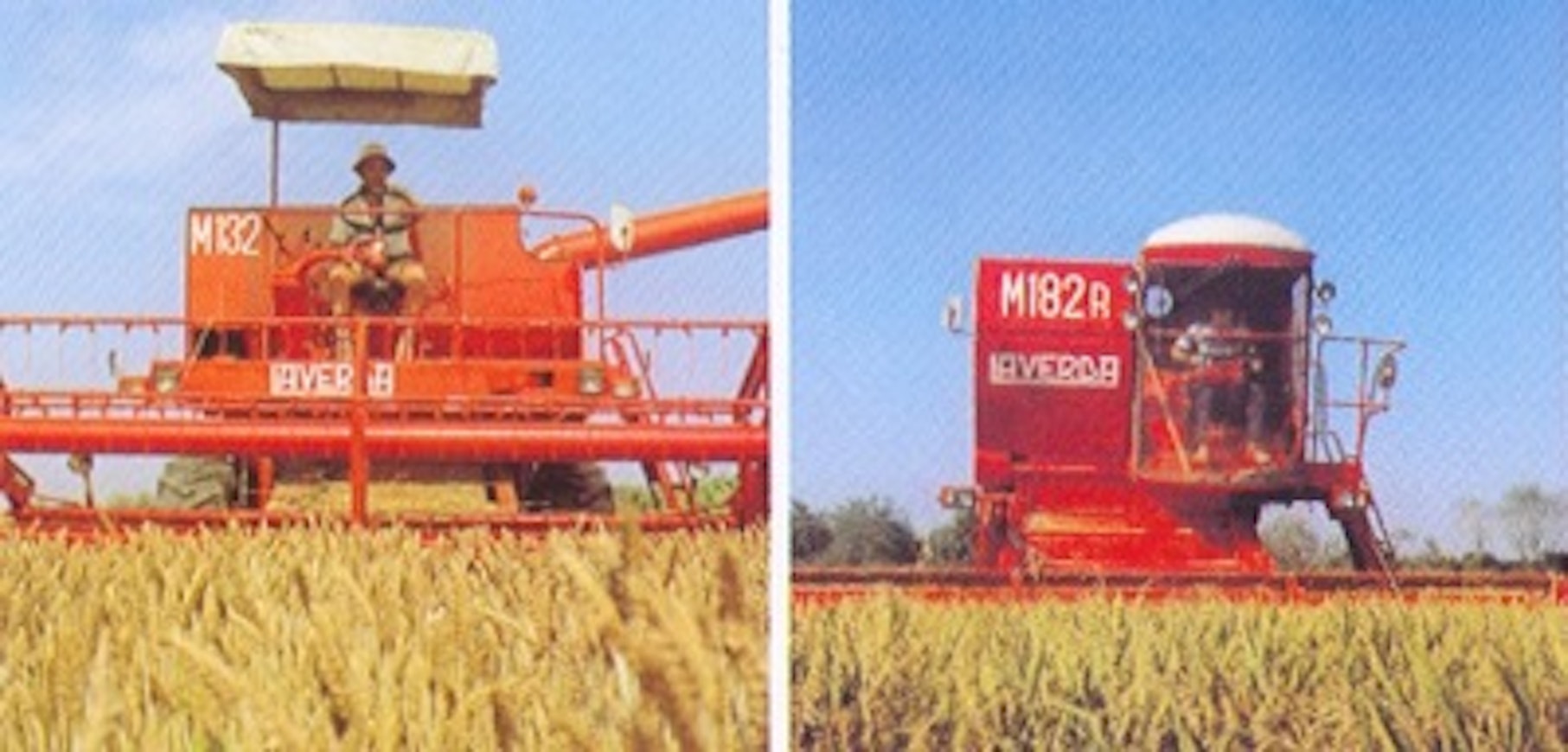

In 1981, the series was complemented by the 6-rotor M 182, which was the first model equipped with electronic monitoring functions. The cutting width ranged from 420 to 660 cm, and the grain tank capacity was 70 hectoliters. The engine was a 225-horsepower Fiat six-cylinder. The M 182 was manufactured in a new factory in Breganze. In the 1980s, medium-sized models were also available with hydrostatic drive.
This is an automated translation. Please report any issues in the translation.
| Model | Laverda M 92 | Laverda M 112 | Laverda M 132 | Laverda M 152 | Laverda M 182 |
|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No |
| Years | 1976-83 | 1976-83 | 1975-83 | 1975-83 | 1981-83 |
| Engine | Perkins | Fiat | Perkins | OM | Fiat |
| Engine type | 4.236 | 8065/8061 | 6.372 | Aifo CP3-1 | 8260 |
| Displacement | 3860 cm³ | 5184/5499 cm³ | 6090 cm³ | 7412 cm³ | 12876 cm³ |
| Cyl/turbo | 4 | 6 | 6T | 6 | V6 |
| Power | 77 hp DIN | 95/98 hp DIN | 117-120 hp DIN | 140 hp DIN | 225 hp DIN |
| Transmission | mech. | mech. | mech. | mech. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,5-21,1 km/h | 1,5-19,8 km/h | 1,7-22,7 km/h | 1,7-21,7 km/h | 0-24,9 km/h |
| Cutting width | 260 cm | 310 cm | 360 cm | 420 cm | 480 cm |
| Cutting width, alternative | 310 cm | 360-420 cm | 420-480 cm | 360-540 cm | 420-660 cm |
| Header length | 44 cm | 44 cm | 44 cm | 44 cm | 44 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 87 cm | 104 cm | 119 cm | 135 cm | 160 cm |
| Number of straw walkers | 3 | 4 | 4 | 5 | 6 |
| Area of walkers | 287 dm² | 386 dm² | 443 dm² | 538 dm² | 725 dm² |
| Bottom shieve | 67 dm² | 124 dm² | 143 dm² | 162 dm² | 268 dm² |
| Total screening area | 198 | 289 | 333 | 379 | 551 |
| Overall lenght | 746/753 cm | 805 cm | 806 cm | 840 cm | - |
| Overall width | 291 cm | 355 cm | 405 cm | 465 cm | - |
| Height without cabin | 291 cm | 318 cm | 324/333 cm | 330/345 cm | - |
| Weight without cabin | 4310 kg | 6200 kg | 6325 kg | 7385 kg | - |
| Grain tank | 18,7/23 hl | 26,5/35 hl | 28/37 hl | 34/42,5 hl | 70 hl |
| Unl. height | 327 cm | 318 cm | 324 cm | 334 cm | 410 cm |
| Tyres front (Finland) | 20-20 | 16.9-26 | 18.4-30 | 18.4-30 | 23.1-26 |
| Tyres rear (Finland) | 8.50-12 | 11.5-15 | 11.5-15 | 11.5-15 | 13.0-18 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | convertible | convertible | convertible | convertible |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Floating cutting platform | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper |
| Fuel tank | - | 245 l | 245 l | 245 l | 380 l |
| Lenght of walkers | - | 356 cm | 356 cm | 379 cm | 453 cm |
| Straw shieve | - | 165 dm² | 190 dm² | 217 dm² | 224 dm² |
| Width without header | - | 297 cm | 297 cm | 300 cm | - |
| Tyres front, alternative | - | 18.4-26 | - | 23.1-26 | - |
| Alternative hp | - | - | Fiat, Ford hp | 130 hp | - |
| Air conditioning | - | - | - | - | x |
| Heating | - | - | - | - | x |
| Grain loss indicator | - | - | - | - | x |
