Siirry sivupalkkiinSiirry alaosaanLaverda M 84 – M 150

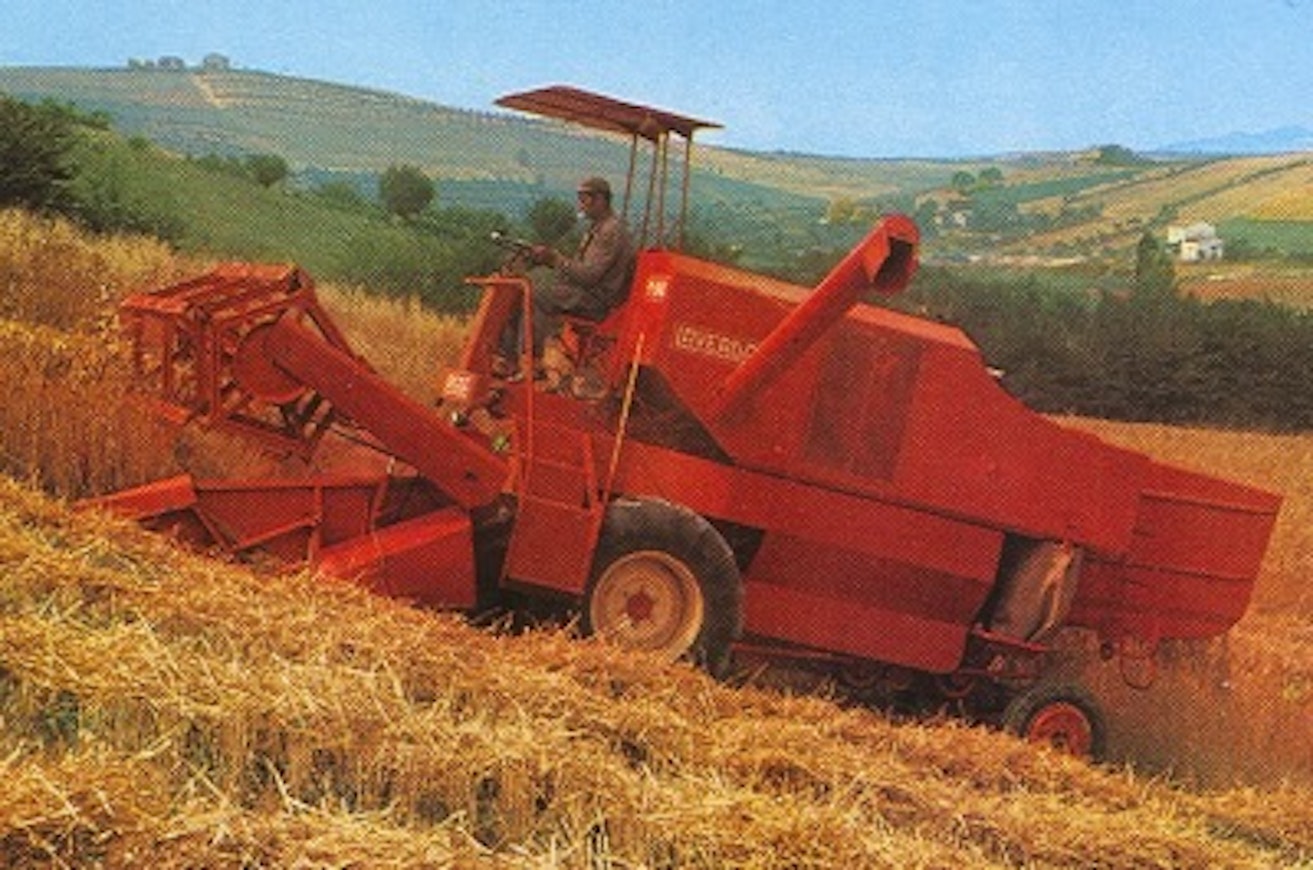

The first model of Pietro Laverda's new generation combine harvester lineup was the M 120, introduced in 1963. The lineup soon expanded with a smaller model, the M 84, and a couple of years later with the M 100. The engines were 4- and 6-cylinder models from Perkins and OM. The exterior design bore the signature of industrial designer Nizzoli.
The speeds of the threshing drum and blower were mechanically adjustable from the driver's seat. A straw chopper was available as an optional extra. The width of the concaves in the M 84 was 87 cm, even though the threshing drum was only 73 cm wide.
The M 100 AL (second small picture), introduced in 1971, was the world's first combine harvester with a threshing mechanism that remained level both in width and length directions. At the same time, the top model in the lineup, the 5-apron M 150, was introduced, powered by a 6.1-liter Perkins engine and a 7.4-liter OM engine. The M 150 was also available with hydrostatic transmission. A parallel model of the M 120 equipped with crawler tracks was called the M 120 R.
In Sweden, Laverda was sold as Dronningborg-Laverda, in Britain as Bamford-Laverda, and in France as Someca.
This is an automated translation. Please report any issues in the translation.
| Model | Laverda M 84 | Laverda M 100 | Laverda M 120 | Laverda M 150 |
|---|---|---|---|---|
| Imported to Finland | No | No | No | No |
| Years | 1965-76 | 1967-76 | 1963-75 | 1971-75 |
| Engine | Perkins | Perkins | Perkins | Perkins |
| Engine type | 4.236 | 4.236 | 6.354 | 6.372 |
| Displacement | 3860 cm³ | 3860 cm³ | 5800 cm³ | 6090 cm³ |
| Cyl/turbo | 4 | 4 | 6 | 6 |
| Power | 75 SAE hp DIN | 87 SAE hp DIN | 105 SAE hp DIN | 124 SAE hp DIN |
| Fuel tank | 95 l | - | 120 l | - |
| Transmission | mech. | mech. | mech. | mech. (hydr.) |
| Gears | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,4-18,5 km/h | 1,3-22,5 km/h | 1,3-23,0 km/h | 1,4-18,5 km/h |
| Cutting width | 260 cm | 260 cm | 360/420 cm | 420 cm |
| Header length | 44 cm | - | - | - |
| Threshing cyl. diameter | 56 cm | 56 cm | 56 cm | 60 cm |
| Threshing cyl. width | 73 cm | 86 cm | 119 cm | 135 cm |
| Number of straw walkers | 3 | 4 | 4 | 5 |
| Area of walkers | 260 dm² | 379 dm² | 439 dm² | 538 dm² |
| Lenght of walkers | 300 cm | 362 cm | 350 cm | 379 cm |
| Total screening area | 170 | - | 316 | 510 |
| Overall lenght | 745 cm | 800 cm | 825 cm | 841 cm |
| Overall width | 298 cm | 299 cm | 406/457 cm | 465 cm |
| Height without cabin | 280 cm | 280 cm | 290 cm | 307 cm |
| Weight without cabin | 3530 kg | 4720 kg | 6250 kg | 7270 kg |
| Grain tank | 17 hl | 20 hl | 25 hl | 33 hl |
| Tyres front (Finland) | 14.9-24 | 16.9-26 | 18.4-26 | 18.4-30 |
| Tyres rear (Finland) | 8.50-12 | 6.50-16 | 7.50-16 | 11.5-15 |
| Reel forward/backw. adjustment | mech. | hydr. | hydr. | hydr. |
| Reel speed adjustment | mech. | mech. | mech. | hydr. |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | convertible | convertible | convertible |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper |
| Alternative hp | - | OM 2D 60 hp | 118 SAE OM CP3 hp | 140 OM CP3-1 hp |
| Cutting width, alternative | - | 310-360 cm | 310 cm | 480-540 cm |
| Unl. height | - | 260 cm | 305 cm | 334 cm |
| Straw shieve | - | - | 121 dm² | - |
| Bottom shieve | - | - | 121 dm² | - |
| Tyres rear, alternative | - | - | 11.5-15 | - |
| Width without header | - | - | - | 302 cm |
| Tyres front, alternative | - | - | - | 23.1-26 |
