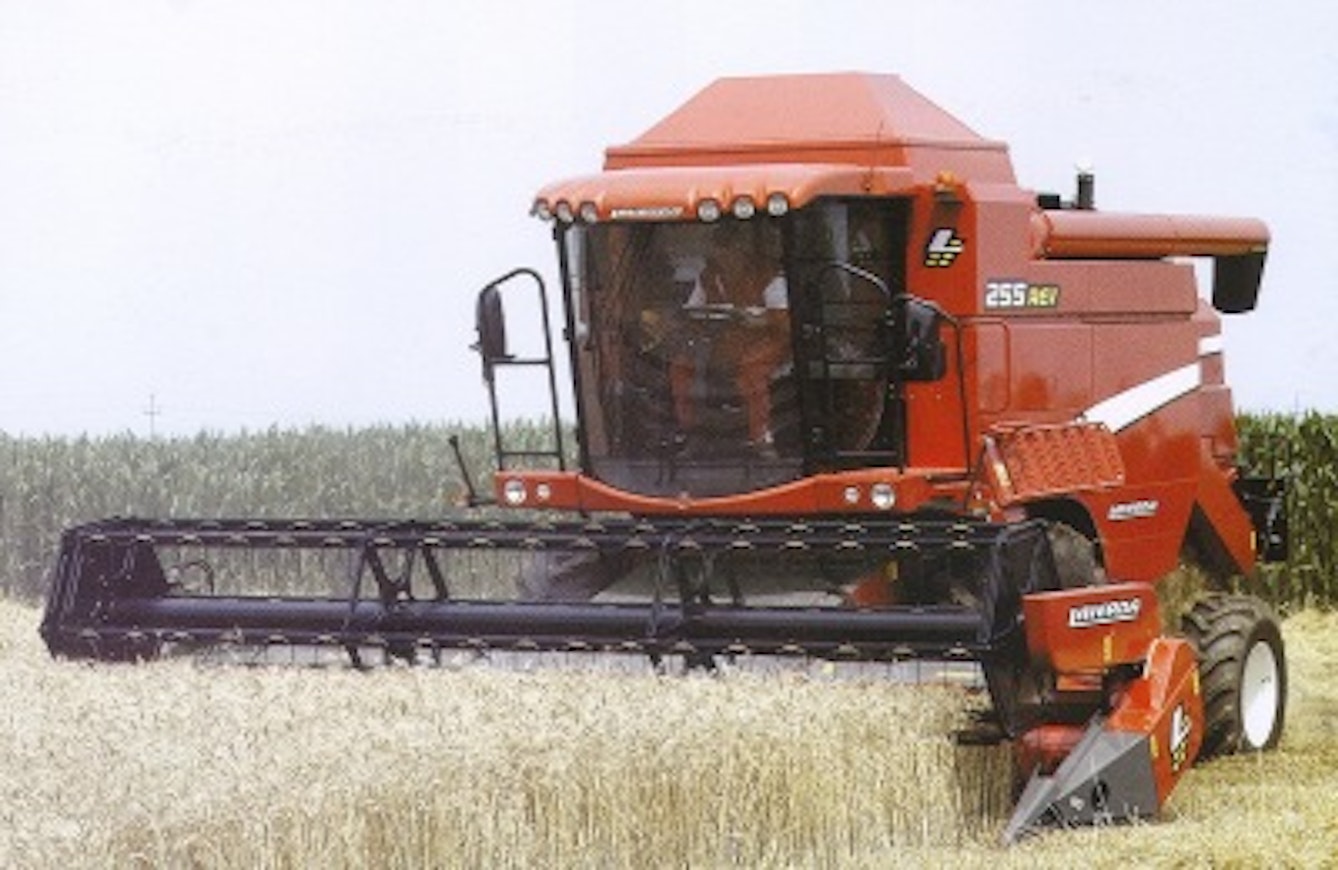

Siirry sivupalkkiinSiirry alaosaanLaverda 225 REV – 256 REV




At the end of 2004, Laverda introduced a cheaper REV series alongside the new M series, which had abandoned the MCS threshing drum that Laverda had long used. Instead, it featured a small REV drum, which was said to increase separation efficiency by 20%. The lineup included two 5-rib models and one 6-rib model. The design was considerably more traditional than the M series, both externally and in the cab.
Unlike the M series, all models were equipped with Iveco Common Rail diesel engines. The transmission had only three speed ranges. Laverda's traditionally used wooden bearings for the rasp bars were replaced with "self-lubricating strips." The standard equipment was nearly as comprehensive as in Laverda's more expensive series. For example, almost all adjustments were made electronically from the cab.
The lineup was also sold under the MF Activa and Fendt E series names.
This is an automated translation. Please report any issues in the translation.
| Model | Laverda 225 REV | Laverda 255 REV | Laverda 256 REV | Laverda 225 REV | Laverda 255 REV | Laverda 256 REV |
|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No |
| Years | 2004-08 | 2004-08 | 2004-08 | 2008-11 | 2008-11 | 2008-11 |
| Engine | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco |
| Engine type | NEF | NEF | NEF | NEF | NEF | NEF |
| Displacement | 5861 cm³ | 5861 cm³ | 5861 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Cyl/turbo | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Power | 220 ISO hp DIN | 255 ISO hp DIN | 255 ISO hp DIN | 225 ISO hp DIN | 245 ISO hp DIN | 245 ISO hp DIN |
| Fuel tank | 450 l | 450 l | 450 l | 450 l | 450 l | 450 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Cutting width | 480 cm | 540 cm | 600 cm | 480 cm | 540 cm | 600 cm |
| Cutting width, alternative | 420-600 cm | 480-660 cm | 480-660 cm | 420-6660 cm | 420-660 cm | 420-660 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 134 cm | 134 cm | 160 cm | 134 cm | 134 cm | 160 cm |
| Number of straw walkers | 5 | 5 | 6 | 5 | 5 | 6 |
| Area of walkers | 573 dm² | 573 dm² | 681 dm² | 573 dm² | 573 dm² | 681 dm² |
| Lenght of walkers | 426 cm | 426 cm | 426 cm | 426 cm | 426 cm | 426 cm |
| Straw shieve | 263 dm² | 263 dm² | 276 dm² | 263 dm² | 263 dm² | 276 dm² |
| Bottom shieve | 204 dm² | 204 dm² | 244 dm² | 204 dm² | 204 dm² | 244 dm² |
| Total screening area | 467 | 467 | 558 | 467 | 467 | 558 |
| Width without header | 320 cm | 330 cm | 350 cm | 320 cm | 330 cm | 350 cm |
| Height with cabin | 400 cm | 400 cm | 400 cm | 400 cm | 400 cm | 400 cm |
| Weight without header | 10100 kg | 10300 kg | 11400 kg | 10800 kg | 10800 kg | 11900 kg |
| Grain tank | 70 hl | 70 hl | 75 hl | 70 hl | 70 hl | 75 hl |
| Unl. height | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm |
| Tyres front (Finland) | 650/75R30 | 650/75R32 | 650/75R32 | 650/75R30 | 650/75R32 | 650/75R32 |
| Tyres front, alternative | 650/75R32 | 800/65R32 | 800/65R32 | 650/75R32 | 800/65R32 | 800/65R32 |
| Tyres rear (Finland) | 16.0/70-20 | 460/70R24 | 460/70R24 | 16.0/70-20 | 460/70R24 | 460/70R24 |
| Tyres rear, alternative | 460/70R24 | - | - | 460/70R24 | - | - |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. |
