Fiatagri / New Holland L 517 – L 525

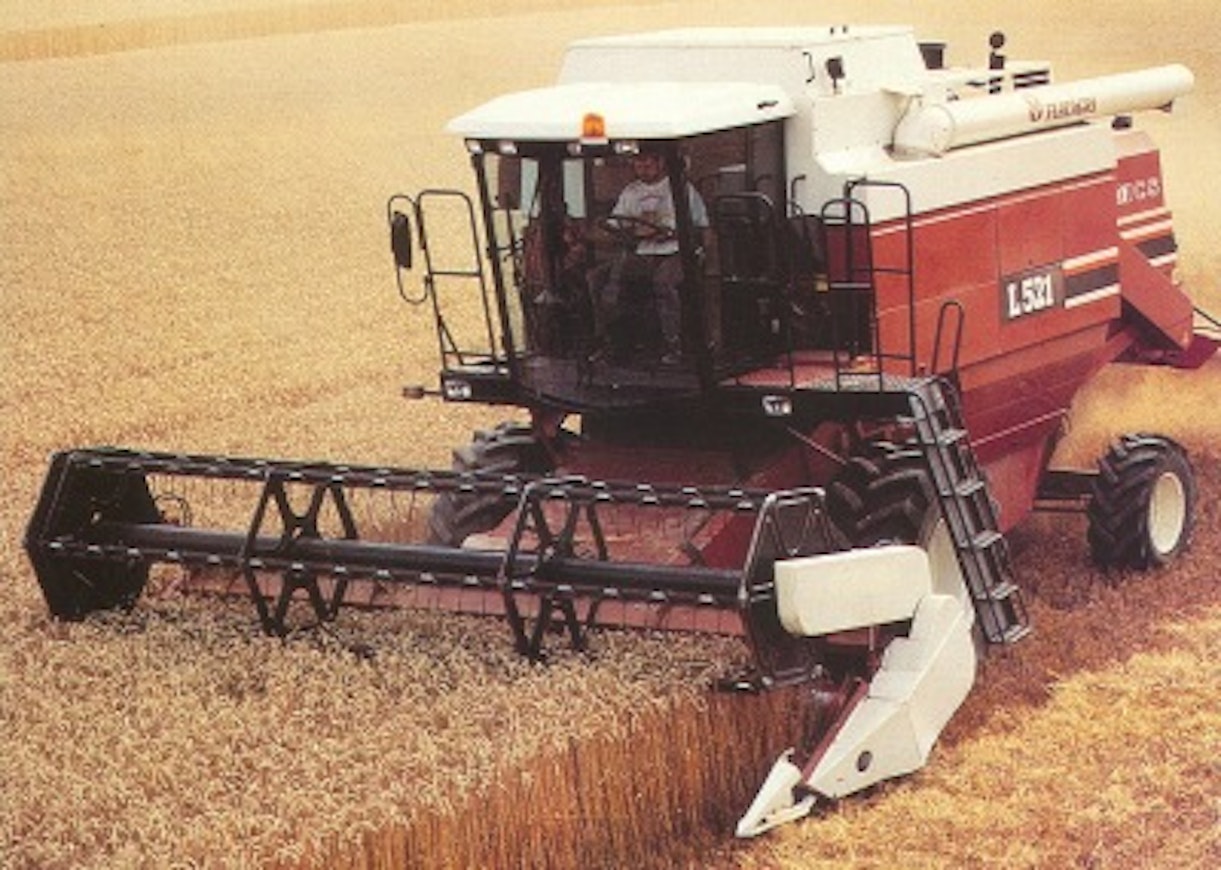

92FiatagriL521
92FiatagriL521ohjaamo

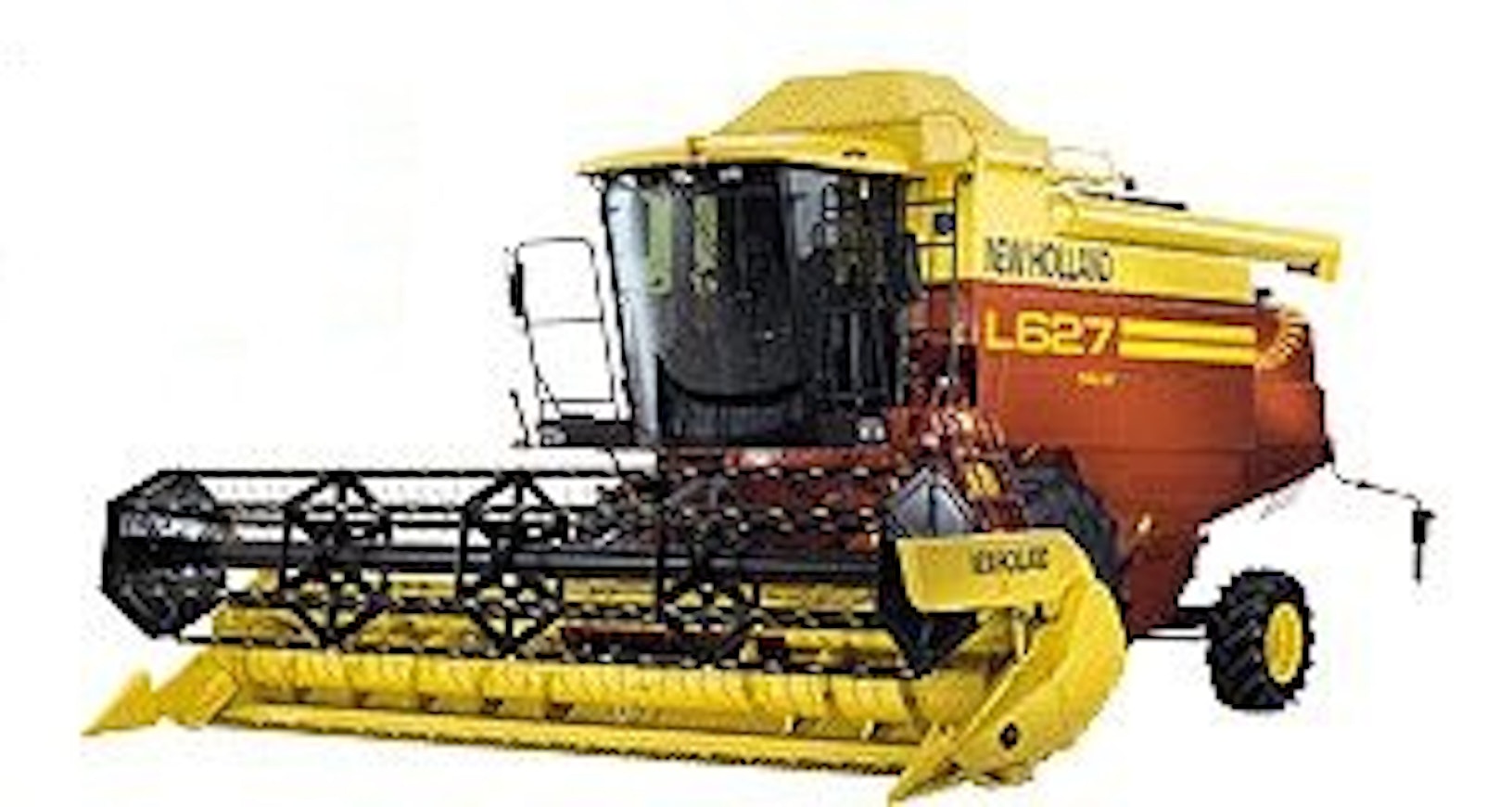

99NHL627MCS
92FiatagriL521
92FiatagriL521ohjaamo
99NHL627MCS
Manufacturer
Models
Fiatagri L 517 (MCS), Fiatagri L 521 MCS, Fiatagri L 524 MCS, New Holland L 518, New Holland L 520 MCS, New Holland L 523 MCS, New Holland L 525 MCS
Years
1992-97
Info

Here is the translation of the provided text into English:


In the L series introduced in 1992, the four-walker models were initially dropped. Models L413, L416, L516, and AL519 Collina, which was a hillside version, were produced between 1995-96. Cutting widths in the smaller models ranged from 305 to 518 cm.

The smallest model in the five-walker series now had an engine power of 168 horsepower, and it was also the only model available with a mechanical drive and without the MCS (Multi Crop Separator) after-threshing rotor.

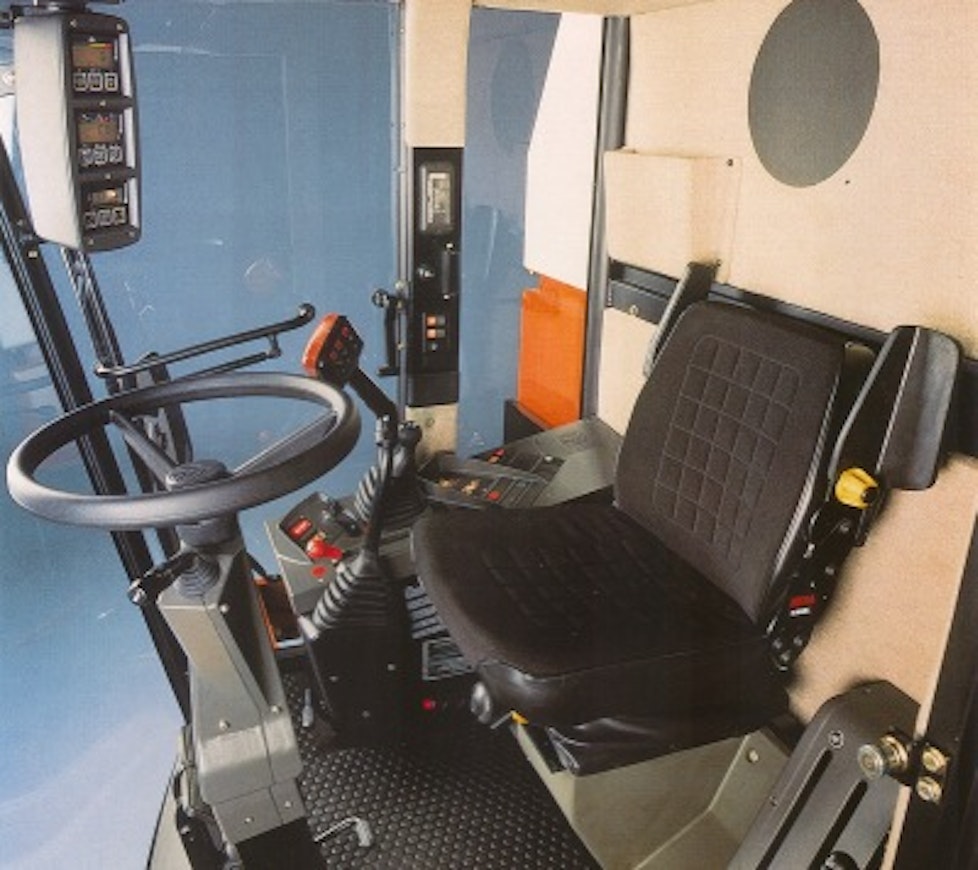

The grain tank volume was at minimum the same 6000 liters as before. The seed sieve was now adjustable, and the sieve area relative to the walkers was slightly larger than previously. The cab structure remained essentially the same, but more monitoring functions were gathered into the Agritronic monitor on the front pillar, which was also an optional feature on the L517. The noise level was reported as 79 dB.

Standard equipment was extensive: air conditioning was standard, and except for the smallest model, the header automatically followed the field surface. The L524 also featured a standard 20-degree tilt on the cutting header. An Integrale parallel model of the L521 was available, where the threshing mechanism was leveled horizontally both lengthwise and widthwise using cylinders on the rear axle. Additionally, the lineup included the 3550 AL and later the 3560 AL, where longitudinal tilt could be as much as 30 degrees and lateral tilt 40 degrees.

When the brand changed to New Holland, the color scheme partially shifted to light yellow in line with its Belgian counterparts, and the model range was renewed. Engine powers were higher than before, and the grain tank increased to 7000 liters in all models. The smallest model was now hydrostatically driven but still without the MCS after-threshing device. Power ratings were now reported according to the ISO TR 14396 standard in New Holland style.


This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiatagri L 517 (MCS)Fiatagri L 521 MCSFiatagri L 524 MCSNew Holland L 518New Holland L 520 MCSNew Holland L 523 MCSNew Holland L 525 MCS
Imported to FinlandNoNoNoNoNoNoNo
Years1992-971992-971994-971997-20001997-20001997-20001997-2000
EngineIvecoIvecoIvecoIvecoIvecoIvecoIveco
Engine type8061 SI 10806183618061 SRE 108061 SRE 108361 SRE 108361 SRI 10
Displacement5861 cm³5861 cm³8102 cm³5861 cm³5861 cm³8102 cm³8102 cm³
Cyl/turbo6T6T6T6T6T6T6T
Power168 hp DIN205 hp DIN240 hp DIN196 ISO hp DIN196 ISO hp DIN235 ISO hp DIN250 ISO hp DIN
Fuel tank350 l450 l450 l350 l350 l450 l450 l
Transmissionmech./hydr.hydr.hydr.hydr.mech./hydr.hydr.hydr.
Gears4444444
Speed min-max.0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h
Cutting width420 cm540 cm540 cm420 cm420 cm540 cm540 cm
Cutting width, alternative390-480 cm420-600 cm420-600 cm390-480 cm390-480 cm390-600 cm390-600 cm
Threshing cyl. diameter60 cm60 cm60 cm60 cm60 cm60 cm60 cm
2. cyl. diameter-/60 cm60 cm60 cm-60 cm60 cm60 cm
Threshing cyl. width134 cm134 cm134 cm134 cm134 cm134 cm134 cm
Number of straw walkers5555555
Area of walkers573 dm²573 dm²573 dm²573 dm²573 dm²573 dm²573 dm²
Lenght of walkers426 cm426 cm426 cm426 cm426 cm426 cm426 cm
Straw shieve289 dm²289 dm²289 dm²289 dm²289 dm²289 dm²289 dm²
Bottom shieve204 dm²204 dm²204 dm²204 dm²204 dm²204 dm²204 dm²
Total screening area476476476476476476476
Overall lenght765+pöytä cm765+pöytä cm765+pöytä cm803+pöytä cm803+pöytä cm803+pöytä cm803+pöytä cm
Width without header300 cm300 cm300 cm320 cm320 cm320 cm320 cm
Height with cabin395 cm395 cm395 cm390 cm390 cm390 cm390 cm
Weight without header9650 kg9900 kg9900 kg9300 kg9650 kg9900 kg9900 kg
Grain tank60 hl65 hl65 hl70 hl70 hl70 hl70 hl
Unl. height406 cm406 cm406 cm407 cm407 cm407 cm427 cm
Tyres front (Finland)20.8-3420.8-3420.8-3420.8-3420.8-3420.8-3420.8-34
Tyres front, alternative650/75R32650/75R32650/75R32650/75R32650/75R32650/75R32650/75R32
Tyres rear (Finland)16.0/70-2016.0/70-2016.0/70-2012.5-1812.5-1812.5-1812.5-18
Tyres rear, alternative12.5-1812.5-1812.5-1816.0/70-2016.0/70-2016.0/70-2016.0/70-20
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.hydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.hydr.hydr.hydr.hydr.
Threshing cyl. speed adjustmenthydr.hydr.hydr.hydr.hydr.hydr.hydr.
Bottom sieveadj.adj.adj.adj.adj.adj.adj.
Brakeswet discwet discwet discwet discwet discwet discwet disc
Reverserxxxxxxx
Air conditioningxxxxxxx
Heatingxxxxxxx
Grain loss indicatorxxxxxxx
Floating cutting platform-/Xxx-xxx
Autom. control of cutting height-/Xxx-xxx
Slope levellingopt.opt.-opt.opt.opt.opt.
Cutting platform lateral tiltopt.opt.xopt.opt.opt.x
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas dampergas damper
Alternative hp-8102 cm3 hp----235 ISO hp
