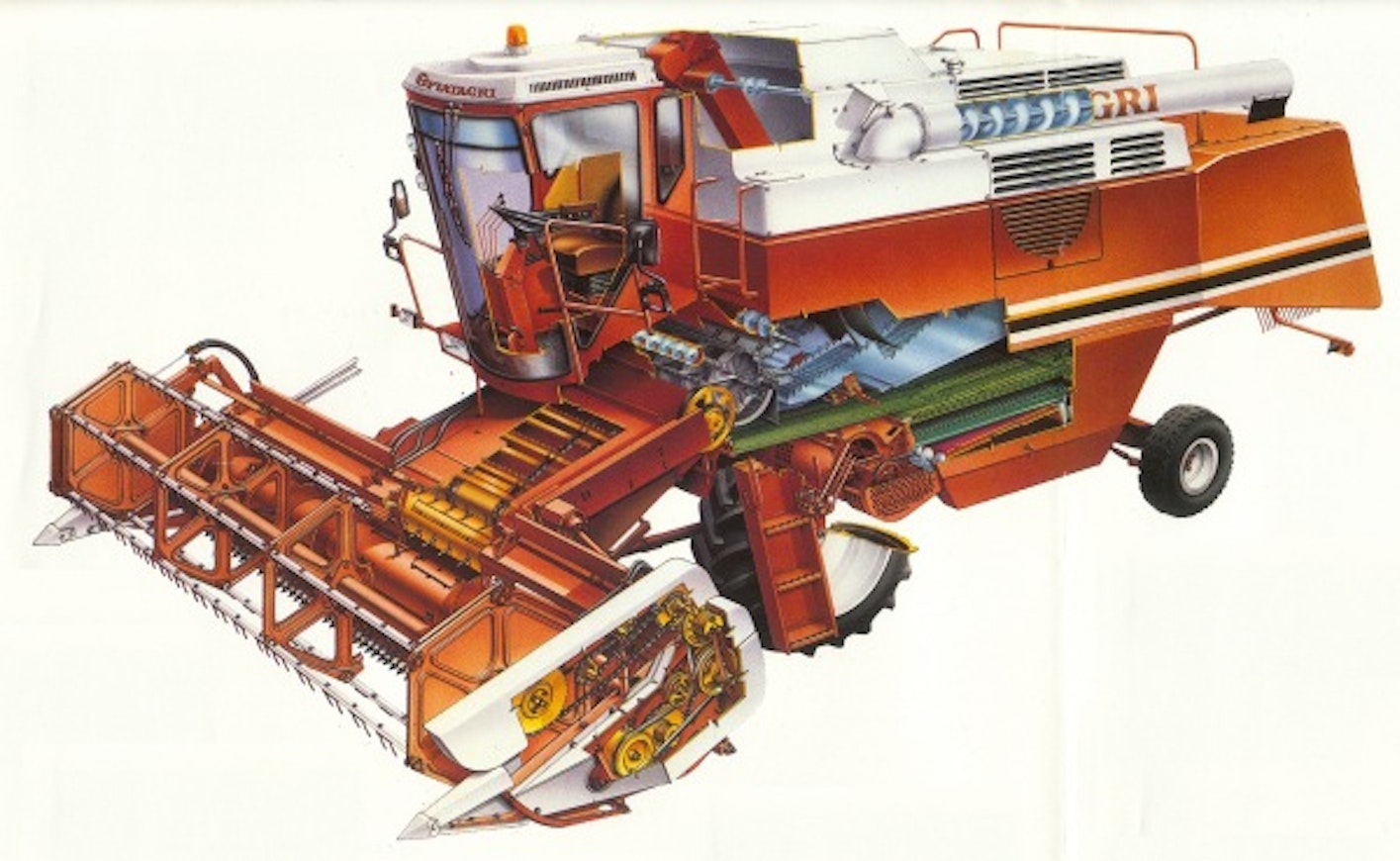

In the revised 3000 series, there were three models with five cylinders. The 3650 and 3750 had 5.9-liter engines, and the hydrostatic drive 3790 had an 8.1-liter engine. The cutting platforms were of the new E model, in which all adjustments were hydraulic, and the feed fingers extended across the entire width of the feed drum. Except for the 3650, there was a transport drum behind the cutting platform in front of the straw walker conveyor. The 3750 and 3790 had threshing drum monitoring as standard, and the 3790 (later also the 3750) additionally had area measurement. In 1988, a new panoramic cab was introduced, colored black, in which the monitoring functions were placed in a "satellite" at the end of an arm.

This is an automated translation. Please report any issues in the translation.

Fiatagri 3650

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

Fiatagri 3750

Fiatagri 3790

Fiatagri 3650-3790

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Fiatagri 3650	Fiatagri 3750	Fiatagri 3790
Imported to Finland	No	No	No
Years	1985-92	1985-92	1985-92
Engine	Iveco	Iveco	Iveco
Engine type	8061	8061	8361-SI 10
Displacement	5861 cm³	5861 cm³	8102 cm³
Cyl/turbo	6T	6T	6T
Power	135 hp DIN	155 hp DIN	175 hp DIN
Fuel tank	320 l	320 l	320 l
Transmission	mech.	mech.	hydr.
Gears	3	3	4
Speed min-max.	1,7-20,0 km/h	1,8-20,0 km/h	0-25,6 km/h
Cutting width	420 cm	480 cm	480 cm
Cutting width, alternative	360, 390 cm	390, 420 cm	360-760 cm
Reel diameter	130 cm	130 cm	130 cm
Header length	44 cm	44 cm	44 cm
Threshing cyl. diameter	60 cm	60 cm	60 cm
Threshing cyl. width	135 cm	135 cm	135 cm
Number of straw walkers	5	5	5
Area of walkers	609 dm²	609 dm²	609 dm²
Lenght of walkers	453 cm	453 cm	453 cm
Total screening area	456	456	456
Overall lenght	962 cm	962 cm	962 cm
Width without header	300 cm	300 cm	321 cm
Height without cabin	368 cm	-	-
Height with cabin	383/390 cm	383/390 cm	383/390 cm
Weight with cabin	8660 kg	8945 kg	9575 kg
Grain tank	60 hl	60 hl	60 hl
Unl. height	400 cm	400 cm	400 cm
Tyres front (Finland)	18.4-30	21L30	23.1-26
Tyres front, alternative	21L-30	23.1-30	23.1-30
Tyres rear (Finland)	11.5-15	11.5-15	13.0/65-18
Reel forward/backw. adjustment	hydr.	hydr.	hydr.
Reel speed adjustment	hydr.	hydr.	hydr.
Threshing cyl. speed adjustment	hydr.	hydr.	hydr.
Bottom sieve	convertible	convertible	convertible
Brakes	wet disc	wet disc	wet disc
Reverser	x	x	x
Heating	x	x	x
Type of cutting platform floating	gas damper	gas damper	gas damper
Tyres rear, alternative	-	13.0/65-18	-
Grain loss indicator	-	x	x
Air conditioning	-	-	x
