Fiatagri 3400-3550

88Fiatagri3550
88Fiatagri3550ohjaamo
88Fiatagri3550
88Fiatagri3550ohjaamo
Manufacturer
Models
Fiatagri 3400, Fiatagri 3500, Fiatagri 3550
Years
1985-92
Info

Here is the translation of the text into English:

In the second generation of the 3000 series, the old technology-based 3-bar small model was discontinued, and the width of the smallest models' threshing mechanism was narrowed to 108 cm. All models had 6-cylinder engines. The 3400 and 3500 featured mechanical drive transmission, while the 3550 had a hydraulic one. Otherwise, the differences between the three smallest models were minor. The coloring differed from the larger models, whose upper part was white and the rounded rear had an inclined design reminiscent of older Laverdas.

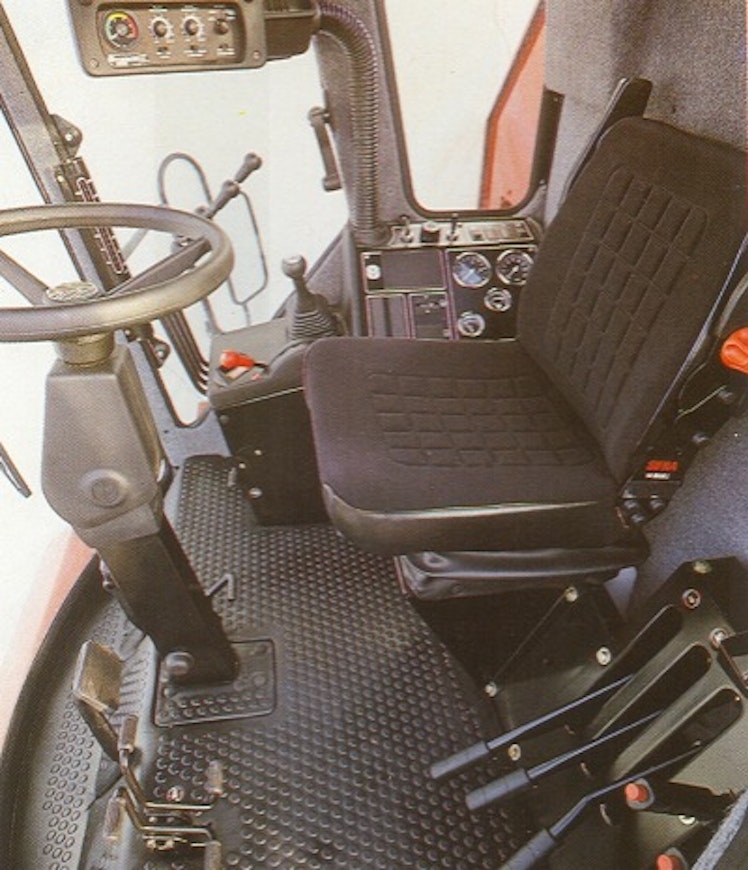

All adjustments of the cutting table were now hydraulic, and reverse rotation was standard. Traditional Laverda features included a transport drum in front of the straw walker, foot pedals to control driving speed and the unloading auger speed, and a separate front and rear threshing gap. The unloading pipe was hydraulically rotatable. In the new cab, the controls had been updated compared to previous models, and the instrument cluster was located at the back of the side panel. The AL version of the 3550 had adjustable longitudinal tilt from -10 to +30%.

About twenty Fiatagri 3500 and 3550 combines were imported into Finland in 1990-1991.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiatagri 3400Fiatagri 3500Fiatagri 3550
Imported to FinlandNoYesYes
Years1987-901985-921986-92
EngineIvecoIvecoIveco
Engine type806180618061-S1
Displacement5861 cm³5861 cm³5861 cm³
Cyl/turbo666T
Power100 hp DIN115 hp DIN130 hp DIN
Fuel tank260 l260 l260 l
Transmissionmech.mech.hydr.
Gears333
Speed min-max.1,7-23,0 km/h1,7-23,0 km/h0-23,0 km/h
Cutting width360 cm360 cm420 cm
Cutting width, alternative310 cm390, 420 cm360, 390 cm
Reel diameter130 cm130 cm130 cm
Header length44 cm44 cm44 cm
Threshing cyl. diameter60 cm60 cm60 cm
Threshing cyl. width108 cm108 cm108 cm
Number of straw walkers444
Area of walkers436 dm²436 dm²436 dm²
Lenght of walkers404 cm404 cm404 cm
Straw shieve191 dm²191 dm²191 dm²
Bottom shieve134 dm²134 dm²134 dm²
Total screening area357357357
Overall lenght910 cm910 cm910 cm
Overall width410 cm410 cm440 cm
Width without header292 cm292 cm292 cm
Height without cabin350 cm--
Height with cabin378 cm378 cm378 cm
Weight with cabin7100 kg7450 kg7550 kg
Grain tank41.8 hl41.8 hl41.8 hl
Unl. height360 cm360 cm360 cm
Tyres front (Finland)18.4-3028-2628-26
Tyres rear (Finland)11.5-1513-1813-18
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.
Threshing cyl. speed adjustmentadj, in cabinadj, in cabinadj, in cabin
Bottom sieveconvertibleconvertibleconvertible
Brakeswet discwet discwet disc
Reverserxxx
Heatingxxx
Type of cutting platform floatinggas dampergas dampergas damper
Tyres front, alternative-18.4-3018.4-30
Tyres rear, alternative-11.5-1511.5-15
