In the autumn of 2013, John Deere announced a cooperation agreement with Sampo Rosenlew with the aim of finding a successor to the Brazil-built CWS combines, which were not adapted to Europe’s emission requirements. The Comia 10 appeared in JD’s colors under the designation W440 on European markets outside the Nordics. John Deere calls the Agco Power engine “Sisu Diesel.” There is also a two-rotor combine equivalent to the Comia 12, featuring an enclosed discharge auger and a larger grain tank, but it too is powered by the Comia 10’s 238-horsepower engine.

A year later, the Comia 8 was also launched, designated W330.

Save.

This is an automated translation. Please report any issues in the translation.

John Deere W330 PTC

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

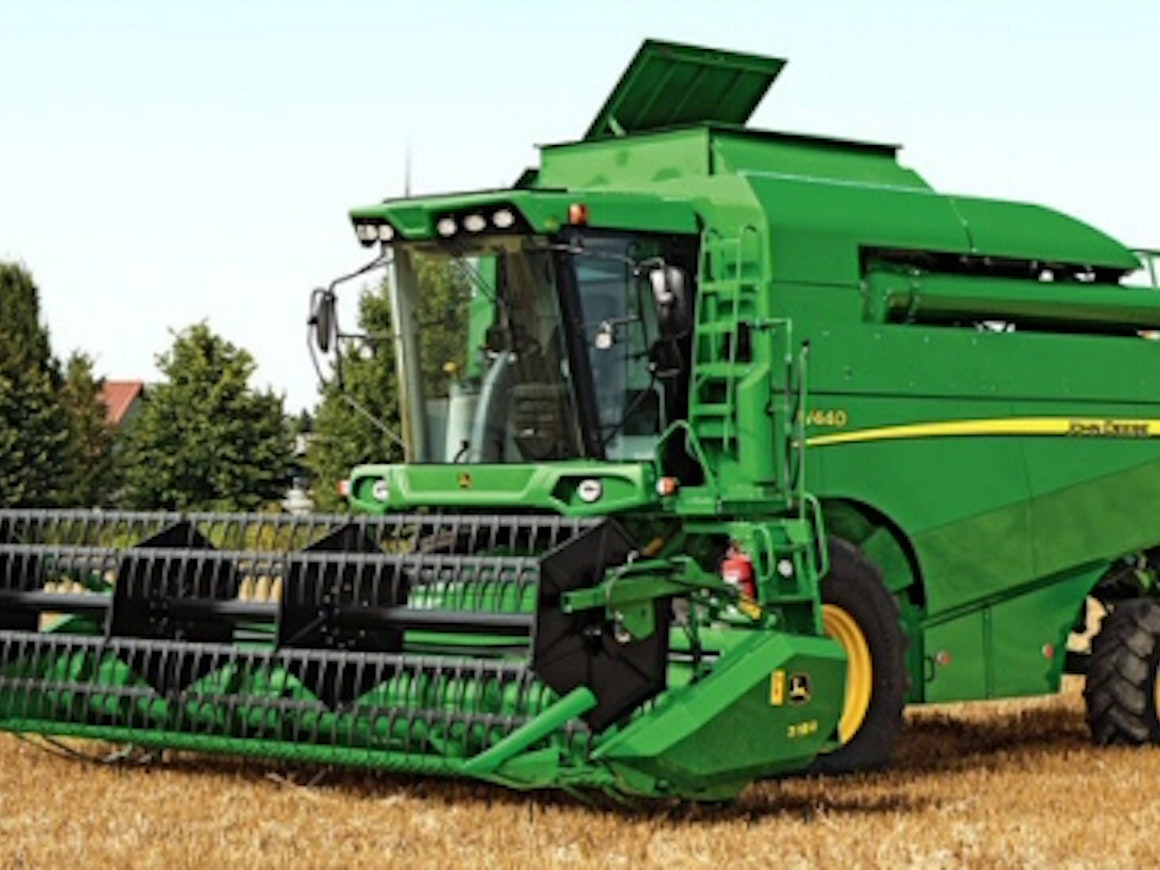

John Deere W440

John Deere W440 PTC

John Deere W330 – W440

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere W330 PTC	John Deere W440	John Deere W440 PTC
Imported to Finland	Yes	No	No
Years	2015-	2014-	2014-
Engine	SisuDiesel	SisuDiesel	SisuDiesel
Engine type	66 AWI	74 AWF	74 AWF
Displacement	6600 cm³	7400 cm³	7400 cm³
Cyl/turbo	6 TI	6 TI	6 TI
Power	-	-	-
Fuel tank	350+AB30 l	450+AB60 l	450+AB60 l
Transmission	hydr.	hydr.	hydr.
Gears	3	3	3
Speed min-max.	0-25 km/h	0-25 km/h	0-25 km/h
Cutting width	450 cm	510 cm	510 cm
Cutting width, alternative	390-510 cm	450-630 cm	450-630 cm
Reel diameter	105 cm	105 cm	105 cm
Header length	51 cm	51 cm	51 cm
Threshing cyl. diameter	50 cm	50 cm	50 cm
2. cyl. diameter	40 cm	-	40 cm
Threshing cyl. width	111 cm	133 cm	133 cm
Number of straw walkers	5	6	6
Area of walkers	480 dm²	630 dm²	630 dm²
Lenght of walkers	410 cm	417 cm	417 cm
Straw shieve	207 dm²	290 dm²	290 dm²
Bottom shieve	133 dm²	160 dm²	160 dm²
Total screening area	340	450	450
Overall lenght	910 cm	905 cm	905 cm
Overall width	490 cm	564 cm	564 cm
Width without header	300 cm	329 cm	329 cm
Height with cabin	365 cm	398 cm	397 cm
Weight without header	9000 kg	10970 kg	12290 kg
Grain tank	52 hl	65 hl	76 hl
Unl. height	330 cm	400 cm	440 cm
Tyres front (Finland)	600/65R34	620/70R38	620/70R38
Tyres front, alternative	750/65R26	800/65R32	800/65R32
Tyres rear (Finland)	420/65R20	480/65R24	480/65R24
Tyres rear, alternative	550/45-22.5	540/65R24	540/65R24
Reel forward/backw. adjustment	elec.	hydr.	hydr.
Reel speed adjustment	elec.	hydr.	hydr.
Threshing cyl. speed adjustment	elec.	hydr.	hydr.
Bottom sieve	convertible	adj.	adj.
Brakes	mech. shoe	mech. shoe	mech. shoe
Reverser	x	x	x
Grain loss indicator	x	x	x
Type of cutting platform floating	gas damper	gas damper	gas damper
Autom. control of cutting height	-	x	x
Cutting platform lateral tilt	-	x	x
