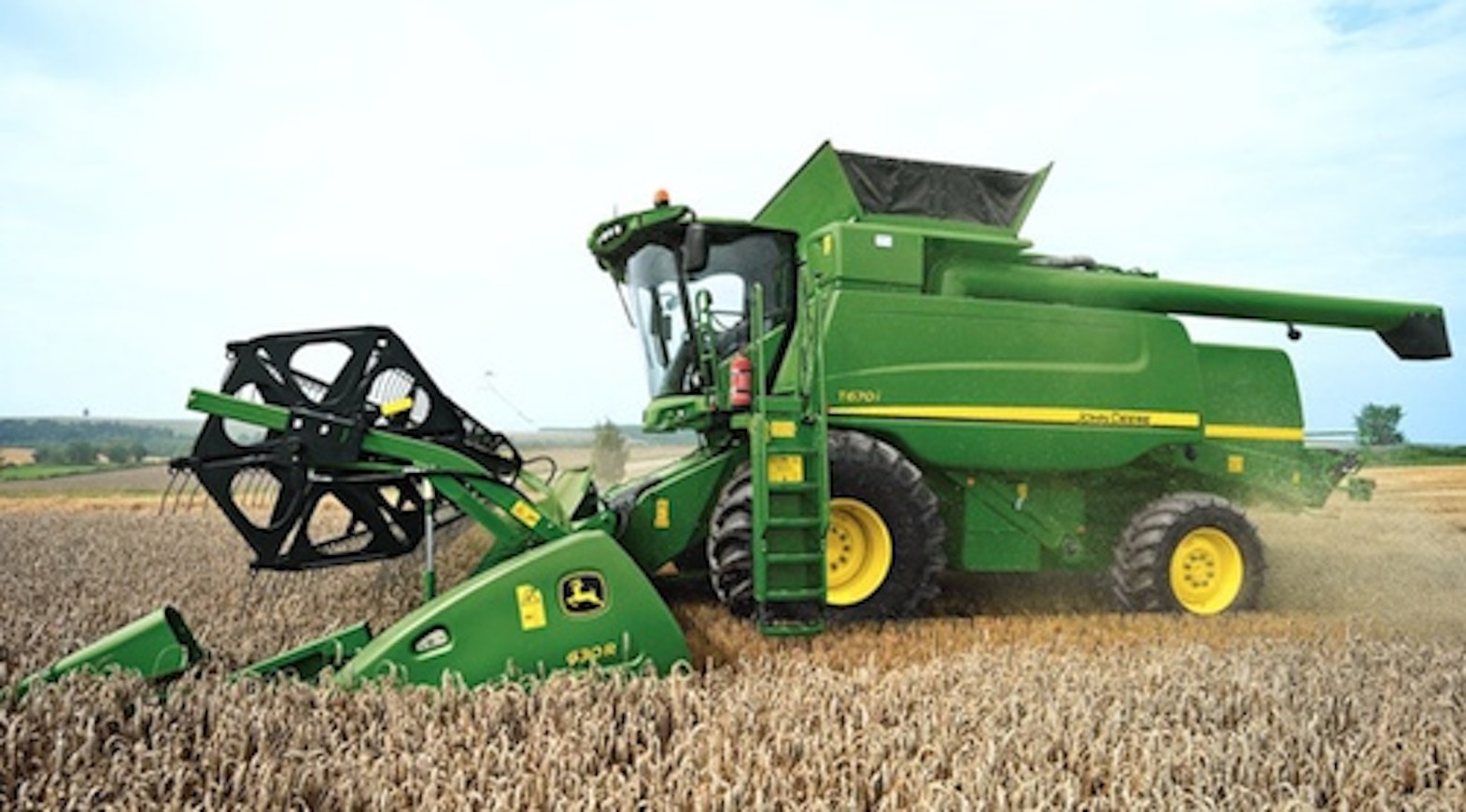

John Deere T550 – T670

13JDT670
13JDT670ohjaamo
13JDT670
13JDT670ohjaamo
Manufacturer
Models
John Deere T550, John Deere T560, John Deere T660, John Deere T670
Years
2011-16
Info

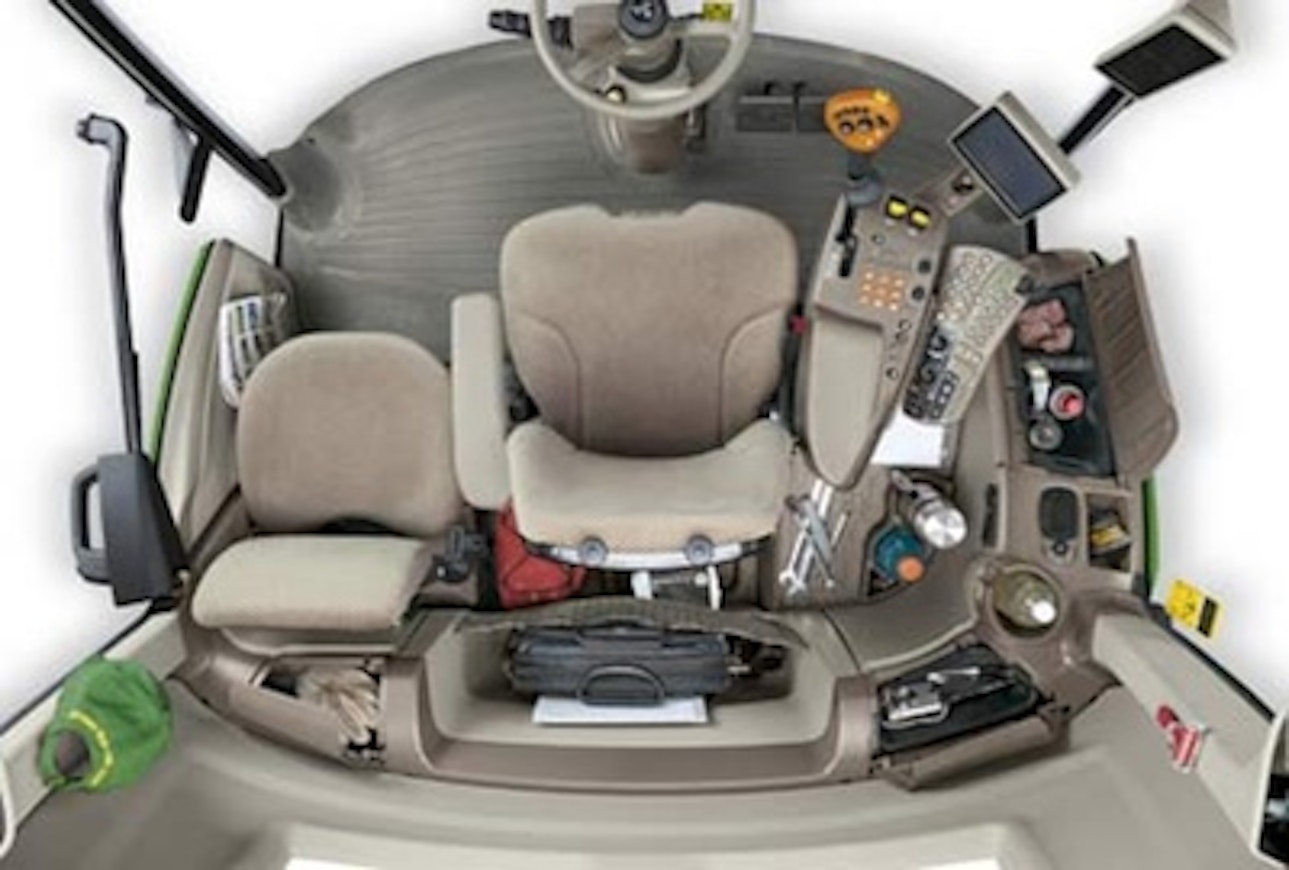

In the John Deere model update for the 2012 season, the most significant change to the four-wheel-drive T-series was the new Premium cab, which was 30% more spacious than before. All controls were consolidated into the armrest, and attached to it was a new GreenStar 3 touchscreen used, among other things, for adjusting threshing settings. The cab's noise level was reported to be 72 dB. The T550 was also available with the older Komfort cab. The engines featured increased power and improved technology, but John Deere did not use urea injection. During tank unloading, extra power of 30-34 hp was available. An automated ProDrive transmission was available as an option. Also, the basic model's gears were electrically operated except for the T550. As an alternative to the standard 600R cutting platform, there was the Premium Flow cutting platform made by Zürn, where the rapeseed cutting bars could be quickly switched in place of the straw choppers.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere T550John Deere T560John Deere T660John Deere T670
Imported to FinlandYesYesYesYes
Years2011-162011-162011-162011-16
EngineJDJDJDJD
Engine type6068HZ4826090HZ011L6090HZ011L6090HZ011H
Displacement6788 cm³8984 cm³8984 cm³8984 cm³
Cyl/turbo6 TI6 TI6 TI6 TI
Power----
Fuel tank800 l800 l800 l800 l
Transmissionhydr.hydr.hydr.hydr.
Gears3333
Speed min-max.0-30 km/h0-30 km/h0-30 km/h0-30 km/h
Cutting width550 cm610 cm750 cm750 cm
Cutting width, alternative480-660 cm480-660 cm480-1070 cm480-1070 cm
Reel diameter110 cm110 cm110 cm110 cm
Header length55-72 cm55-72 cm55-72 cm55-72 cm
Threshing cyl. diameter66 cm66 cm66 cm66 cm
2. cyl. diameter42/66/40 cm42/66/40 cm42/66/40 cm42/66/40 cm
Threshing cyl. width140 cm140 cm167 cm167 cm
Number of straw walkers5566
Area of walkers450 dm²450 dm²540 dm²540 dm²
Lenght of walkers325 cm325 cm325 cm325 cm
Straw shieve276 dm²276 dm²332 dm²332 dm²
Bottom shieve208 dm²208 dm²251 dm²251 dm²
Total screening area484484583583
Overall lenght920+pöytä cm920+pöytä cm920+pöytä cm920+pöytä cm
Overall width589 cm656 cm799 cm799 cm
Width without header350 cm380 cm400 cm400 cm
Height with cabin385 cm385 cm385 cm385 cm
Weight with cabin16810 kg17050 kg18000 kg18000 kg
Grain tank80 hl100 hl110 (90) hl110 hl
Tyres front (Finland)800/65R32900/60R32900/60R32900/60R32
Tyres front, alternative1050/50R321050/50R321050/50R321050/50R32
Tyres rear (Finland)480/80R26480/80R26540/65R30600/65R28
Tyres rear, alternative600/65R28600/65R28600/65R28-
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.
Reel speed adjustmentelec.elec.elec.elec.
Threshing cyl. speed adjustmenthydr.hydr.hydr.hydr.
Bottom sieveadj.adj.adj.adj.
Brakeswet discwet discwet discwet disc
Reverserxxxx
Air conditioningxxxx
Heatingxxxx
Grain loss indicatorxxxx
Floating cutting platformxxxx
Autom. control of cutting heightxxxx
Slope levellingopt.opt.opt.opt.
Cutting platform lateral tiltxxxx
Type of cutting platform floatingautom.autom.autom.autom.
Weight without header-14480 kg--
Unl. height-420 cm--
