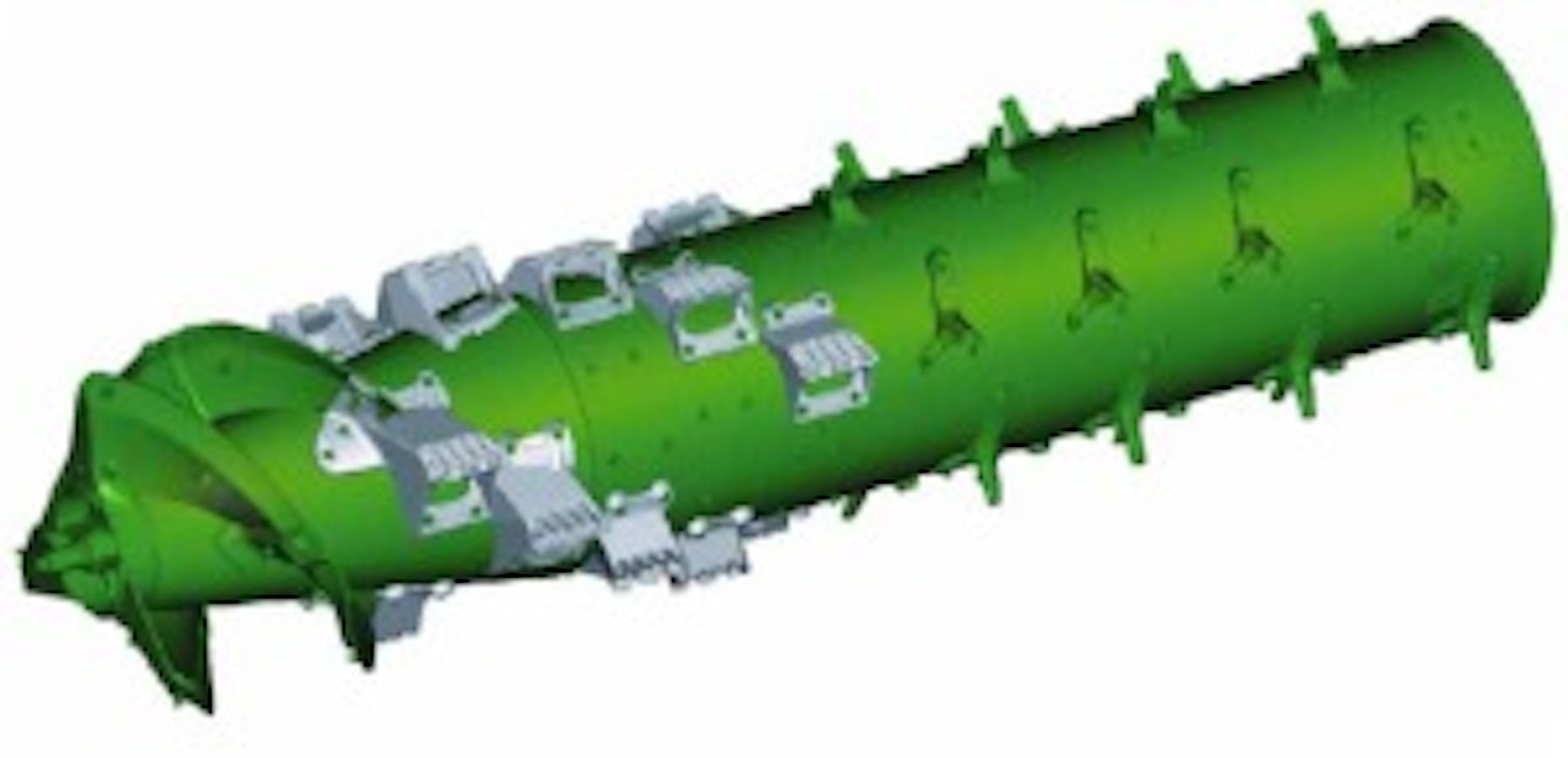

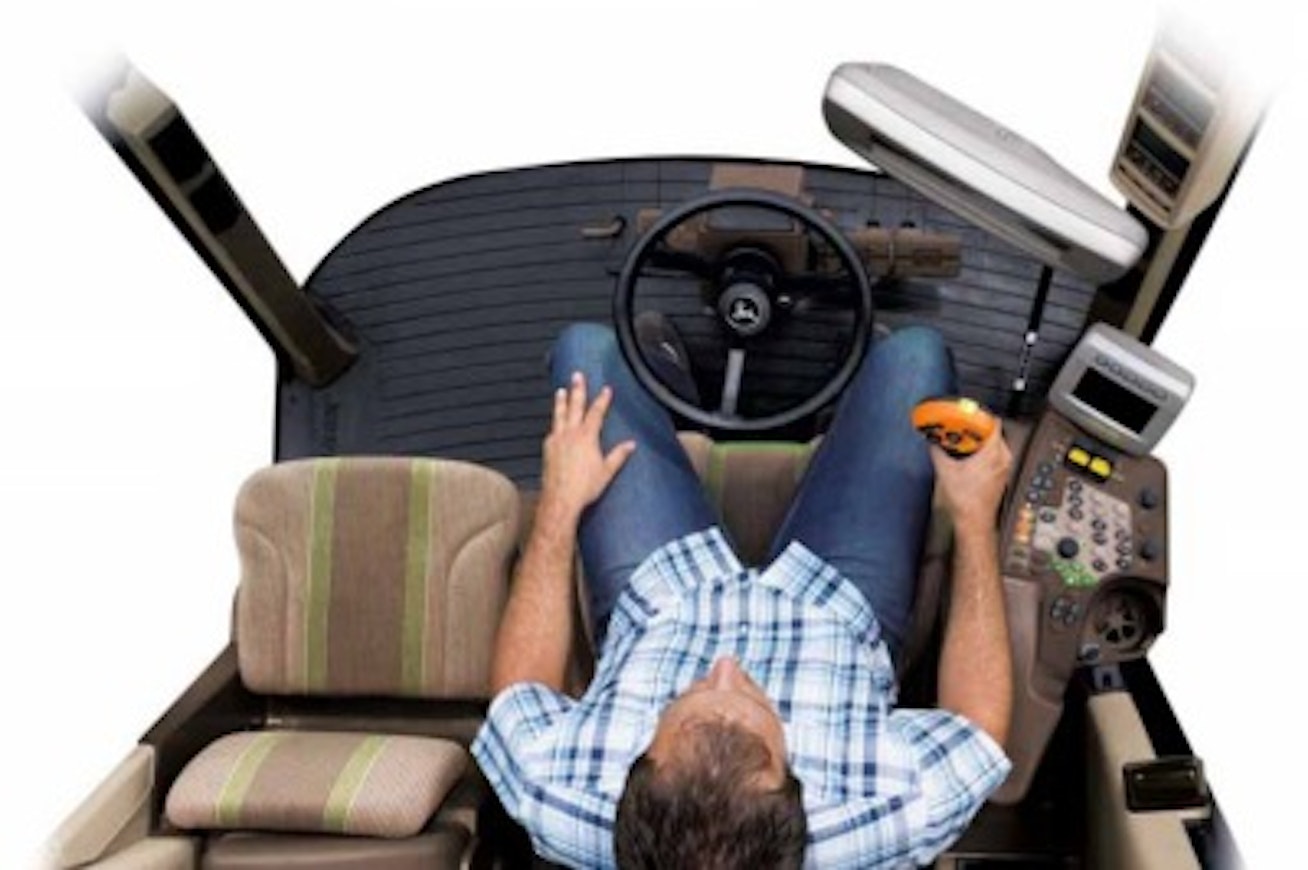

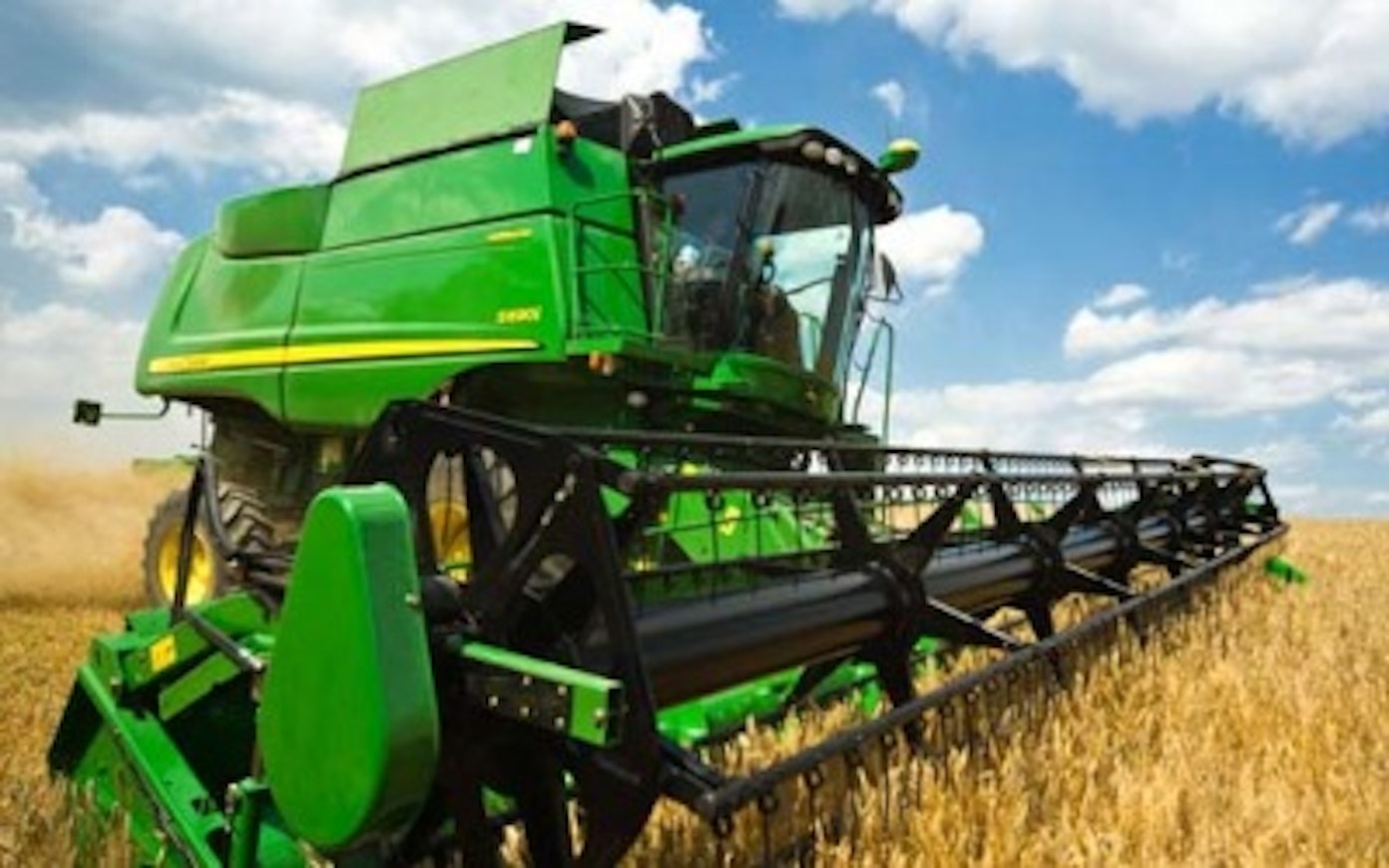

STS was replaced in the autumn of 2007 by the S690. The three-stage cylinder remained the same, and the biggest change was a new 13.5-liter engine. Also new was the Hillmaster parallel model with a 22% tilt. The cab featured the Command Center control system, which appeared in other combine models only a year later. The electrical systems were now implemented with bus technology. Sieves, straw walkers, cylinder speed, and fan could be automatically adjusted if desired. The noise level was reported to be 75 dB, which is slightly higher than in European JD combines.

On the American market, the equivalent combine model designation was still 9870 STS. Alongside it were three smaller models, of which the middle one, the 9670 STS, was sold at least in France under the model designation S560.

This is an automated translation. Please report any issues in the translation.

John Deere S560

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

John Deere S690

John Deere S560-S690

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere S560	John Deere S690
Imported to Finland	No	No
Years	2007-08	2007-11
Engine	JD	JD
Engine type	6090JJ008	6135HH001
Displacement	8984 cm³	13548 cm³
Cyl/turbo	6 TI	6 TI
Power	319 hp DIN	491 hp DIN
Fuel tank	757 l	1155 l
Transmission	hydr.	hydr.
Gears	3	3
Speed min-max.	0-25 km/h	0-25 km/h
Cutting width	610 cm	760 cm
Cutting width, alternative	670-915 cm	915 cm
Reel diameter	110 cm	110 cm
Header length	55-72 cm	55-72 cm
Threshing cyl. diameter	76 cm	76 cm
Threshing cyl. width	312 cm	312 cm
Number of straw walkers	1 cylinder	1 cylinder
Area of walkers	190 dm²	190 dm²
Overall lenght	934+pöytä cm	1102+pöytä cm
Overall width	656 cm	799 cm
Width without header	350 cm	350 cm
Height with cabin	393 cm	394 cm
Weight without header	13808 kg	17297 kg
Grain tank	90 hl	110 (140) hl
Unl. height	418 cm	447 cm
Tyres front (Finland)	710/70R38	710/70R38
Tyres front, alternative	1050/50R32	1050/50R32
Tyres rear (Finland)	440/80R24	440/80R24
Tyres rear, alternative	600/65R28	600/65R28
Reel forward/backw. adjustment	hydr.	hydr.
Reel speed adjustment	elec.	elec.
Bottom sieve	adj.	adj.
Brakes	wet disc	wet disc
Reverser	x	x
Air conditioning	x	x
Heating	x	x
Grain loss indicator	x	x
Floating cutting platform	x	x
Autom. control of cutting height	x	x
Slope levelling	opt.	opt.
Cutting platform lateral tilt	x	x
Type of cutting platform floating	autom.	autom.
