John Deere MD 530 – MD 730
Manufacturer
Models
John Deere MD 530, John Deere MD 530, John Deere MD 630, John Deere MD 630, John Deere MD 630, John Deere MD 730
Years
1964-72
Info

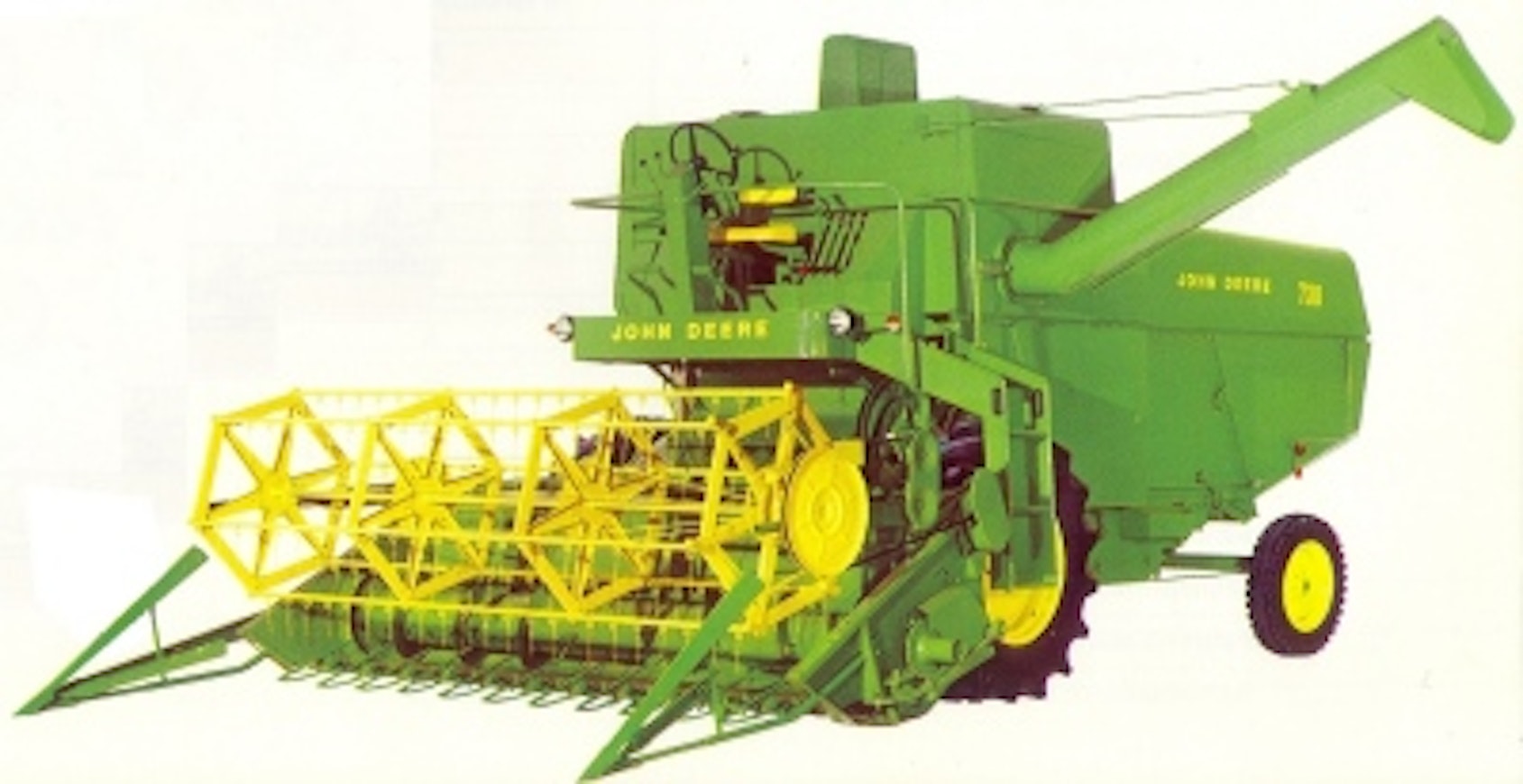

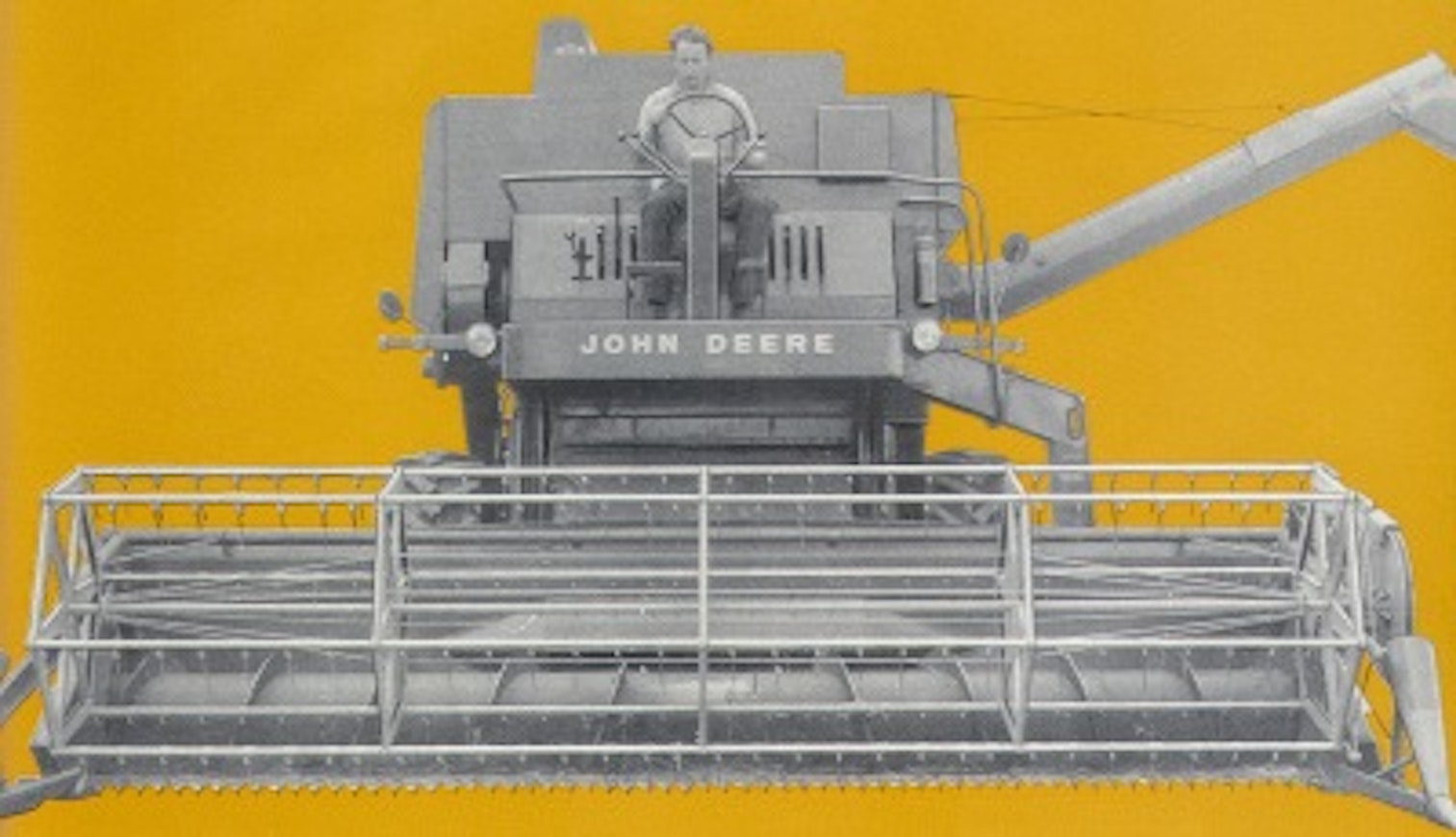

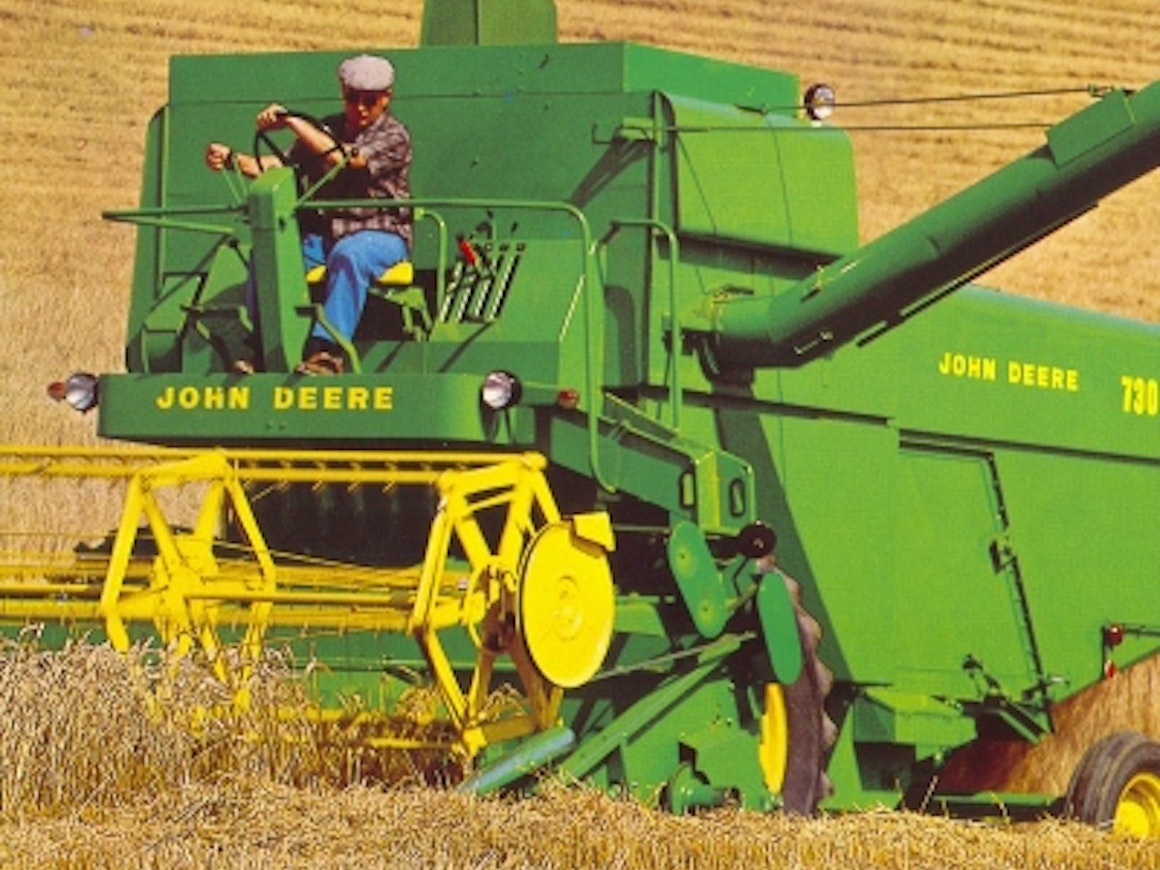

The largest model in the modernist designed and enclosed series introduced in 1964 was the MD 630 (MD = Mähdrescher = combine harvester). Later, the series was supplemented with the models MD 530 and MD 730, the latter being the first 5-rotor model. The two largest models originally had Perkins engines, although in the final phase the engine in the 630 was replaced with JD's own product. The 530 was found to be the most efficient combine harvester in its class in the Vakola group test at the time. The threshing machine width and the diameter of the threshing drum in this series have remained the same even into the 2000s.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere MD 530 | John Deere MD 530 | John Deere MD 630 | John Deere MD 630 | John Deere MD 630 | John Deere MD 730 |
|---|---|---|---|---|---|---|
| Options | ||||||
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1965-71 | 1971-72 | 1964-69 | 1969-71 | 1971-72 | -72 |
| First year sold | 1965 | 1971 | 1964 | 1969 | 1971 | - |
| Last year sold | 1971 | 1972 | 1969 | 1971 | 1972 | 1972 |
| Power | 72 | 74 | 87 | 95 | 106 | 110 |
| Power speed | 75 | - | - | - | - | - |
| Engine | JD | JD | Perkins | Perkins | JD | Perkins |
| Engine type | 4219 | 4219 | - | A6.354 | 6304 | A6.354 |
| Displacement | 3590 cm³ | 3590 cm³ | - | 5800 cm³ | 4976 cm³ | 5800 cm³ |
| Cyl/turbo | 4 | 4 | 6 | 6 | 6 | 6 |
| Power hp DIN | 72/75 | 74 | 87 | 95 | 106 | 110 |
| Fuel tank | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,1-19,8 km/h | 1,1-19,8 km/h | 1,1-19,8 km/h | 1,1-19,8 km/h | 1,1-19,8 km/h | 1,1-19,8 km/h |
| Cutting width | 300 cm | 303 cm | 365 cm | 365 cm | 365 cm | 425 cm |
| Cutting width, alternative | 255-365 cm | - | 255-425 cm | 300 cm | 300-545 cm | 300-487 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 47 cm | 47 cm | 47 cm | 47 cm | 47 cm | 47 cm |
| Threshing cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 104 cm | 104 cm | 104 cm | 104 cm | 104 cm | 130 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 | 5 |
| Area of walkers | 355 dm² | 355 dm² | 355 dm² | 355 dm² | 355 dm² | 472 dm² |
| Lenght of walkers | 341 cm | 341 cm | 341 cm | 341 cm | 341 cm | 363 cm |
| Straw shieve | 143 dm² | 143 dm² | 143 dm² | 143 dm² | 143 dm² | 209 dm² |
| Bottom shieve | 120 dm² | 120 dm² | 120 dm² | 120 dm² | 120 dm² | 152 dm² |
| Total screening area | 285 | 285 | 285 | 285 | 285 | 361 |
| Overall lenght | 830 cm | 921 cm | 830 cm | 830 cm | 830 cm | 830 cm |
| Overall width | 343 cm | 343 cm | 404 cm | 404 cm | 404 cm | 440 cm |
| Width without header | - | - | - | - | - | 298 cm |
| Height without cabin | 343 cm | 343 cm | 375 cm | 375 cm | 375 cm | 376 cm |
| Weight without cabin | 5000/5425 kg | 5510 kg | 5170 kg | 5745 kg | 5525 kg | 6200 kg |
| Grain tank | 24,4/21,5 (27) hl | 20.6 hl | 24.4 hl | 21,5 (27) hl | 20.6 hl | 28.5 hl |
| Tyres front (Finland) | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 |
| Tyres front, alternative | 18.4-26 | 18.4-26 | 23.1-26 | 23.1-26 | 23.1-26 | 23.1-26 |
| Tyres rear (Finland) | 10.5-18 | 10.5-18 | 10.50-16 | 10.5-18 | 10.5-18 | 10.5-18 |
| Tyres rear, alternative | 7.50-16 | 10.00-16 | - | 7.50-20 | 7.50-20 | 7.50-20 |
| Reel forward/backw. adjustment | holes | holes | holes | holes | holes | holes |
| Reel speed adjustment | converter | converter | converter | converter | converter | converter |
| Threshing cyl. speed adjustment | converter | converter | converter | converter | converter | converter |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | mech. drum | mech. drum | mech. drum | mech. drum | mech. drum | mech. drum |
| Type of cutting platform floating | mech. spring | mech. spring | mech. spring | mech. spring | mech. spring | mech. spring |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
