John Deere 2254 – 2266
Manufacturer
Models
John Deere 2254 Hydro, John Deere 2256 Hydro, John Deere 2258 Hydro, John Deere 2264 Hydro, John Deere 2266 Hydro, John Deere 2266E Hydro
Years
1997-2001
Info

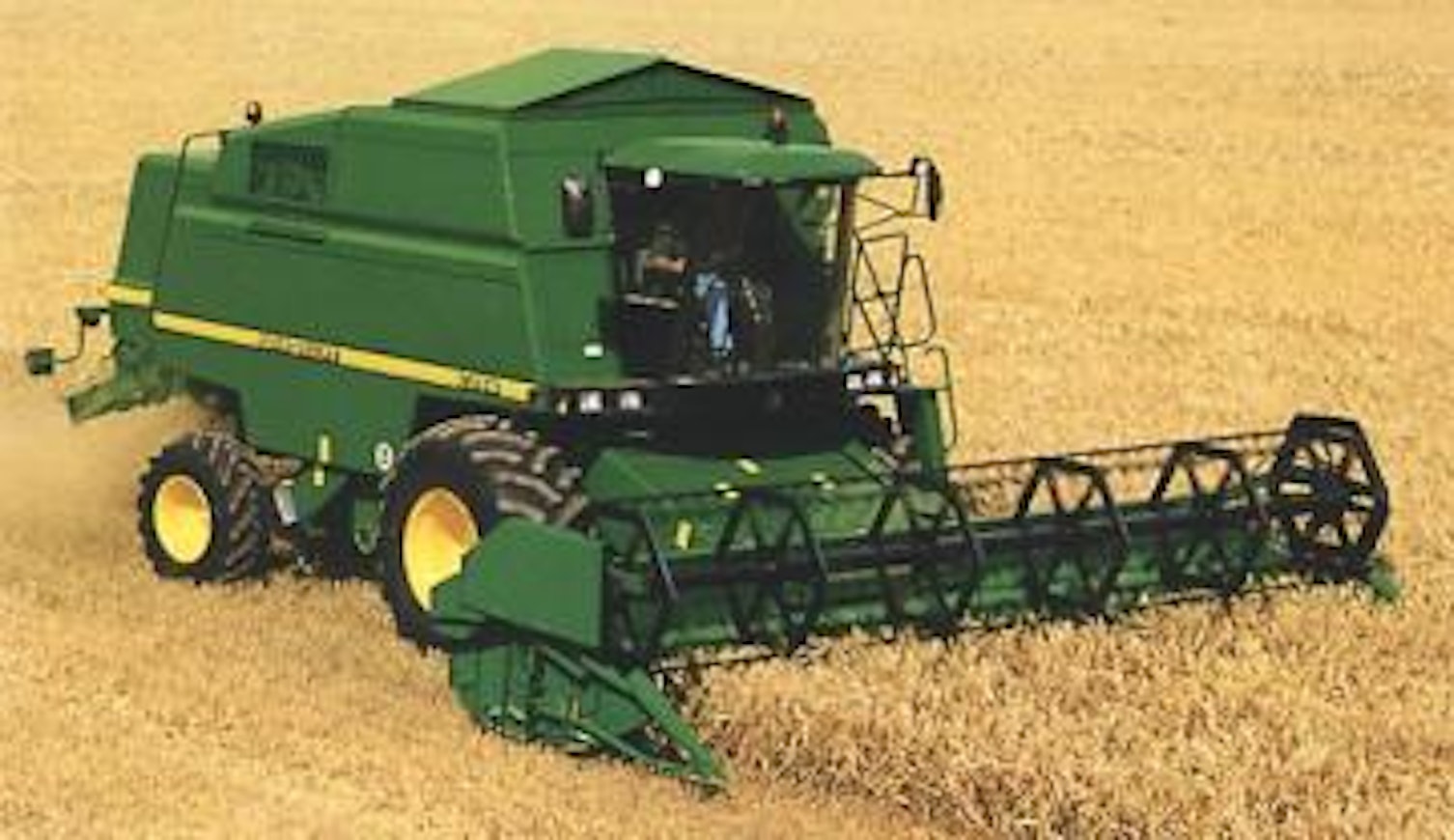

The second edition of the Z-series expanded the model numbers into the 2200 series. Most models featured more powerful engines than before. At the top of the range was the 2266 Extra, equipped with a 330 hp (peak power 360 hp) engine featuring electronic engine control and intercooling.

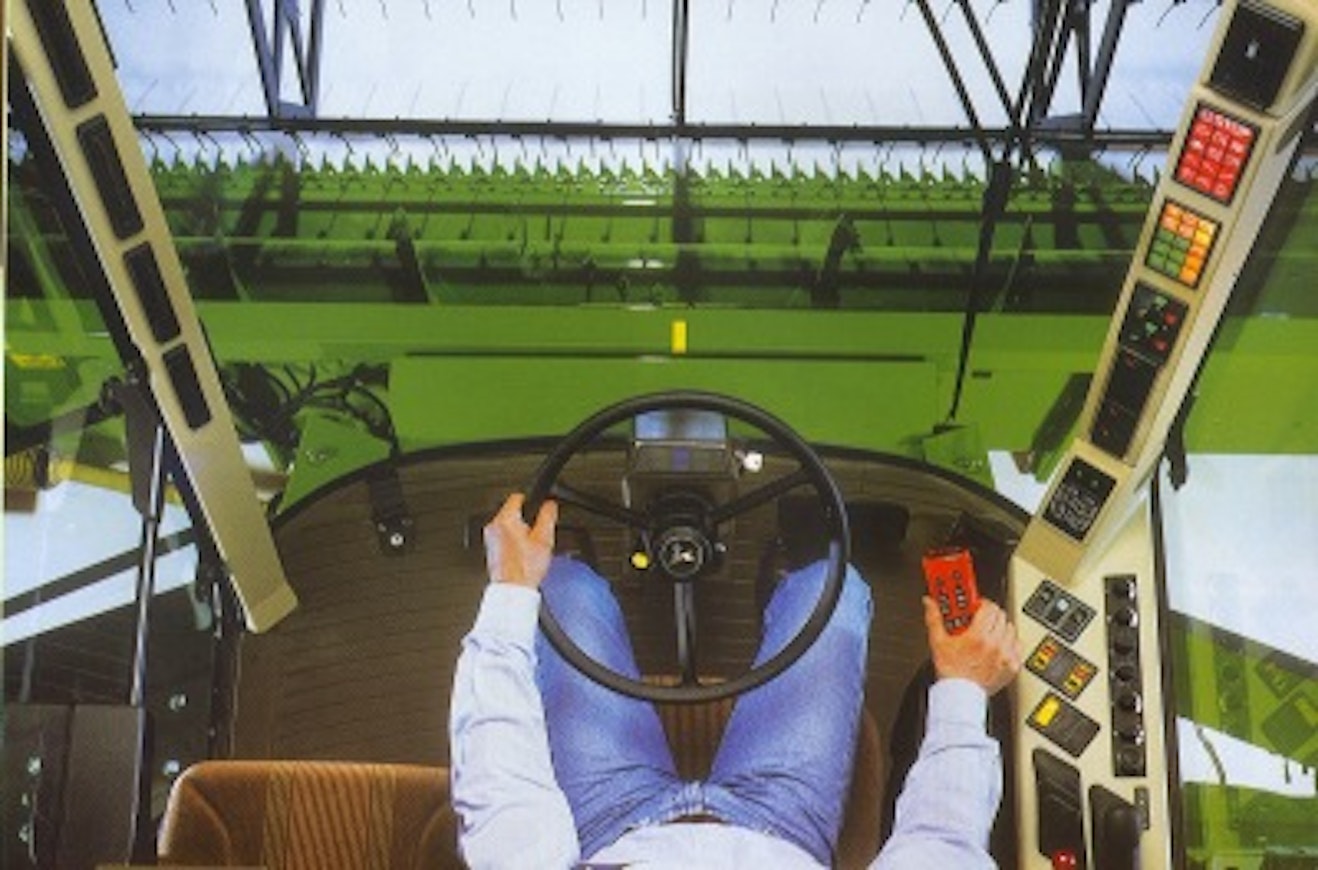

More advanced electronics took care of adjustments, for example, at the push of a button when switching from one type of grain to another. The height of the cutting table was adjusted fully automatically by the new ContourMaster system.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere 2254 Hydro | John Deere 2256 Hydro | John Deere 2258 Hydro | John Deere 2264 Hydro | John Deere 2266 Hydro | John Deere 2266E Hydro |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1997-2001 | 1997-2001 | 1997-2001 | 1997-2001 | 1997-2001 | 1997-2001 |
| Engine | JD | JD | JD | JD | JD | JD |
| Engine type | 6068 H | 6081 H | 6081 H | 6081 H | 6081 H | 6081 H |
| Displacement | 6788 cm³ | 8134 cm³ | 8134 cm³ | 8134 cm³ | 8134 cm³ | 8134 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | 180 hp DIN | 220 hp DIN | 250 hp DIN | 250 hp DIN | 270 hp DIN | 330 hp DIN |
| Fuel tank | 450 l | 450 l | 450/550 l | 550 l | 550 l | 550 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 485 cm | 485 cm | 485 cm | 550 cm | 610 cm | 610 cm |
| Cutting width, alternative | 425, 550 cm | 425, 550 cm | 425-610 cm | 425-760 cm | 425-760 cm | 425-760 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 38-48 cm | 38-48 cm | 38-48 cm | 38-48 cm | 38-48 cm | 38-48 cm |
| Threshing cyl. diameter | 66 cm | 66 cm | 66 cm | 66 cm | 66 cm | 66 cm |
| 2. cyl. diameter | 40 cm | 40 cm | 40 cm | 40 cm | 40 cm | 40 cm |
| Threshing cyl. width | 140 cm | 140 cm | 140 cm | 167 cm | 167 cm | 167 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 | 6 | 6 |
| Area of walkers | 640 dm² | 640 dm² | 640 dm² | 767 dm² | 767 dm² | 767 dm² |
| Lenght of walkers | 460 cm | 460 cm | 460 cm | 460 cm | 460 cm | 460 cm |
| Straw shieve | 276 dm² | 276 dm² | 276 dm² | 332 dm² | 332 dm² | 332 dm² |
| Bottom shieve | 208 dm² | 208 dm² | 208 dm² | 251 dm² | 251 dm² | 251 dm² |
| Total screening area | 484 | 484 | 484 | 583 | 583 | 583 |
| Overall lenght | 1093 cm | 1093 cm | 1093 cm | 1093 cm | 1093 cm | 1093 cm |
| Overall width | 527 cm | 527 cm | 527 cm | 527 cm | 527 cm | 527 cm |
| Width without header | 350 cm | 350 cm | 350 cm | 380 cm | 380 cm | 380 cm |
| Height with cabin | 379 cm | 385 cm | 394 cm | 394 cm | 398 cm | 398 cm |
| Weight with cabin | 11545 kg | 12050 kg | 12350 kg | 13275 kg | 13575 kg | 13775 kg |
| Weight without header | 10800 kg | 11400 kg | 11750 kg | 11900 kg | 12200 kg | 12400 kg |
| Grain tank | 60 hl | 70 hl | 80 hl | 80 hl | 80 hl | 95 hl |
| Unl. height | 422 cm | 422 cm | 422 cm | 422 cm | 422 cm | 422 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 30.5-32 | 30.5-32 | 30.5-32 |
| Tyres front, alternative | 24.5-32 | 24.5-32 | 24.5-32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 16.5/85-24 | 16.5/85-24 | 16.5/85-24 | 16.5/85-24 | 16.5/85-24 | 16.5/85-24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
