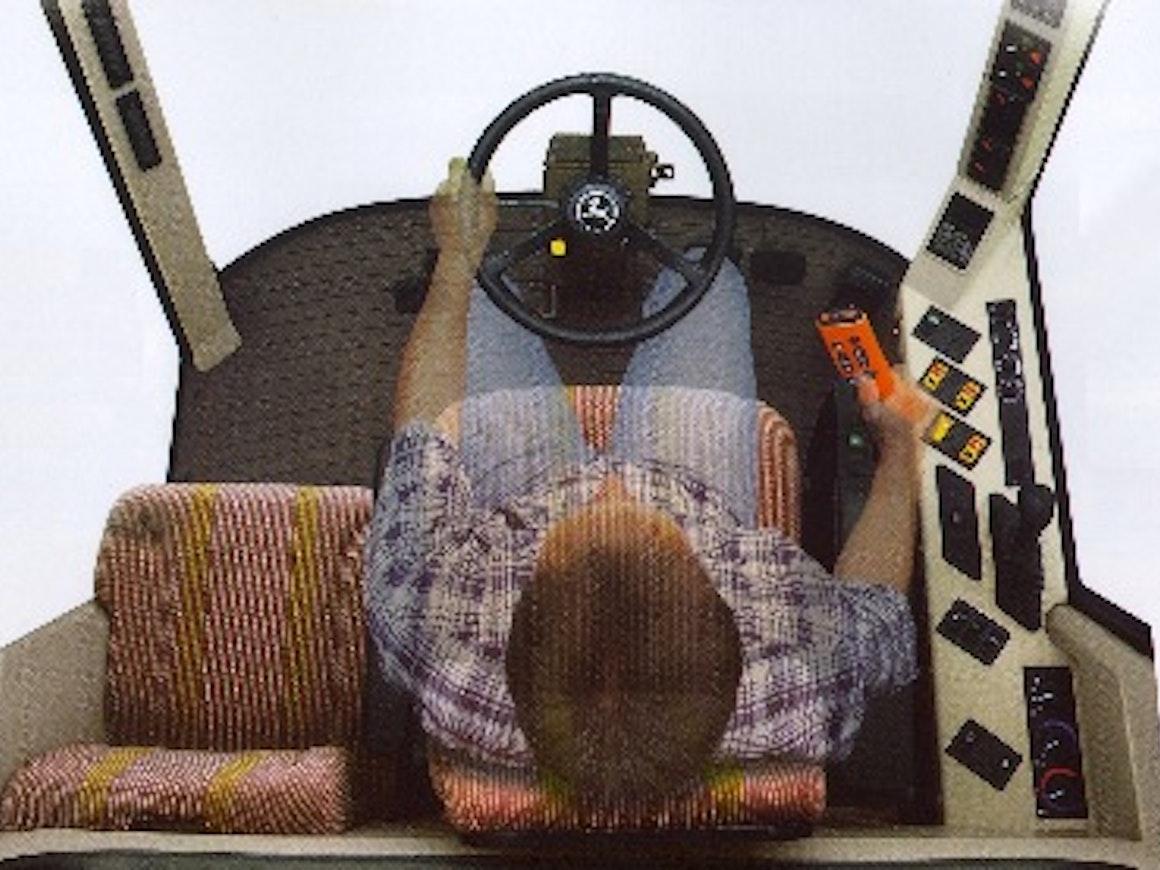

Followers of the 1170 were still manufactured in Brazil. In 1550, there was a new 6-row version. The spacious cab had the same basic structure as the Z-series. The cutting platform was either from the old 300-series or the new 600R-series (standard on the 1550). The 600R platform had lateral tilt as standard. An automatic cutting platform control system called Headertrack was available as an accessory. A drum separator was available as an accessory for the rows. The hillside threshing sieve was standard. The reverse drive was hydraulic. The parallel model to the 1450 was the hillside version 1450 AL, which was not imported to Finland.

The Series 2 models introduced in 2007 featured a new fan. Engine power was now stated according to the gross standard. The nominal powers were 198 and 245 hp. Maximum power at 2300 rpm was listed as 204 and 262 hp.

This is an automated translation. Please report any issues in the translation.

John Deere 1450 CWS

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

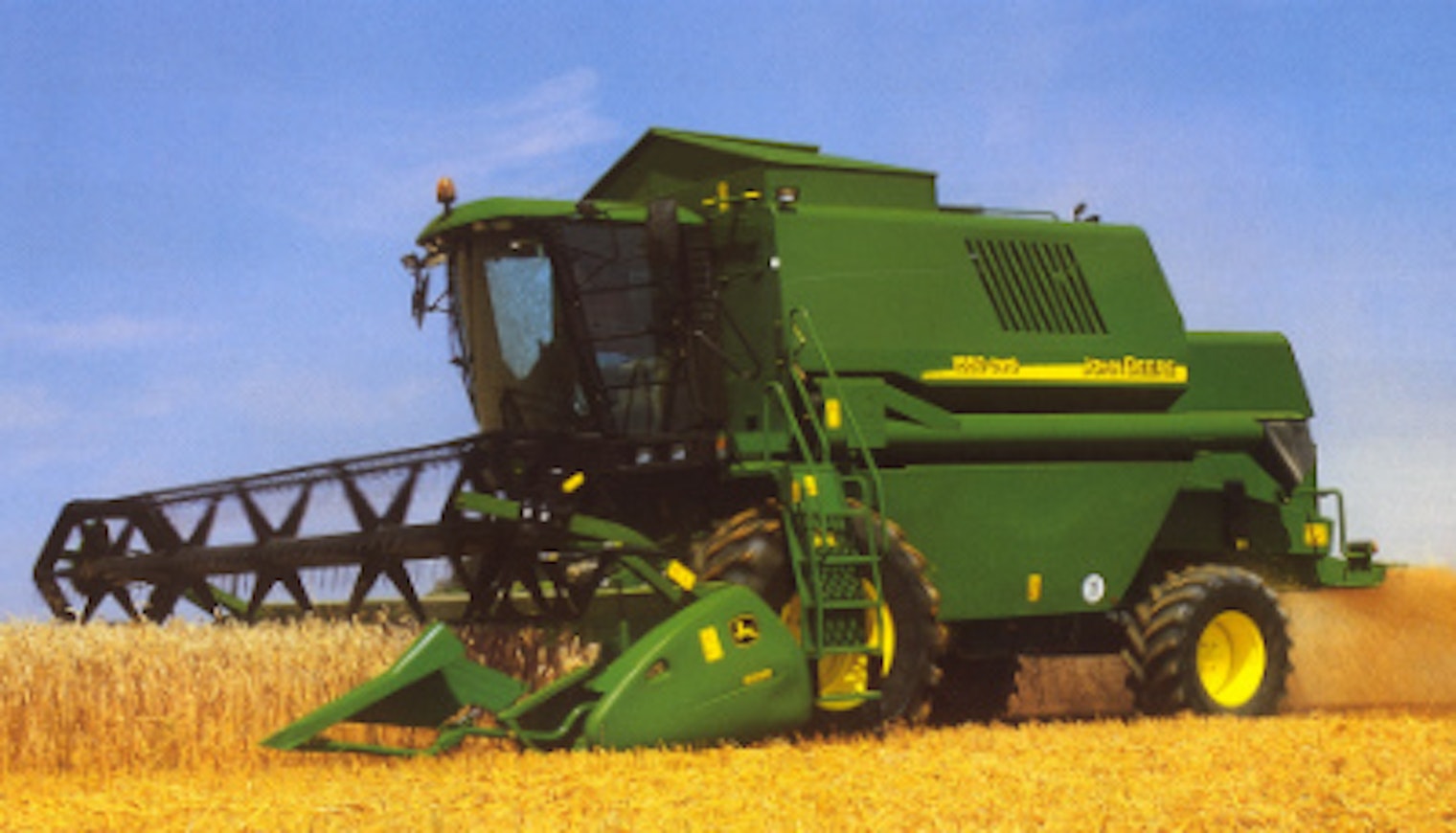

John Deere 1550 CWS

John Deere 1450 CWS – 1550 CWS

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere 1450 CWS	John Deere 1550 CWS
Imported to Finland	Yes	Yes
Years	2001-09	2001-09
Engine	JD	JD
Engine type	6068 HZ	6068 HZ
Displacement	6788 cm³	6788 cm³
Cyl/turbo	6 T	6 T
Power	180 hp DIN	225 hp DIN
Fuel tank	470 l	470 l
Transmission	hydr.	hydr.
Gears	3	3
Speed min-max.	0-25 km/h	0-25 km/h
Cutting width	485 cm	460 cm
Cutting width, alternative	365-580 cm	425-610 cm
Reel diameter	110 cm	110 cm
Header length	35-45 cm	55-72 cm
Threshing cyl. diameter	61 cm	61 cm
Threshing cyl. width	130 cm	156 cm
Number of straw walkers	5	6
Area of walkers	483 dm²	560 dm²
Lenght of walkers	375 cm	375 cm
Straw shieve	245 dm²	295 dm²
Bottom shieve	188 dm²	238 dm²
Total screening area	460	560
Overall lenght	790+pöytä cm	790+pöytä cm
Overall width	490 cm	490 cm
Width without header	365 cm	394 cm
Height with cabin	398 cm	400 cm
Weight without header	10500 kg	11500 kg
Grain tank	60 hl	60/68 hl
Unl. height	426 cm	426 cm
Tyres front (Finland)	750/65R26	800/65R32
Tyres front, alternative	23.1-30	23.1-30
Tyres rear (Finland)	440/65R24	16.9-24
Tyres rear, alternative	12.4-24	540/65R24
Reel forward/backw. adjustment	hydr.	hydr.
Reel speed adjustment	elec.	elec.
Threshing cyl. speed adjustment	adj, in cabin	adj, in cabin
Bottom sieve	adj.	adj.
Brakes	wet disc	wet disc
Reverser	x	x
Air conditioning	x	x
Heating	x	x
Grain loss indicator	x	x
Slope levelling	x	x
Type of cutting platform floating	gas damper	autom.
Floating cutting platform	-	x
Autom. control of cutting height	-	opt.
Cutting platform lateral tilt	-	x
