John Deere 1166 S II – 1188 S II
Manufacturer
Models
John Deere 1166 S II, John Deere 1166 S II Hydro/4, John Deere 1174 S II, John Deere 1177 S II, John Deere 1177 II Hydro/4, John Deere 1188 S II Hydro/4
Years
1990-94
Info

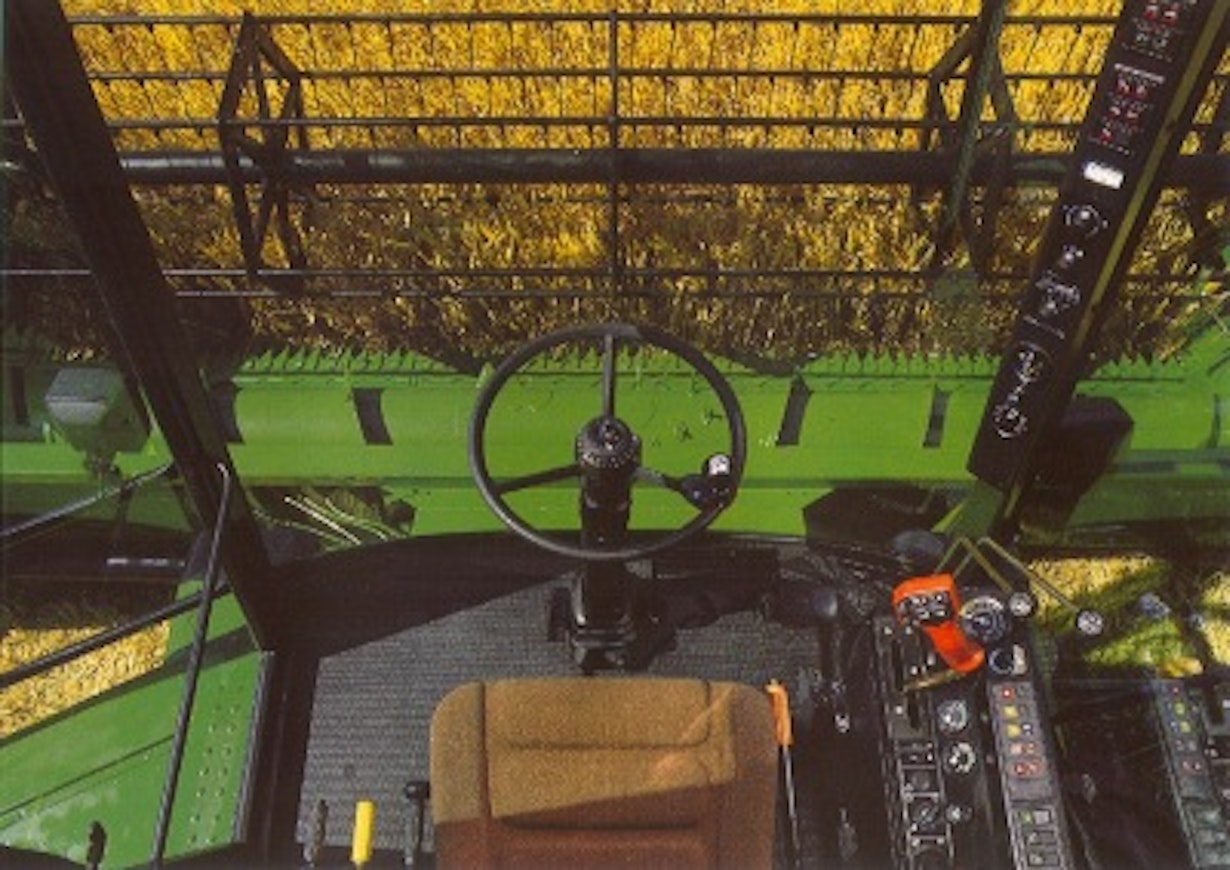

In the revised S II series, the engines were partly more powerful than before. The hydraulic version was also available for the smallest model in the series, the 1166. A new model version was a lower-powered 5-cylinder 1174. Air conditioning was now a standard feature. The fan was said to be more efficient than before.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere 1166 S II | John Deere 1166 S II Hydro/4 | John Deere 1174 S II | John Deere 1177 S II | John Deere 1177 II Hydro/4 | John Deere 1188 S II Hydro/4 |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1990-94 | 1990-94 | 1990-92 | 1990-92 | 1990-92 | 1990-92 |
| Engine | JD | JD | JD | JD | JD | JD |
| Engine type | 6539 TZ03 | 6539 TZ02 | 6539 TZ03 | 6539 AZ02 | 6466 AZ04 | 6466 AZ03 |
| Displacement | 5883 cm³ | 5883 cm³ | 5883 cm³ | 5883 cm³ | 7640 cm³ | 7640 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | 125 hp DIN | 150 hp DIN | 125 hp DIN | 160 hp DIN | 190 hp DIN | 210 hp DIN |
| Fuel tank | 300 l | 300 l | 300 l | 400 l | 400 l | 400 l |
| Transmission | mech. | hydr. | mech. | mech. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 1,5-25 km/h | 0-25 km/h | 1,5-25 km/h | 1,5-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 425 cm | 425 cm | 425 cm | 485 cm | 485 cm | 550 cm |
| Cutting width, alternative | 305-485 cm | 305-485 cm | 365-550 cm | 365-550 cm | 365-550 cm | 425-610 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 37-47 cm | 37-47 cm | 37-47 cm | 37-47 cm | 37-47 cm | 37-47 cm |
| Threshing cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 104 cm | 104 cm | 130 cm | 130 cm | 130 cm | 156 cm |
| Number of straw walkers | 4 | 4 | 5 | 5 | 5 | 6 |
| Area of walkers | 390 dm² | 390 dm² | 485 dm² | 485 dm² | 485 dm² | 585 dm² |
| Lenght of walkers | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm |
| Straw shieve | 180 dm² | 180 dm² | 228 dm² | 228 dm² | 228 dm² | 275 dm² |
| Bottom shieve | 148 dm² | 148 dm² | 187 dm² | 187 dm² | 187 dm² | 218 dm² |
| Total screening area | 350 | 350 | 445 | 445 | 445 | 525 |
| Overall lenght | 908 cm | 908 cm | 908 cm | 908 cm | 908 cm | 908 cm |
| Overall width | 465 cm | 465 cm | 465 cm | 525 cm | 525 cm | 600 cm |
| Width without header | 294 cm | 294 cm | 317 cm | 348 cm | 348 cm | 374 cm |
| Height with cabin | 383 cm | 383 cm | 382 cm | 405 cm | 405 cm | 413 cm |
| Weight with cabin | 8830 kg | 8830 kg | 9130 kg | 9860 kg | 9860 kg | 10970 kg |
| Weight without header | 7750 kg | 7750 kg | 8050 kg | 8700 kg | 8700 kg | 9500 kg |
| Grain tank | 44 hl | 44 hl | 48 hl | 60 hl | 60 hl | 60 hl |
| Unl. height | 360 cm | 360 cm | 418 cm | 418 cm | 418 cm | 418 cm |
| Tyres front (Finland) | 23.1-26 | 23.1-26 | 23.1-26 | 28.1-26 | 28.1-26 | 30.5-32 |
| Tyres front, alternative | 28.1-26 | 28.1-26 | 28.1-26 | 30.5-32 | 30.5-32 | 28.1-26 |
| Tyres rear (Finland) | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 14.5-20 | 14.5-20 | 14.9-24 |
| Tyres rear, alternative | 400/55-22.5 | 400/55-22.5 | 400/55-22.5 | 14.9-24 | 14.9-24 | 400/55-22.5 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | adj, in cabin | hydr. | adj, in cabin | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
