John Deere 1065 – 1085
Manufacturer
Models
John Deere 1065, John Deere 1072, John Deere 1075, John Deere 1075 Hydro/4, John Deere 1085, John Deere 1085 Hydro/4
Years
1981-89
Info

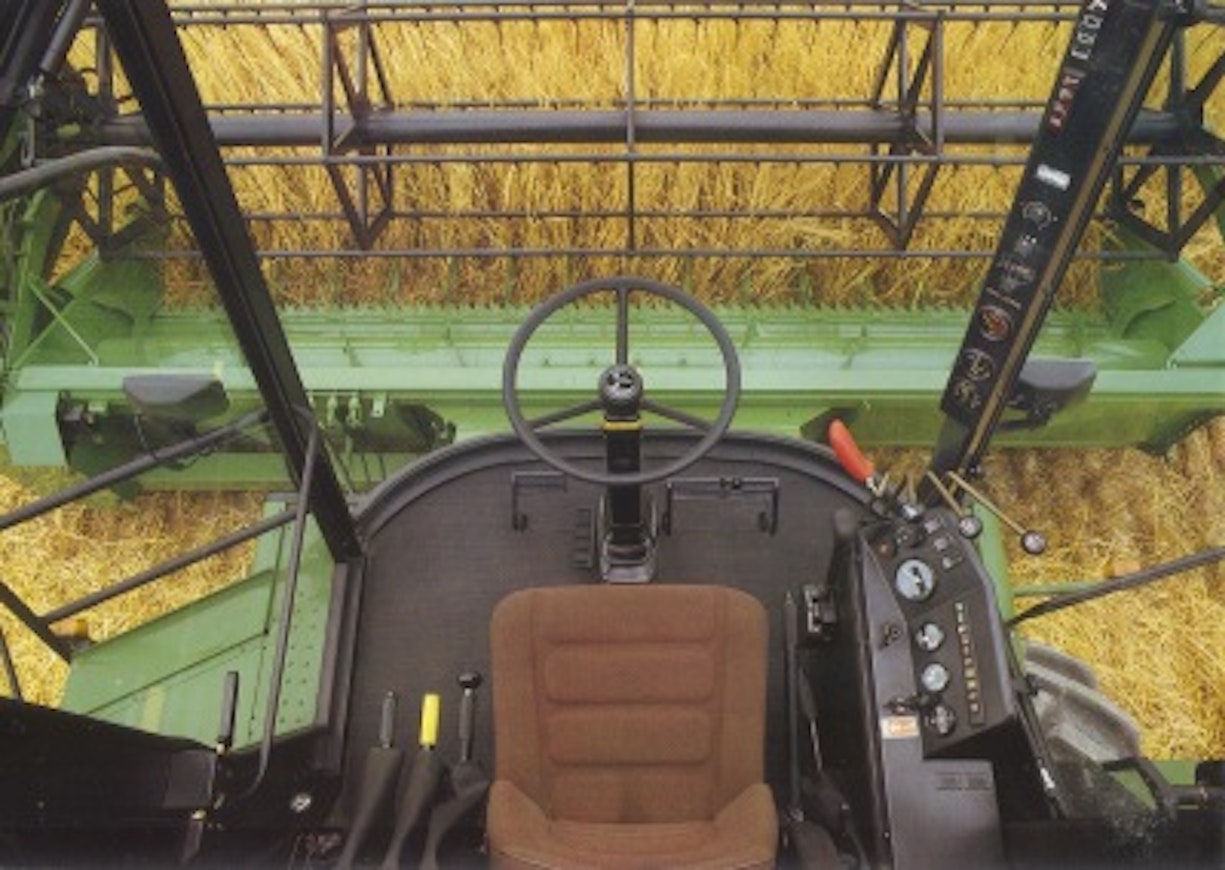

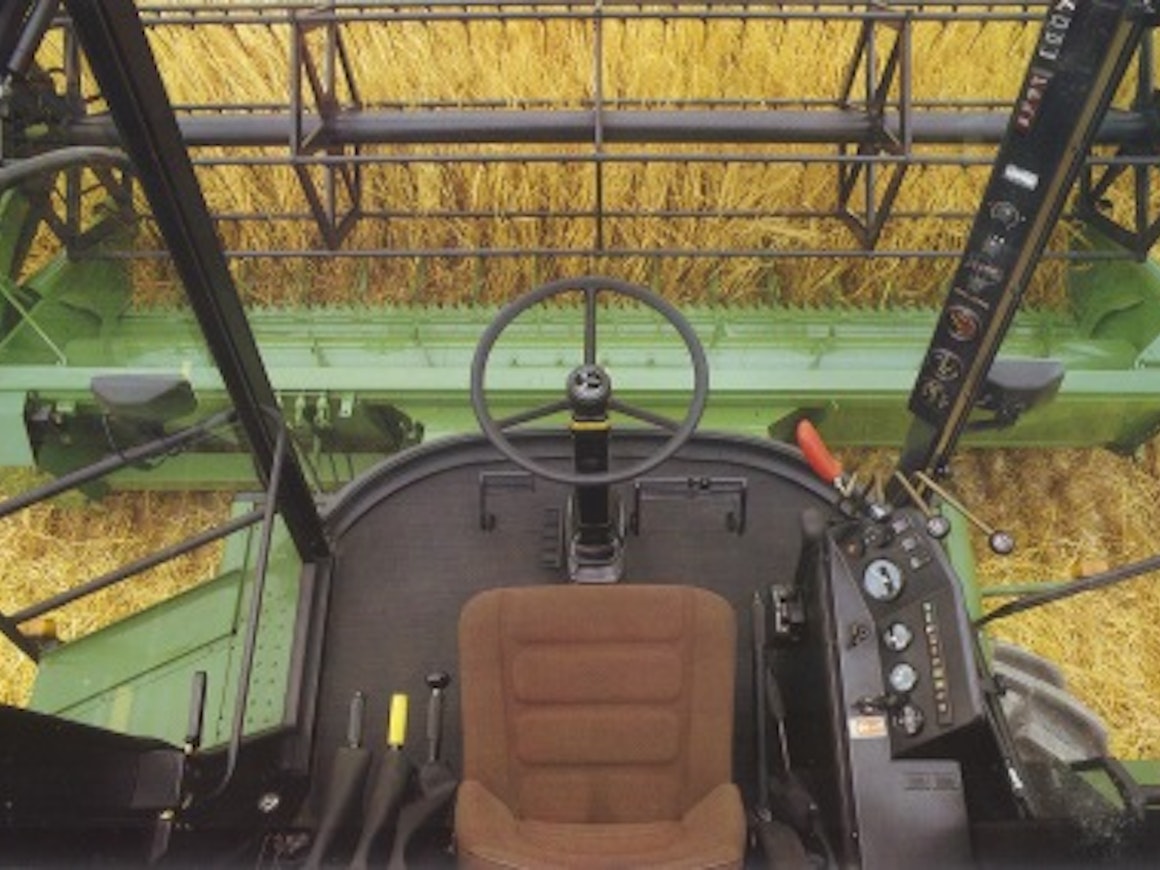

From the JD 1000 series, the large models were the first to come on the market. Compared to the 900 series, the most important updates were the SG2 cab, the redesigned cutting platform, and a larger threshing chamber. The use of the unloading auger and the center tube were more robust than before. Its speed adjustment was electric. The noise level in the cab was reported to be 80 dB. Some gauges and indicator lights were placed on the front pillar of the cab. There were four gears. The 1075 and 1085 models were also available with hydrostatic drive.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere 1065 | John Deere 1072 | John Deere 1075 | John Deere 1075 Hydro/4 | John Deere 1085 | John Deere 1085 Hydro/4 |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | No | Yes | Yes | Yes | Yes |
| Years | 1981-89 | 1985-89 | 1981-89 | 1981-89 | 1981-88 | 1981-88 |
| Engine | JD | JD | JD | JD | JD | JD |
| Engine type | 6359 TZ03 | 6359 TZ03 | 6359 TZ02 | 6359 TZ02 | 6466 TZ01 | 6466 AZ01 |
| Displacement | 5883 cm³ | 5883 cm³ | 5883 cm³ | 5883 cm³ | 7640 cm³ | 7640 cm³ |
| Cyl/turbo | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | 125 hp DIN | 125 hp DIN | 150 hp DIN | 150 hp DIN | 170 hp DIN | 195 hp DIN |
| Fuel tank | 300 l | 300 l | 300 l | 300 l | 300 l | 300 l |
| Transmission | mech. | mech. | mech. | hydr. | mech. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 1,1-20 km/h | 1,1-20 km/h | 1,1-20 km/h | 0-20 km/h | 1,1-20 km/h | 0-20 km/h |
| Cutting width | 425 cm | 425 cm | 425 cm | 425 cm | 485 cm | 485 cm |
| Cutting width, alternative | 365, 485 cm | 365-550 cm | 365-550 cm | 365-550 cm | 425, 550 cm | 425, 550 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm |
| Threshing cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 104 cm | 130 cm | 130 cm | 130 cm | 156 cm | 156 cm |
| Number of straw walkers | 4 | 5 | 5 | 5 | 6 | 6 |
| Area of walkers | 380 dm² | 472 dm² | 472 dm² | 472 dm² | 566 dm² | 566 dm² |
| Lenght of walkers | 365 cm | 365 cm | 365 cm | 365 cm | 365 cm | 365 cm |
| Straw shieve | 193 dm² | 245 dm² | 245 dm² | 245 dm² | 282 dm² | 282 dm² |
| Bottom shieve | 148 dm² | 188 dm² | 188 dm² | 188 dm² | 218 dm² | 218 dm² |
| Total screening area | 363 | 460 | 460 | 460 | 532 | 532 |
| Overall lenght | 906 cm | 906 cm | 906 cm | 906 cm | 906 cm | 906 cm |
| Overall width | 445 cm | 445 cm | 445 cm | 445 cm | 527 cm | 527 cm |
| Width without header | 287 cm | 299 cm | 295 cm | 330 cm | 330 cm | 330 cm |
| Height without cabin | 369 cm | 380 cm | 380 cm | 380 cm | - | - |
| Weight without cabin | 6550 kg | 7800 kg | 7820 kg | 8005 kg | 9230 kg | 9230 kg |
| Grain tank | 43 hl | 48 hl | 42/48 hl | 60 hl | 48 hl | 60 hl |
| Unl. height | 360 cm | 360 cm | 360 cm | 360 cm | 360 cm | 360 cm |
| Tyres front (Finland) | 23.1-26 | 18.4-30 | 23.1-26 | 23.1-26 | 23.1-26 | 23.1-26 |
| Tyres front, alternative | 18.4-30 | 23.1-26 | 18.4-30 | 28.1-26 | 28.1-26 | 28.1-26 |
| Tyres rear (Finland) | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 |
| Tyres rear, alternative | 10.5/80-18 | - | 10.5/80-18 | 10.5/80-18 | - | - |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Heating | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Height with cabin | - | 380 cm | 380 cm | 380 cm | 396 cm | 396 cm |
| Weight with cabin | - | - | - | - | 9500 kg | 9500 kg |
