John Deere 1032 – 1055
Manufacturer
Models
John Deere 1032, John Deere 1042, John Deere 1052, John Deere 1055, John Deere 1055
Years
1983-89
Info

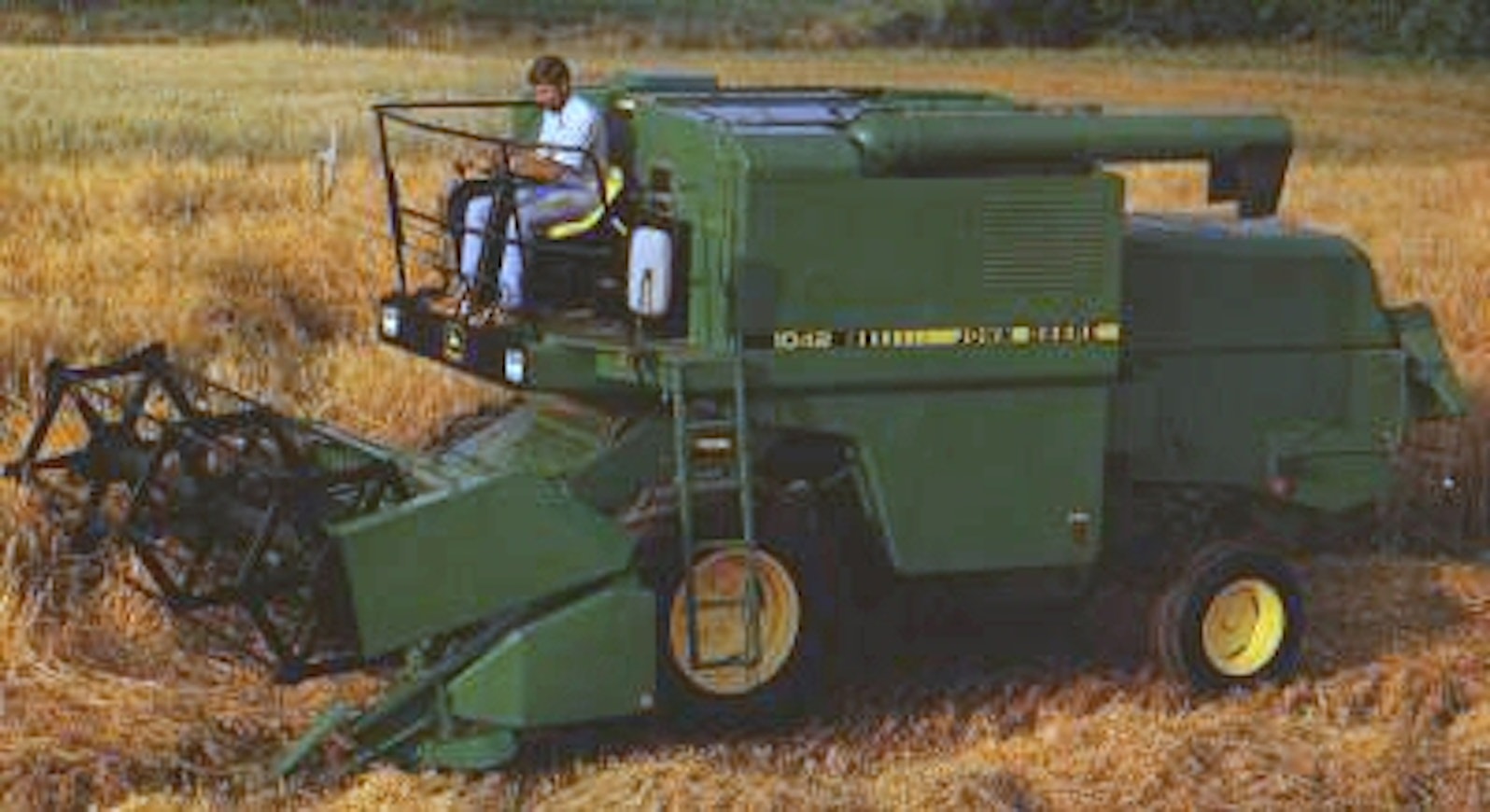

JD 1032 and 1042 were significantly more efficient than the smaller 900-series combines. The width of the threshing reel increased from 78 cm to 104 cm, and the number of straw walkers correspondingly rose from three to four. The grain tanks were also larger, although they remained among the smallest in their size class. The 1055 had changed noticeably less compared to the old 955. The 955/1055, for example, was much more robust in terms of power transmission than the smaller models. All models in the 1000 series featured a discharge pipe located at the top of the combine and were designed for easier cleaning.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere 1032 | John Deere 1042 | John Deere 1052 | John Deere 1055 | John Deere 1055 |
|---|---|---|---|---|---|
| Options | |||||
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1983-89 | 1983-89 | 1985-89 | 1983-85 | 1985-89 |
| First year sold | 1983 | 1983 | 1985 | 1983 | 1985 |
| Last year sold | 1989 | 1989 | 1989 | 1985 | 1989 |
| Power | 65 | 75 | 85 | 105 | 105 |
| Engine | JD | JD | JD | JD | JD |
| Engine type | 4239 DZ03 | 4239 DZ03 | 4239 TZ01 | 6539 DZ03 | 6539 DZ03 |
| Displacement | 3920 cm³ | 3920 cm³ | 3920 cm³ | 5883 cm³ | 5883 cm³ |
| Cyl/turbo | 4 | 4 | 4 T | 6 | 6 |
| Power hp DIN | 65 | 75 | 85 | 105 | 105 |
| Fuel tank | 110 l | 110 l | 175 l | 175 l | 175 l |
| Transmission | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,2-20 km/h | 1,2-20 km/h | 1,2-20 km/h | 1,2-20 km/h | 1,2-20 km/h |
| Cutting width | 265 cm | 305 cm | 305 cm | 365 cm | 365 cm |
| Cutting width, alternative | 305 cm | 265 cm | 365 cm | 305, 425 cm | 305, 425 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm |
| Threshing cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 104 cm | 104 cm | 104 cm | 104 cm | 104 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 306 dm² | 306 dm² | 377 dm² | 377 dm² | 377 dm² |
| Lenght of walkers | 294 cm | 294 cm | 365 cm | 365 cm | 365 cm |
| Straw shieve | 132 dm² | 132 dm² | 165 dm² | 165 dm² | 165 dm² |
| Bottom shieve | 98 dm² | 98 dm² | 120 dm² | 120 dm² | 120 dm² |
| Total screening area | 252 | 252 | 307 | 307 | 307 |
| Overall lenght | 735 cm | 735 cm | 865 cm | 900 cm | 900 cm |
| Overall width | 300 cm | 340 cm | 346 cm | 385 cm | 385 cm |
| Width without header | - | - | 257 cm | 265 cm | 265 cm |
| Height without cabin | 302 cm | 302 cm | 342 cm | 342 cm | 342 cm |
| Weight without cabin | 4440 kg | 4600 kg | 5400 kg | 6400 kg | 6400 kg |
| Weight with cabin | - | - | 5600 kg | - | - |
| Grain tank | 21 hl | 21 hl | 30 hl | 30 hl | 35 hl |
| Tyres front (Finland) | 18.4-26 | 18.4-26 | 18.4-30 | 23.1-26 | 23.1-26 |
| Tyres rear (Finland) | 10.5-18 | 10.5-18 | 10.5-18 | 12.5/80-18 | 12.5/80-18 |
| Reel forward/backw. adjustment | mech. | mech. | mech. | mech. | mech. |
| Reel speed adjustment | adj, in cabin | adj, in cabin | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Heating | - | - | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
