Hanomag R16-R19, R217/R425

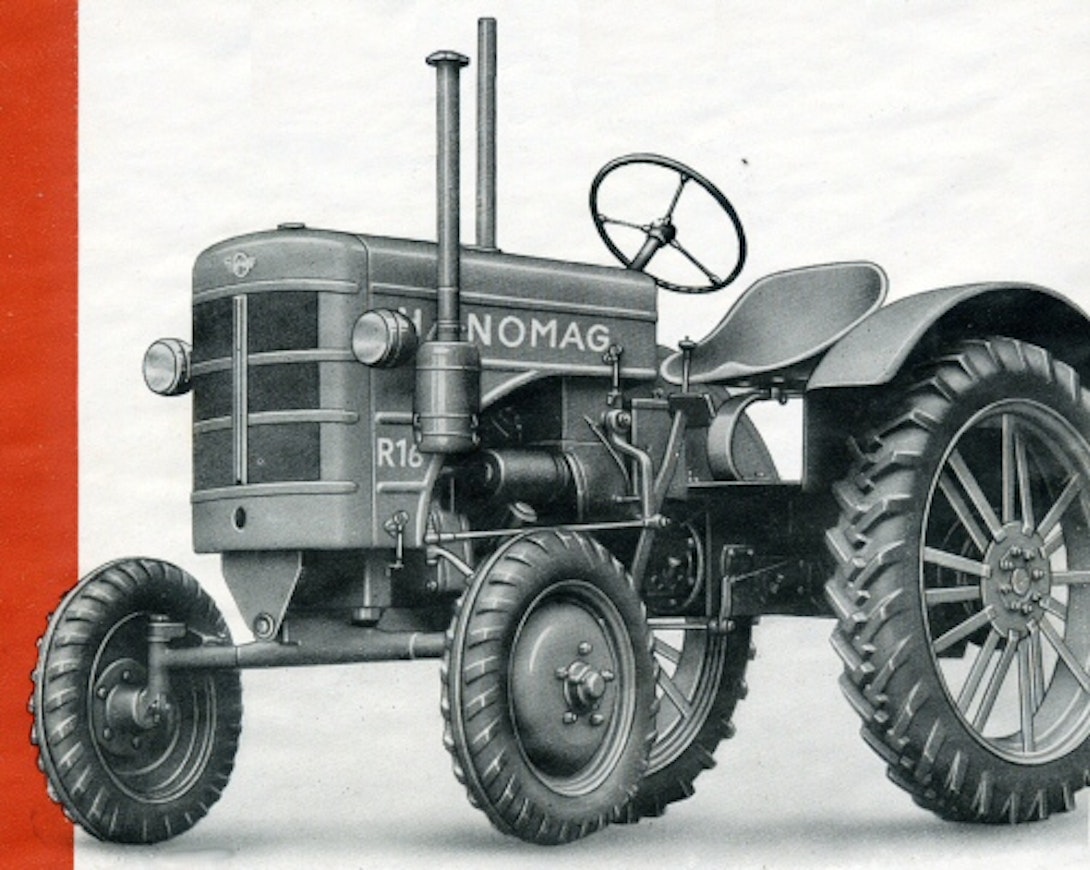

In the early 1950s, Hanomag entered the market for smaller tractors, where previously it had only had a venture based on passenger car technology. The 16-horsepower R16's engine was a two-cylinder cut-down version of the larger models' 3- and 4-cylinder engines. Unlike those, the engine was part of the load-bearing structure. There were 5+1 gears and 8+2 with crawling gears. The hydraulic pump output was 12 liters per minute, manufactured by Teves. However, in 1953 it was replaced by a Bosch pump with a capacity of 16 liters per minute. The clutch was branded Fichtel & Sachs, and the steering gear was ZF. Initially, the grille had two horizontal bars, but in 1953 Hanomags received a grille decorated with five vertical rows. A differential lock was available as an optional extra. The R19 introduced in 1953 was practically the same tractor, but the engine speed was increased.

In 1957, the hood was rounded, and the model designation changed to R217, similar to the newer model series. The same model was known as the R425 in export markets.
