RS 09

58RS09
62RS09
58RS09
62RS09
Manufacturer
Models
RS 09/15, RS 09/109, RS 09/122, GT 124, GT 124
Years
1957-72
Info

In tractor production in the GDR, implement carriers played a central role. Production of the RS series reached 120,000 tractors, while the Famulus models remained at a few thousand in various versions. The first implement carrier to enter series production was the RS 08, which began production in 1953. It had a 0.69-liter two-stroke gasoline engine producing 15 horsepower. Through a directional reverser, there were 8 gears in both directions.

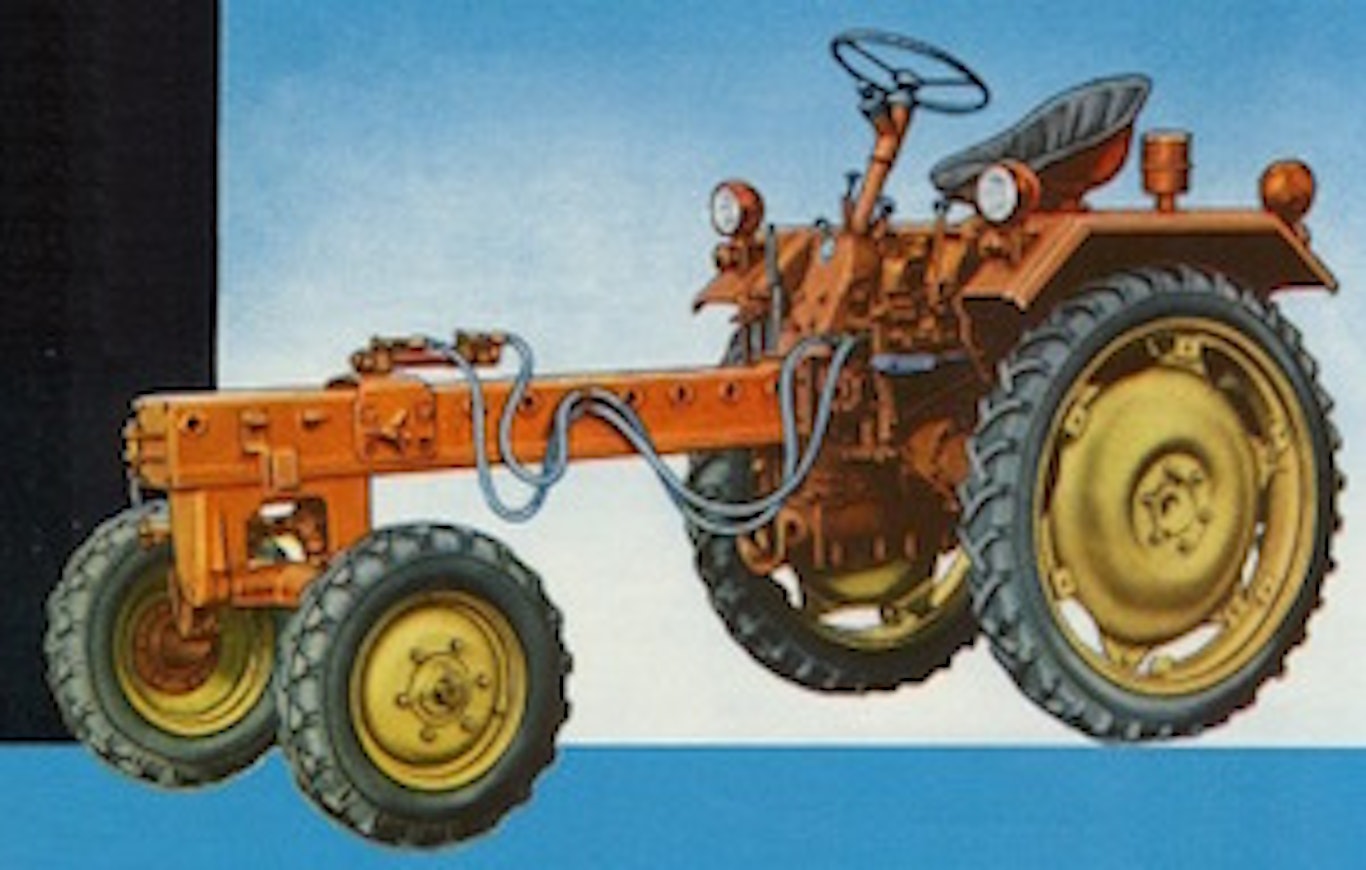

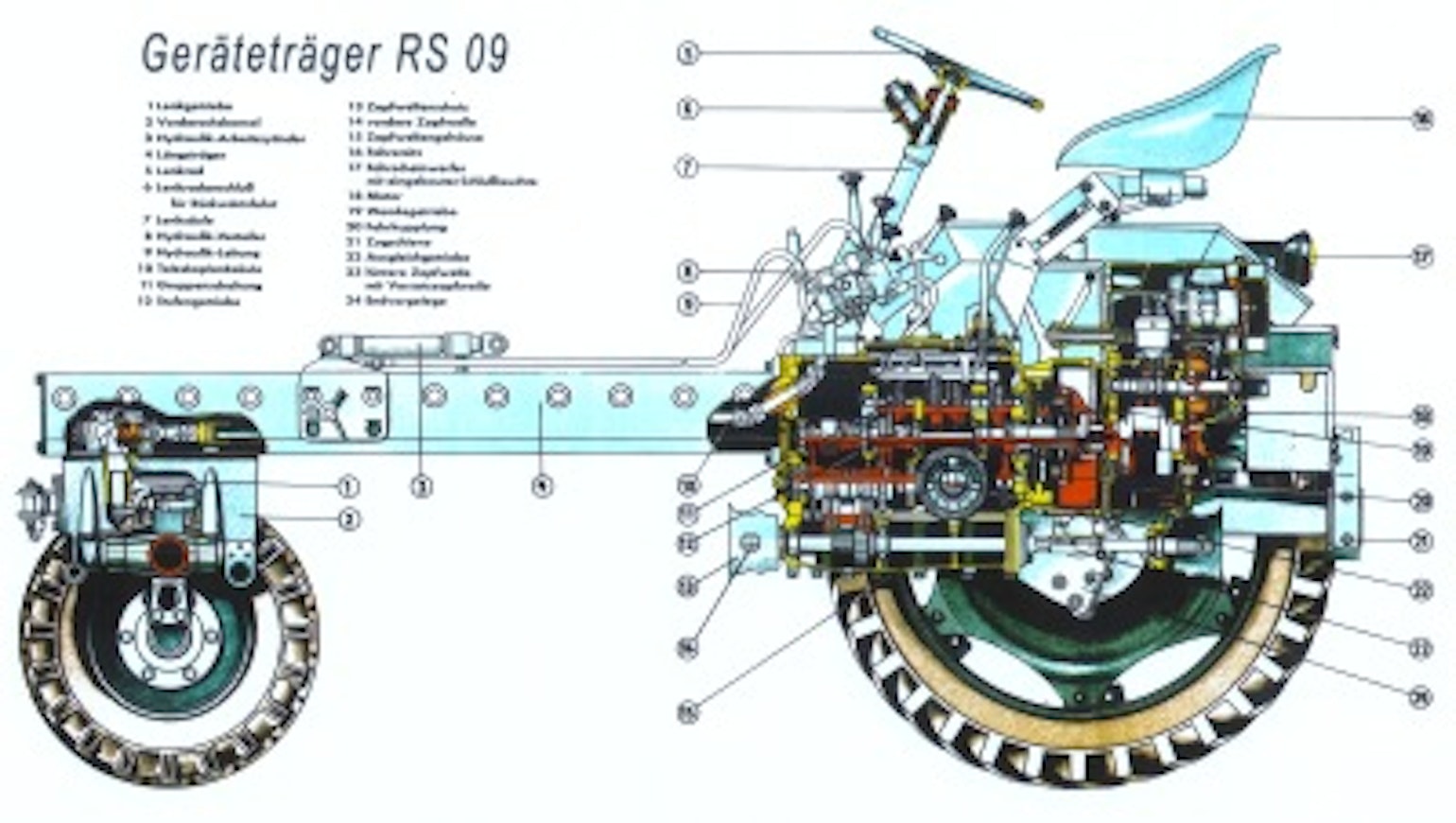

In 1957, the RS 09 was introduced, featuring a 1.02-liter V2 diesel engine manufactured under license from Austrian Warchalowski. Initially, it produced 18 horsepower, and later a 15-horsepower version was also offered. A new feature was the hydraulic lift. The predecessor’s green color was replaced by the same reddish-orange used also on Famulus tractors. In 1961, the engine was bored out to 1.15 liters, producing 16.5 horsepower. In 1962, an improved model, the RS 09/122, was introduced, which included, among other things, a reinforced gearbox and a restricted front axle tilt angle to prevent rollover. There were also many special versions of the RS 09, such as a model with a flatbed, a maize cultivation version, a vegetable cultivation version, and a mountain version. The country’s agricultural machinery production also produced dozens of different implements that utilized the RS’s capabilities.

In 1964, the country’s own expertise yielded a 25-horsepower V4 diesel that entered production. Instead of prototype designation RS 09/124, the model was marked GT 124. The basic structure remained the same, but the powertrain was reinforced to correspond to the increased power. Implement carriers were exported not only to Eastern Europe but also to African countries, among others.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelRS 09/15RS 09/109RS 09/122GT 124GT 124
Imported to FinlandYesNoNoNoNo
Years1957-621961-641962-641964-671967-72
Engine modelFD 212 KVD 9 SVL2 KVD 9 SVL4 KCD 8/8 SVL4 KCD 8/8 SVL
Cyl/Turbo/IntercoolerV2V2V2V4V4
Displacement1020 cm³1145 cm³1145 cm³1608 cm³1608 cm³
Bore x stroke85×90 mm90×90 mm90×90 mm80×80 mm80×80 mm
Rated power18/3000 hp DIN/rpm16,5-18/3000 hp DIN/rpm16,5-18/3000 hp DIN/rpm25/3000 hp DIN/rpm30/3000 hp DIN/rpm
Gears8+88+88+88+88+8
Reverserxxxxx
Speeds in km/h0,9-15,50,9-15,50,9-15,50,9-18,00,9-18,0
Hydr. flow l/min32 l/min32 l/min32 l/min--
Lift controlsmech.mech.mech.mech.mech.
PTO speeds540540540540540
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.mech.mech.
Turning circle m 2WD6.27.617.616.26.2
Front tyres 2WD6.00-166.00-166.00-166.00-166.00-16
Rear tyres 2WD7-368-368-368-368-36
Weight 2WD1140 kg1105 kg1590 kg1600 kg1600 kg
Height with cab(185) cm(185) cm(185) cm251 cm251 cm
Length (2WD/4WD)352 cm352 cm388 cm388 cm388 cm
Wheelbase (2WD/4WD)206-251 cm206-251 cm206-251 cm206-251 cm206-251 cm
Fuel tank---34 l-
