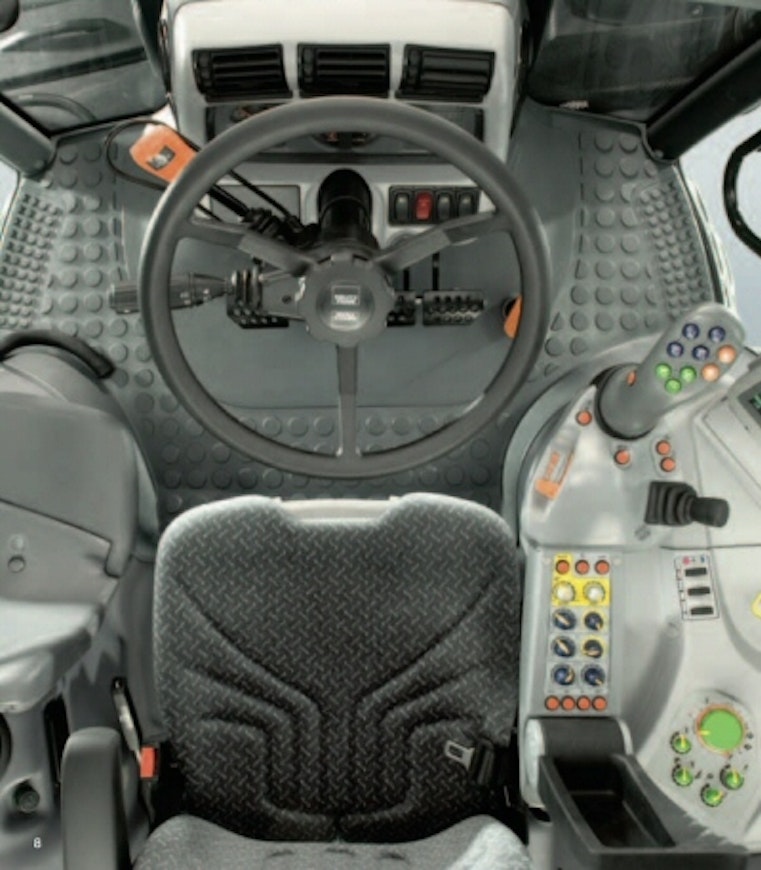

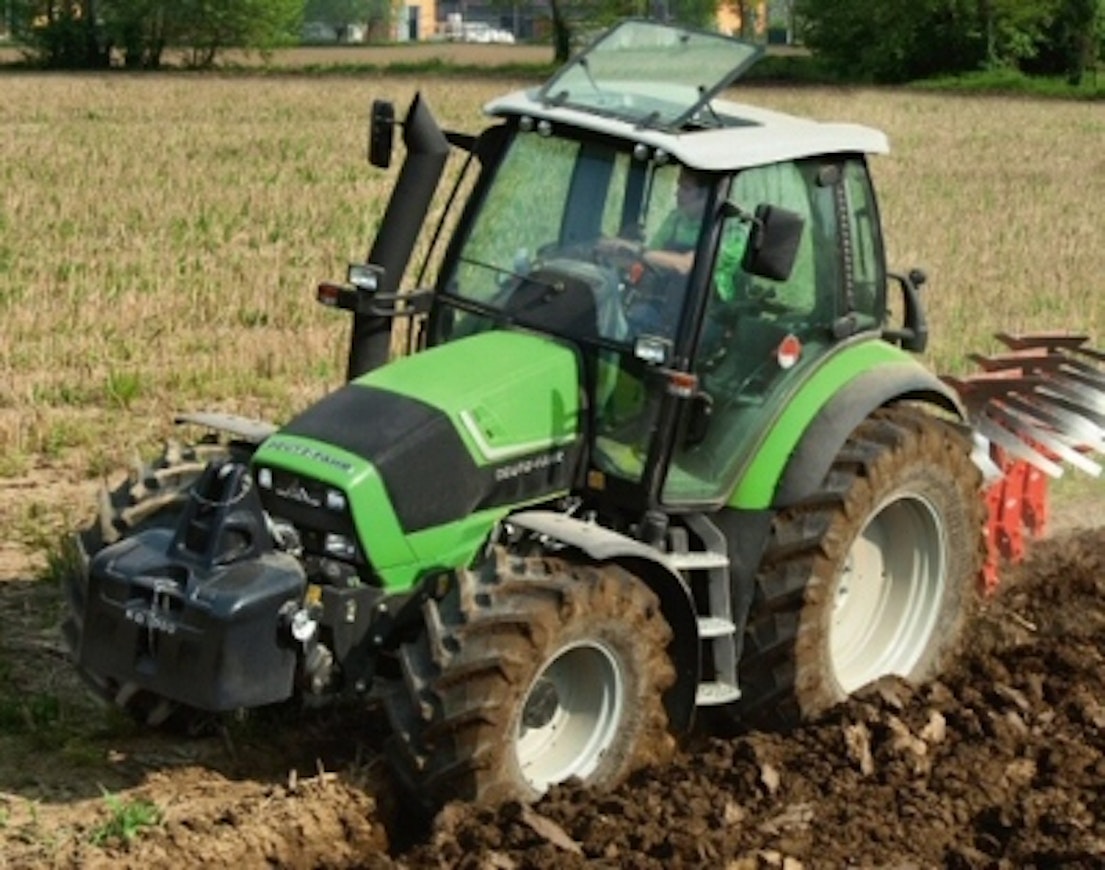

In the autumn of 2011, the stepless ZF Eccom 1.3 transmission was introduced to the Agrotron K series, resulting in the Agrotron TTV 410-430 and its parallel models Same Iron Continuo and Lamborghini R6 VRT. There was clearly more power, especially additional power, than in the K models with the same numbers, and the tires were larger. The equipment level corresponded to the Profiline level of the Agrotron K, so the hydraulics were load-sensing with a 120 l/min pump, and the control devices were centralized in the PowercomS armrest. In Finland, standard features included a 50 km/h top speed as well as cabin and front axle suspension.

This is an automated translation. Please report any issues in the translation.

Deutz-Fahr Agrotron TTV 410

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Deutz-Fahr Agrotron TTV 420

Deutz-Fahr Agrotron TTV 430

Deutz-Fahr Agrotron TTV 410-430

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Deutz-Fahr Agrotron TTV 410	Deutz-Fahr Agrotron TTV 420	Deutz-Fahr Agrotron TTV 430
Manufacturer name	Deutz-Fahr	Deutz-Fahr	Deutz-Fahr
Imported to Finland	No	Yes	Yes
Years	2011-13	2011-13	2011-14
Engine model	TCD2012L04	TCD2012L04	TCD2012L04
Cyl/Turbo/Intercooler	4TI	4TI	4TI
Displacement	4038 cm³	4038 cm³	4038 cm³
Bore x stroke	101×126 mm	101×126 mm	101×126 mm
Rated power	-	-	-
Max power	-	-	-
Torque	-	-	-
Gears	stepless	stepless	stepless
Synchronized gears	stepless	stepless	stepless
Powershift gears	stepless	stepless	stepless
Reverser	hydr.	hydr.	hydr.
Speeds in km/h	0,05-40/50	1,6-42,0/49,1	1,7-42,0/49,1
Max. speed	50 (40) km/h	50 (40) km/h	50 (40) km/h
Hydr. flow l/min	120 l/min	120 l/min	120 l/min
Hydraulic pressure	200 bar	200 bar	200 bar
Lift controls	elec.	elec.	elec.
Lift capacity	6220 kg	6220 kg	6220 kg
PTO speeds	540/750/ 1000/1400	540/750/ 1000/1400	540/750/ 1000/1400
Brakes	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	9.3	9.3	9.3
Front tyres 4WD	480/70R24	480/70R24	480/70R24
Rear tyres 4WD	520/70R38	520/70R38	520/70R38
Weight 4WD	5340 kg	5340 kg	5340 kg
Height with cab	294 cm	294 cm	294 cm
Length (2WD/4WD)	455 cm	455 cm	455 cm
Wheelbase (2WD/4WD)	242 cm	242 cm	242 cm
Fuel tank	180 l	180 l	180 l
Cab noise level	71 dB	71 dB	71 dB
Solid cab	x	x	x
Diff. lock	friction lock	friction lock	friction lock
Air suspension seat	x	x	x
Air conditioning	x	x	x
Creeper gear	x	x	x
