Siirry sivupalkkiinSiirry alaosaanDeutz-Fahr Agrotron 6145.4-6215








Here is the translation of the text to English:

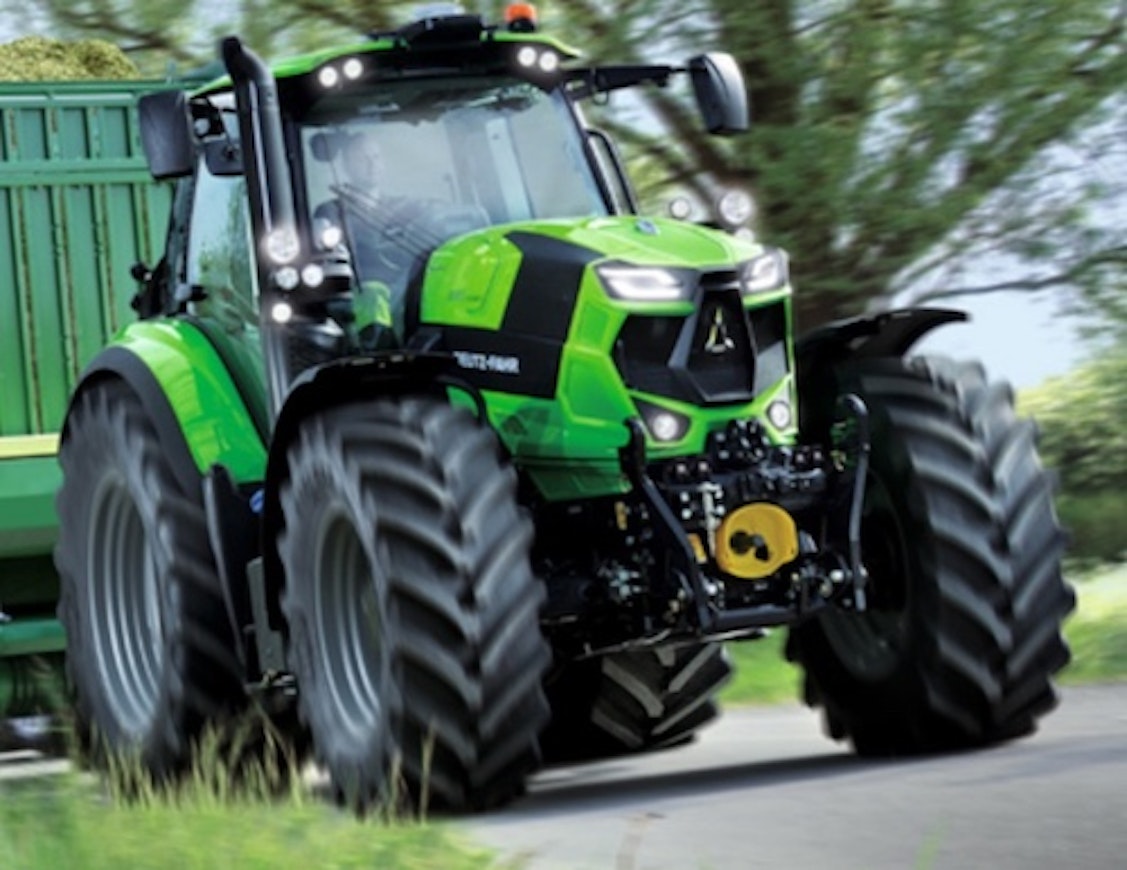

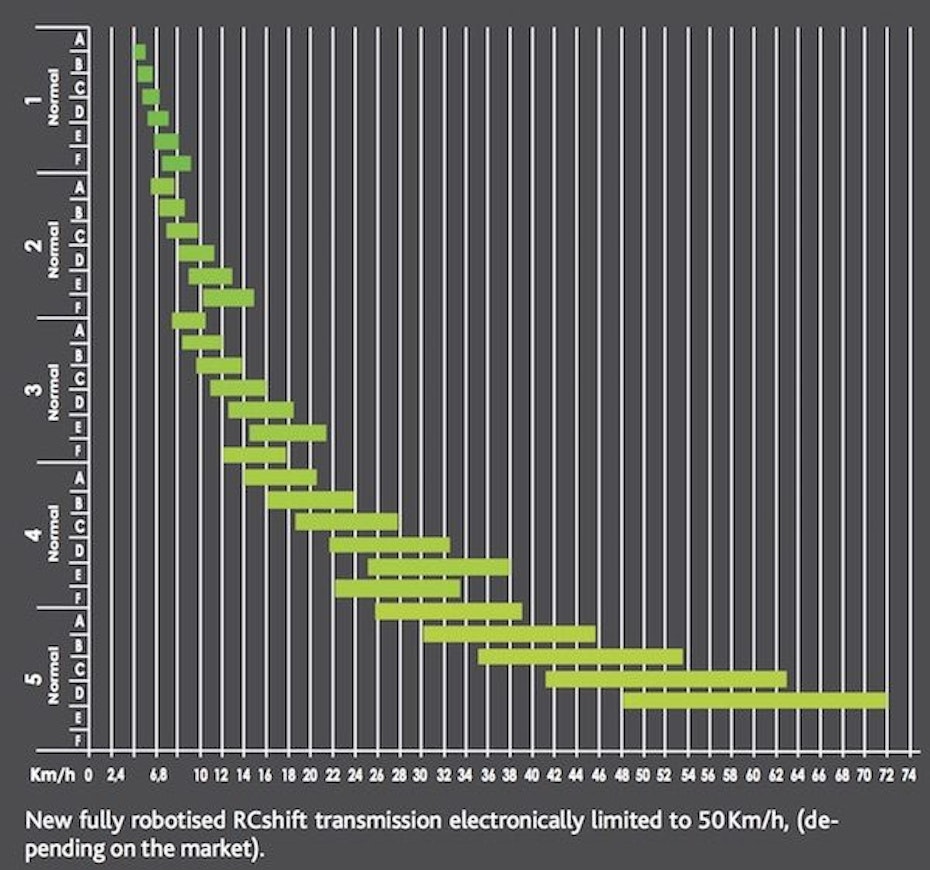

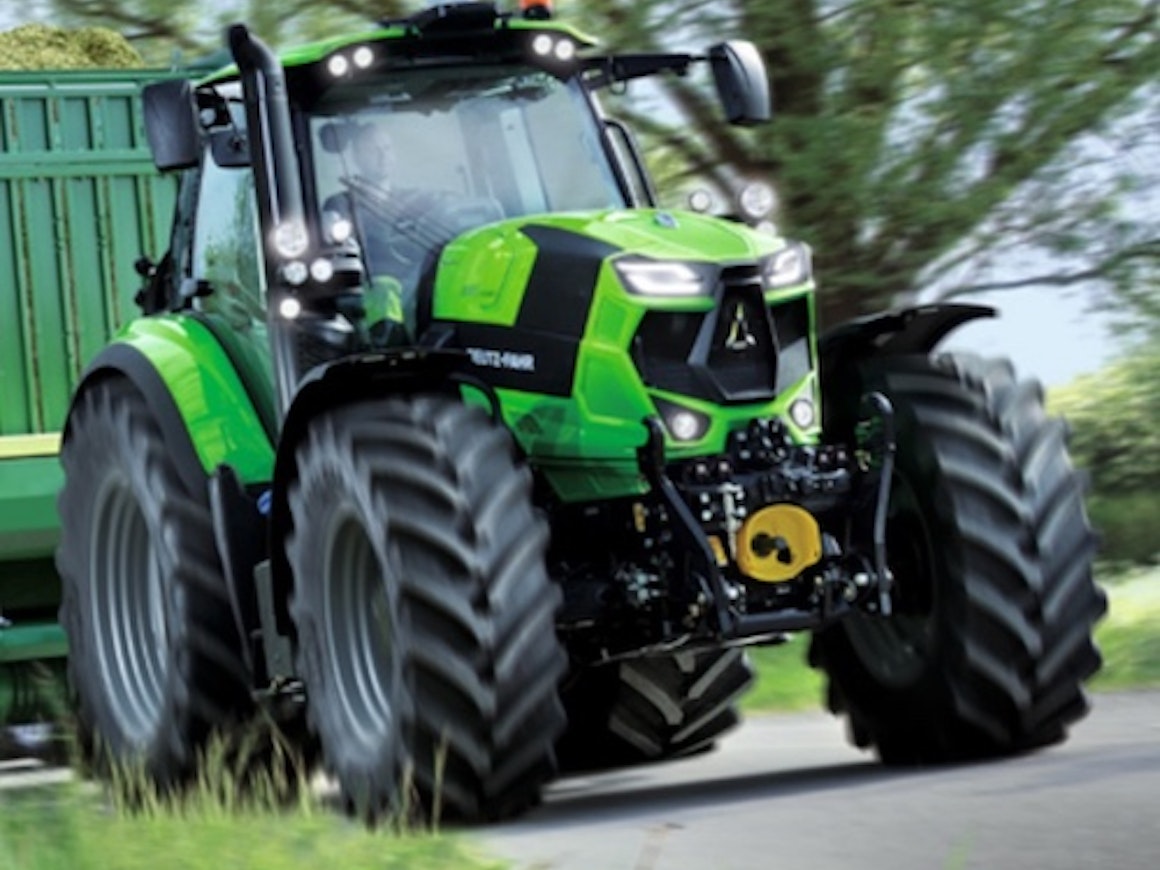

In the summer of 2016, the new DF 6-series tractors were introduced. All new models were equipped with 6-cylinder 6.1-liter Deutz engines. A special feature was that, unlike other brands, fuel was not injected into the particulate filter during combustion. The radiator cores were made of aluminum and were flipped upward for cleaning using gas springs. The basic transmission was a ZF 30+15 with a six-speed powershift and a mechanical main gear lever. The greatest attention was given to the new robotic transmission RCShift. All gears could be shifted automatically if desired. Powershift gears could also be skipped when necessary. A speed of 50 km/h was achieved at 1447-1530 rpm depending on the model. Crawl gears were standard in Finland, resulting in a total of 54+27 gears. The hydraulic output was 84 l/min with an open system. In Finland, a 120 l/min load-sensing hydraulic system and 4 electric spools were standard. The lifting capacity was 9200-10000 kg. The front axle was Carraro on the three smaller models and Dana on the larger ones. The front axle suspension was hydraulic.

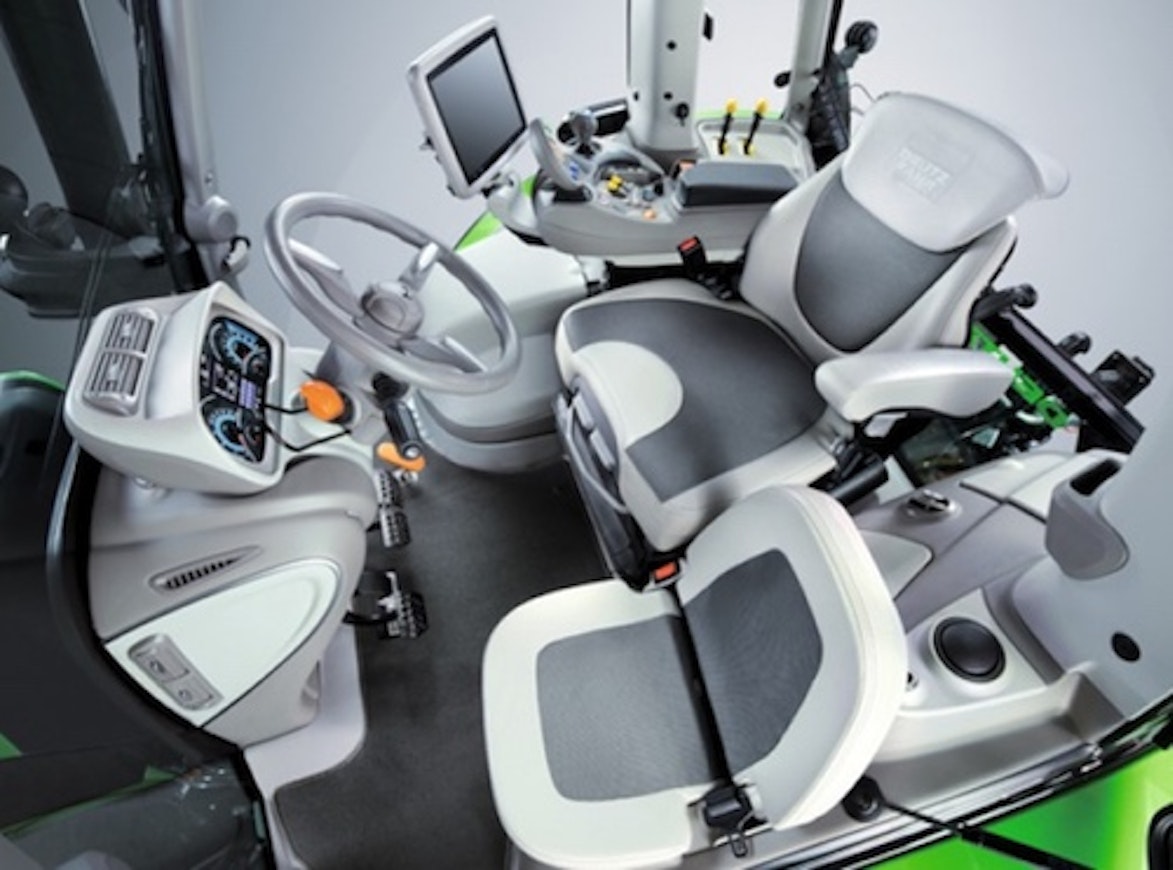

The cab remained mostly unchanged, but the roof section was renewed and insulation from the tractor frame improved. Air conditioning, an air-suspended seat, and automatic four-wheel drive and differential lock were standard equipment. In Finland, an armrest control panel, mechanical cab suspension, and swiveling front fenders were also standard. As an option, RCShift models could be equipped with a 12” terminal.
For the year 2022, power ratings changed by 1 hp due to the transition to Stage V emission standards. The lineup was complemented from the lower end by the 6145.4 model.
If you need any further assistance, feel free to ask!
This is an automated translation. Please report any issues in the translation.
| Model | Deutz-Fahr Agrotron 6145.4 | Deutz-Fahr Agrotron 6155.4 | Deutz-Fahr Agrotron 6165.4 | Deutz-Fahr Agrotron 6175.4 | Deutz-Fahr Agrotron 6155 | Deutz-Fahr Agrotron 6165 | Deutz-Fahr Agrotron 6175 | Deutz-Fahr Agrotron 6185 | Deutz-Fahr Agrotron 6205 | Deutz-Fahr Agrotron 6215 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr | Deutz-Fahr |
| Imported to Finland | No | Yes | Yes | Yes | No | Yes | Yes | Yes | Yes | Yes |
| Years | 2022-22 | 2017-22 | 2017-22 | 2017-22 | 2016-22 | 2016-22 | 2016-22 | 2016-22 | 2016-22 | 2016-22 |
| Engine model | TCD4.1 L04 | TCD4.1 L04 | TCD4.1 L04 | TCD4.1 L04 | TCD6.1 L06 | TCD6.1 L06 | TCD6.1 L06 | TCD6.1 L06 | TCD6.1 L06 | TCD6.1 L06 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - |
| Gears | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 |
| Synchronized gears | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 | 30+15 |
| Powershift gears | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 | 3,4-40/50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 84 (120/160) l/min | 84 (120/160) l/min | 84 (120/160) l/min | 84 (120/160) l/min | 84 (120/160) l/min | 84 (120/160) l/min | 84 (120/160) l/min | 120 (160) l/min | 120 (160) l/min | 120 (160) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 6200/9200 kg | 6200/9200 kg | 6200/9200 kg | 6200/9200 kg | 9700 kg | 9700 kg | 9700 kg | 9700 kg | 10000 kg | 10000 kg |
| PTO speeds | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7.4 | 7.4 | 7.4 | 7.4 | 11 | 11 | 11 | 11 | 11 | 11 |
| Front tyres 4WD | 420/85R28 | 420/85R28 | 420/85R28 | 420/85R28 | 480/70R28 | 480/70R28 | 540/65R28 | 540/65R28 | 540/65R28 | 540/65R28 |
| Rear tyres 4WD | 520/85R38 | 520/85R38 | 520/85R38 | 520/85R38 | 520/85R38 | 520/85R38 | 650/65R38 | 650/65R38 | 650/65R38 | 650/65R38 |
| Weight 4WD | 7080 kg | 7080 kg | 7080 kg | 7080 kg | 7200 kg | 7200 kg | 7200 kg | 7200 kg | 7930 kg | 7930 kg |
| Height with cab | 303 cm | 303 cm | 303 cm | 303 cm | 303 cm | 303 cm | 308 cm | 308 cm | 315 cm | 315 cm |
| Length (2WD/4WD) | 476 cm | 476 cm | 476 cm | 476 cm | 494 cm | 494 cm | 499 cm | 499 cm | 507 cm | 507 cm |
| Wheelbase (2WD/4WD) | 254 cm | 254 cm | 254 cm | 254 cm | 277 cm | 277 cm | 277 cm | 277 cm | 285 cm | 285 cm |
| Fuel tank | 225+AB28 l | 225+AB28 l | 225+AB28 l | 225+AB28 l | 280+AB35 l | 280+AB35 l | 280+AB35 l | 280+AB35 l | 280+AB35 l | 280+AB35 l |
| Cab noise level | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
