Deutz 6206 – 8006

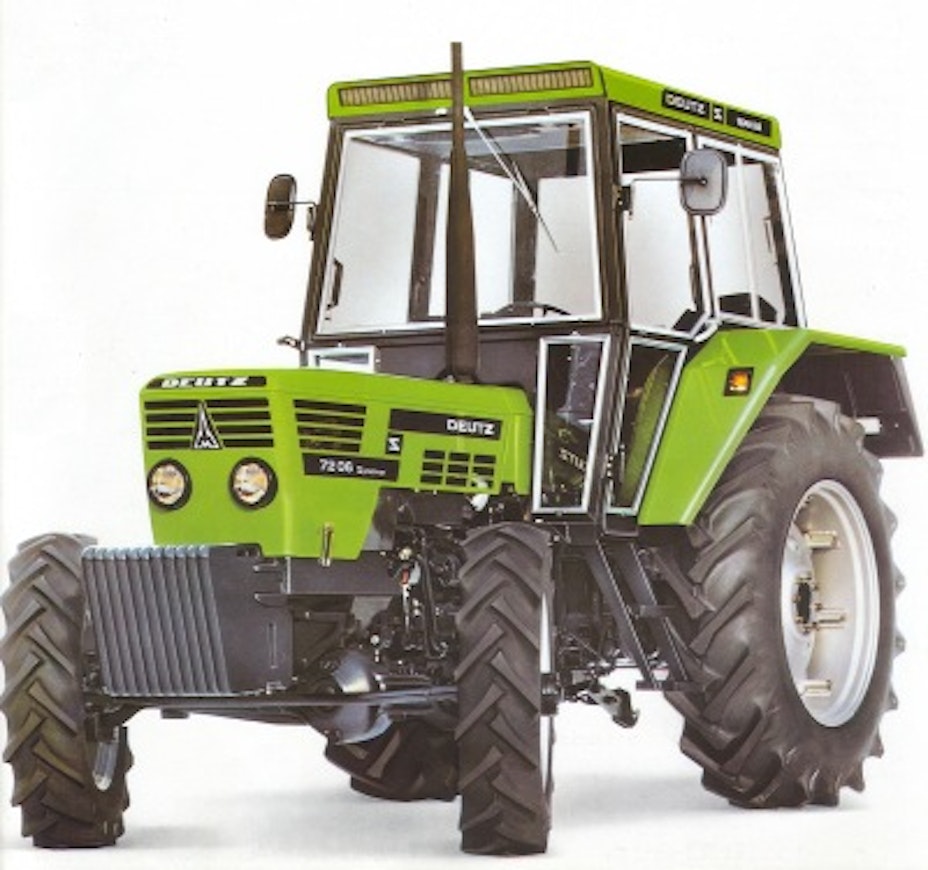

78DF7206Special
76Deutz7206
78DF7206Special
76Deutz7206
Manufacturer
Models
Deutz 6206, Deutz 6806, Deutz 7206, Deutz 8006
Years
1974-81
Info

Here is the English translation of the text you provided:

In 1974, the model series was updated and the color scheme was changed. The green was now lighter, and the body was dark purple. In 1978, the body color changed to dark gray and the rims to silver. Torque figures were improved to the level of 11-13%.

The 6006 was replaced by the 6206. The transmission was the same 8+4 TW 50 as in the smaller models. The main gears were synchronized, but the range gears, including the reverse gear, were not. An optional 9th gear was available, enabling a speed of 30 km/h. The lifting capacity was initially smaller than before at 2000 kg, but in later models increased to 2400 kg.

A new intermediate model was the 6806, which was technically equivalent to the 7206 but more compact in size. From 1978 onward, these models featured a fully synchronized 12+4 transmission.

Starting with the 6806, the cab was flat-floored and gear levers located on the dashboard. The front tires of the four-wheel-drive models were smaller than before. The four-wheel-drive models featured hydrostatic steering. From 1976 on, starting with the 6206, a factory-installed Special cab was available. Also from 1976 onwards, a front axle limited-slip differential was an optional feature on the 8006.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDeutz 6206Deutz 6806Deutz 7206Deutz 8006
Options
Manufacturer nameDeutzDeutzDeutzDeutz
Imported to FinlandNoNoNoNo
Years1974-811974-811974-811974-78
First year sold1974197419741974
Last year sold1981198119811978
Engine modelF4L 912F4L 912F4L 912F6L 912
Cyl/Turbo/Intercooler4446
Displacement3770 cm³3770 cm³3770 cm³5652 cm³
Bore x stroke100×120 mm100×120 mm100×120 mm100×120 mm
Rated power hp/rpm DIN60/205067/230070/230080/2100
Rated power60677080
Rated speed2050230023002100
Torque Nm/rpm DIN200/1600230/1600237/1600324/1400
Gears8+4 (9+4)9+3/12+49+3/12+416+8
Synchronized gears8 (9)6/12+46/12+416+8
Speeds in km/h2,2-25,01,8-25,01,8-25,01,0-29,0
Hydr. flow l/min30.9 l/min34.7 l/min34.7 l/min42.9 l/min
Lift controlsmech.mech.mech.mech.
Lift capacity2000/2400 kg2600 kg2600 (3300) kg3600 kg
PTO speeds540 (1000)540/1000540/1000540/1000
Brakesdry discdrum brakesdrum brakesdrum brake
Steeringmech./hydrost.mech./hydrost.mech./hydrost.hydrost.
Turning circle m 2WD7.47.68.29.4
Turning circle m 4WD9.49.69.810
Front tyres 2WD7,50-167,50-187,50-187,50-20
Front tyres 4WD10.5-209.5-249.5-2412.4-24
Rear tyres 2WD12,4-3616,9-3013,6-3818,4-34
Rear tyres 4WD12.4-3616.9-3016.9-3018.4-34
Weight 2WD2420 kg2710 kg2760 (3130) kg4000 kg
Weight 4WD2720 kg3130 kg3180 (3550) kg4300 kg
Height with cab248 (272) cm249 (272) cm249 (272) cm275 cm
Length (2WD/4WD)368 cm371 cm396 cm415 cm
Wheelbase (2WD/4WD)213/218 cm215/218 cm241 cm255 cm
Fuel tank70 l92 l92 l92 l
Solid cabxxxx
Diff. lock---76-> opt.
Creeper gearopt.--opt.
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
