Siirry sivupalkkiinSiirry alaosaanCaterpillar Challenger 65 C – 85 D






Here is the translated text in English:

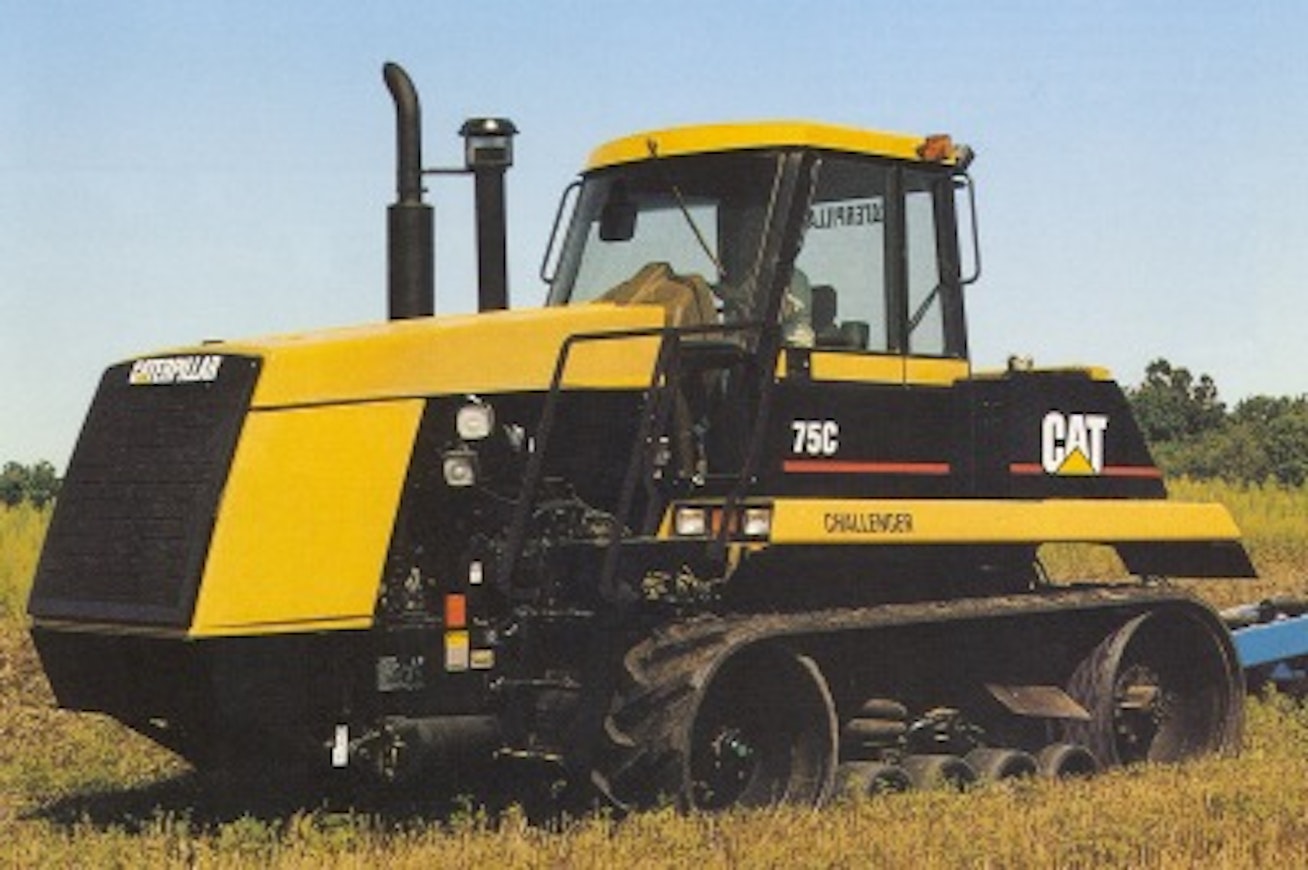

For the year 1993, the Challengers were updated and the model designation was appended with a C. The hydraulic and steering system was renewed: steering was now done using a hydraulic pump and hydraulic motors instead of a mechanical implementation. The brakes were now oil-bath type. The exhaust pipe and air intake were moved closer to the right pillar of the cab, and the fuel tank was slightly enlarged. To facilitate access to the cab, proper steps were added and the grab handles were renewed. The instrument panel was also completely new, and the trip computer was placed in a visible location at the top part of the dashboard.
The engines remained unchanged: the 65 C had an output of 285 hp and the 75 C had 325 hp. Ground pressure was specified as 0.39 bar, and for the 75 C equipped with wider tracks, 0.35 bar. In 1994, the Challenger 70 C was introduced, which had the engine of the 65 C and the transmission and undercarriage of the 75 C. Correspondingly, the 75 C was given a parallel model of the same power called the 85 C. The transmissions of the 75 C and 85 C were optimized for low speeds. In the later D series, the 85 C was replaced by the 370-horsepower 85 D, and similarly the 75 C was replaced by the 75 D. These versions were not brought to Europe, where the sales models remained the 65 C and 75 C until 1998.
This is an automated translation. Please report any issues in the translation.
| Model | Challenger 65 C | Challenger 75 C | Challenger 65 D | Challenger 75 D | Challenger 85 D |
|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No |
| Years | 1992-98 | 1992-98 | 1996-98 | 1996-98 | 1996-98 |
| Engine model | 3306 DITA | 3176C | 3306 DITA | 3176C | 3196 ATAAC |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 10466 cm³ | 10308 cm³ | 10466 cm³ | 10308 cm³ | 12000 cm³ |
| Bore x stroke | 120,65×152,4 mm | 125×139,7 mm | 120,65×152,4 mm | 125×139,7 mm | 130×150 mm |
| Rated power | 289/2100 hp DIN/rpm | 330/2100 hp DIN/rpm | 300/2100 hp DIN/rpm | 330/2100 hp DIN/rpm | 370/2100 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 10+2 | 10+2 | 10+2 | 10+2 | 10+2 |
| Synchronized gears | powershift | powershift | powershift | powershift | powershift |
| Powershift gears | powershift | powershift | powershift | powershift | powershift |
| Reverser | powershift | powershift | powershift | powershift | powershift |
| Speeds in km/h | 4,2-29,3 | 4,2-29,3 | 4,2-29,1 | 4,2-29,1 | 4,5-29,1 |
| Hydr. flow l/min | 104 l/min | 104 l/min | 103.5 l/min | 103.5 l/min | 103.5 l/min |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 11500 kg | 11500 kg | 5579 kg | 5579 kg | - |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Rear tyres 4WD | 63.5×272 | 70×272 | 63.5×272 | 63.5×272 | 63.5×272 |
| Weight 4WD | 13690 kg | 13690 kg | 14925 kg | 14878 kg | 15286 kg |
| Height with cab | 324 cm | 324 cm | 324 cm | 324 cm | 324 cm |
| Length (2WD/4WD) | 589 cm | 589 cm | 589 cm | 589 cm | 589 cm |
| Fuel tank | 719 l | 719 l | 792 l | 768 l | 768 l |
| Cab noise level | 77/73,5 dB | 77/73,5 dB | - | - | - |
| Solid cab | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
