Case IH 7010-9010 AFX

04CaseIHAFX8010

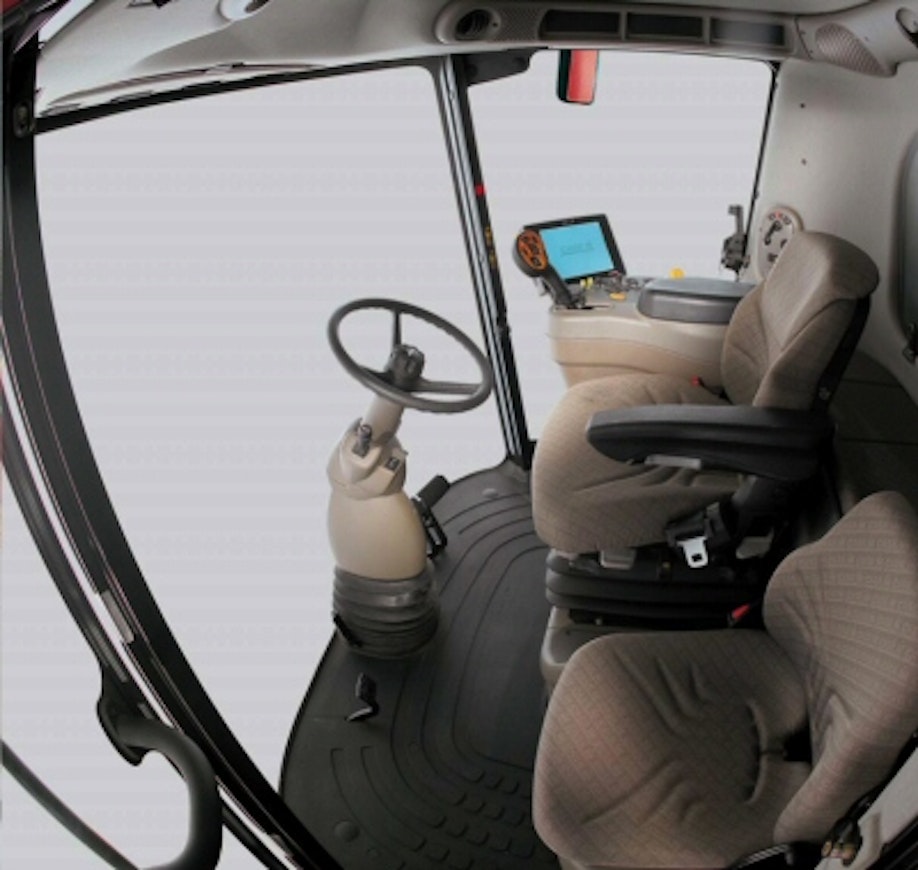

04CaseIHAFX8010ohjaamo
04CaseIHAFX8010
04CaseIHAFX8010ohjaamo
Manufacturer
Models
Case IH AFX8010, Case IH Axial-Flow 7010, Case IH Axial-Flow 8010, Case IH Axial-Flow 9010
Years
2003-08
Info

Here is the translation of the provided text to English:


The first batch of Case IH's larger Axial Flow combine harvester, designated AFX8010, was produced for the 2003 season. Following the common trend, the side panels featured sleek shapes enabled by plastic materials. The engine was a 10.3-liter, 24-valve unit. The rated power was 400 hp, and while unloading the grain tank on the go, a maximum power of 446 hp was available. The grain tank had a capacity of 105 hectoliters for Europe, and it was promised to empty within a minute. The header units manufactured at New Holland's factory in Belgium came in standard (450 mm), long (600 mm), and lengths adjustable from the cab (510-1010 mm).

The cylinder diameter, like the AFX 2388, was 762 millimeters. The separation area was increased from 135 degrees to 180 degrees. The number of V-belts in the combine was reduced from eight to three by using a hydro-mechanical CVT transmission for driving the cylinder. There were no daily lubrication points at all. The sieving area was increased and could tilt on a slope up to 17 degrees. The cab was larger than before. The touchscreen was similar to that of the 2388 model. The electrical system was based on a CAN bus.

In 2006, a lower-powered model, the 7010, was introduced, with a narrower drivetrain than the 8010. In 2007, the 9010 was introduced, featuring a 13.0-liter engine. In the USA, the lineup also included the 5010 model equipped with a 6.7-liter engine.


This is an automated translation. Please report any issues in the translation.

Technical data
ModelCase IH AFX8010Case IH Axial-Flow 7010Case IH Axial-Flow 8010Case IH Axial-Flow 9010
Imported to FinlandNoNoNoNo
Years2003-062006-082006-082007-08
EngineIvecoIvecoIvecoIveco
Engine typeCursor 10Cursor 9Cursor 10Cursor 13
Displacement10308 cm³8709 cm³10308 cm³12880 cm³
Cyl/turbo6TI6TI6TI6TI
Power----
Fuel tank1000 l1000 l1000 l1000 l
Transmissionhydr.hydr.hydr.hydr.
Gears4444
Cutting width610 cm610 cm732 cm732 cm
Cutting width, alternative732-915 cm732-915 cm915 cm915 cm
Reel diameter107 cm107 cm107 cm107 cm
Header length45 cm45 cm45 cm45 cm
Threshing cyl. diameter76 cm76 cm76 cm76 cm
Threshing cyl. width261 cm261 cm261 cm261 cm
Number of straw walkers1 cylinder1 cylinder1 cylinder1 cylinder
Total screening area650540650650
Overall lenght796+pöytä cm796+pöytä cm796+pöytä cm796+pöytä cm
Width without header350 cm351 cm351 cm351 cm
Height with cabin391 cm390 cm390 cm390 cm
Weight without header16182 kg14943 kg16488 kg16800 kg
Grain tank105 hl105 hl105 hl105 hl
Unl. height436 cm436 cm436 cm462 cm
Tyres front (Finland)650/75R32710/70R38710/70R38900/60R32
Tyres front, alternative1050/50R321050/50R321050/50R321050/50R32
Tyres rear (Finland)460/70R24460/70R24460/70R24600/65R28
Tyres rear, alternative600/65R28600/65R28600/65R28-
Reel forward/backw. adjustmenthydr. steeringhydr. steeringhydr. steeringhydr. steering
Reel speed adjustmenthydr. steeringhydr. steeringhydr. steeringhydr. steering
Threshing cyl. speed adjustmenthydr. steeringhydr. steeringhydr. steeringhydr. steering
Bottom sieveadj.adj.adj.adj.
Brakesdisc brakesdisc brakesdisc brakesdisc brakes
Reverserxxxx
Air conditioningxxxx
Heatingxxxx
Grain loss indicatorxxxx
Floating cutting platformxxxx
Autom. control of cutting heightxxxx
Slope levellingxxxx
Cutting platform lateral tiltxxxx
Type of cutting platform floatingautom.autom.autom.autom.
