Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 9280-9380 Delta

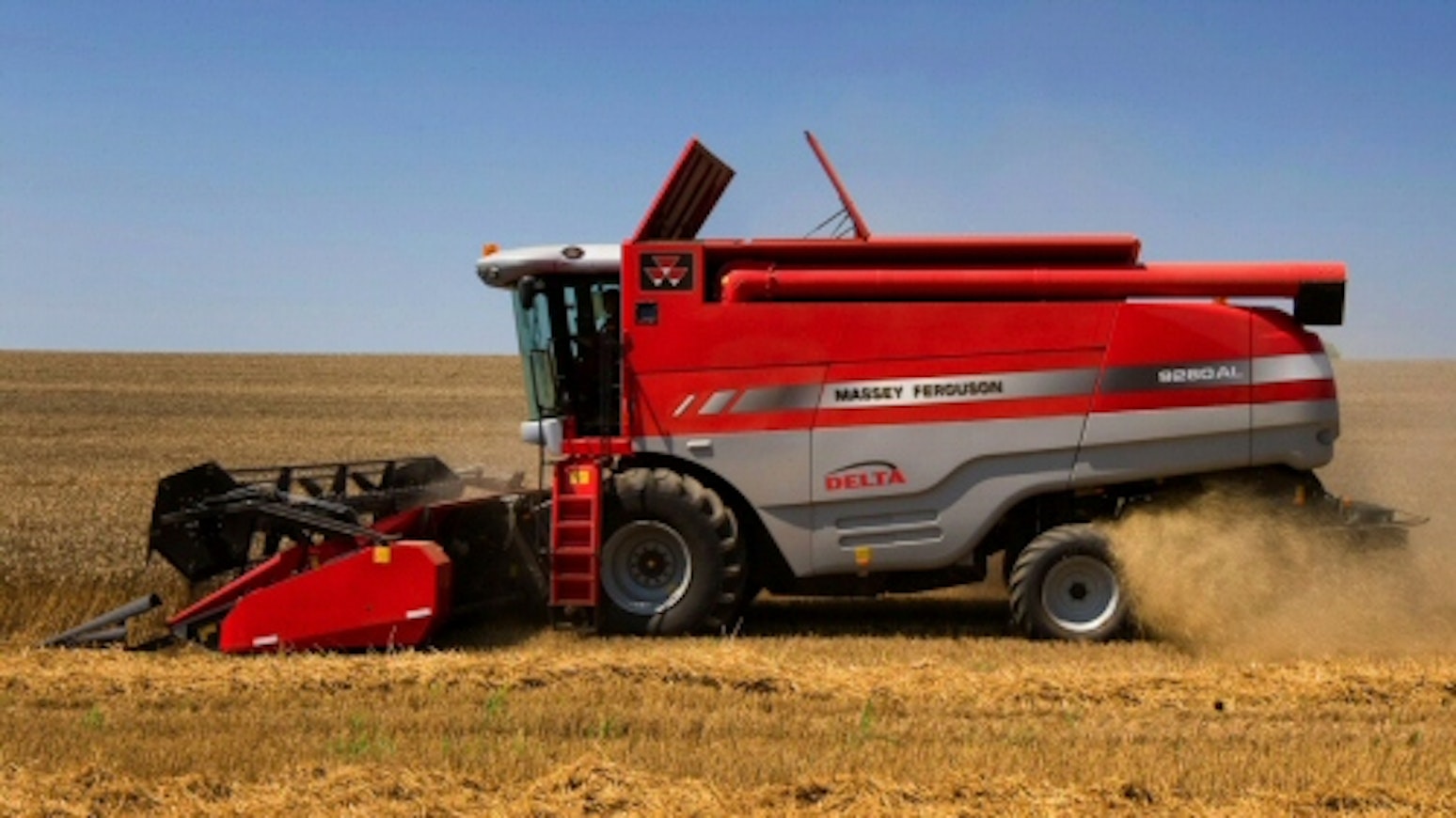

The last combine harvester designed in Randers, Denmark, is the hybrid combine harvester MF Delta, introduced in the autumn of 2009. It was also intended to be produced in Denmark, but before mass production began, Agco decided to close the factory and move production to Italy, to the Laverda plant, which it simultaneously acquired entirely for itself. In 2009, 220 combines had been manufactured in Denmark and 320 in Italy.

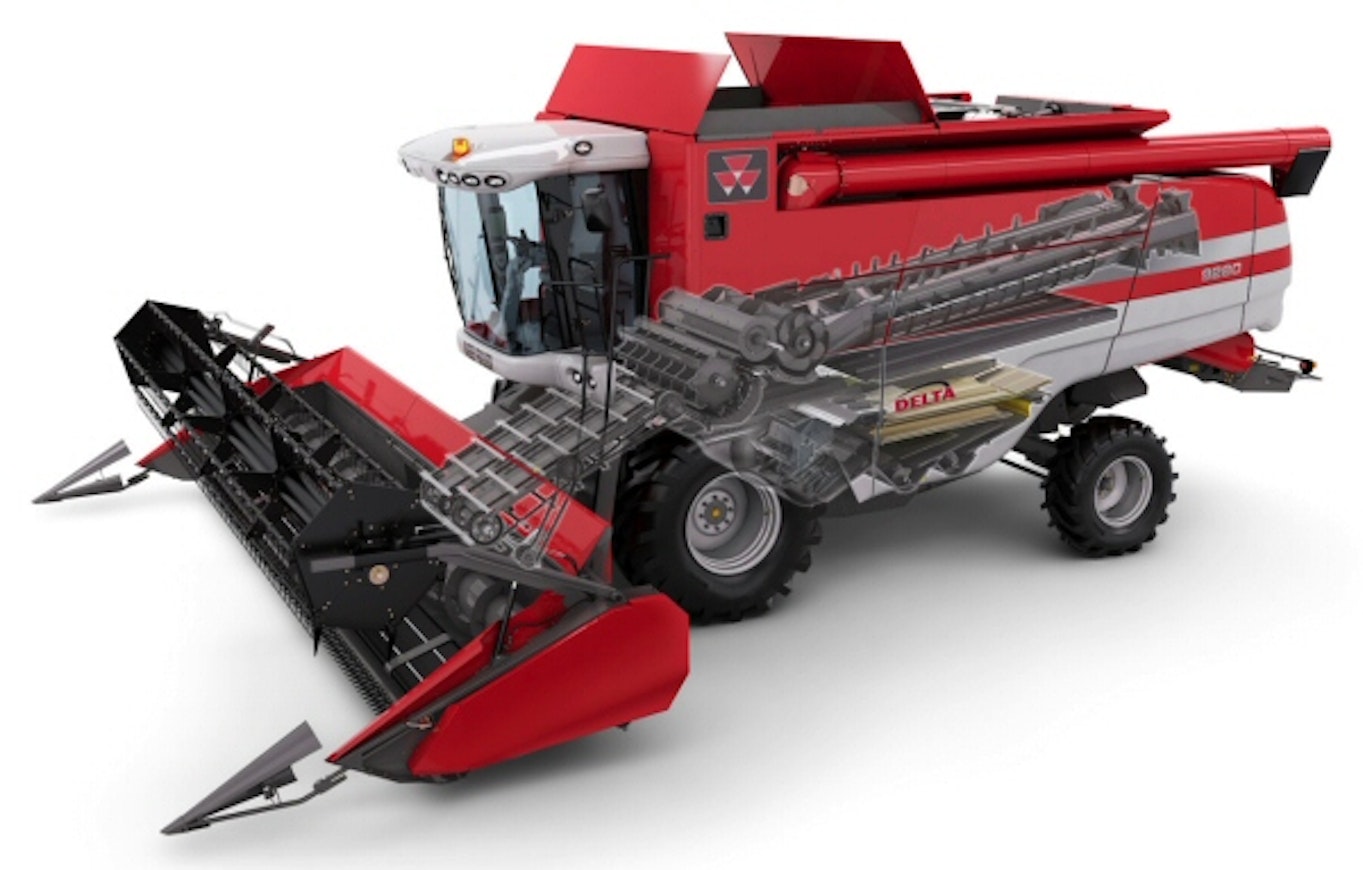

The Delta was based on the Centora, introduced a year earlier. Instead of threshing bars, it had two longitudinal rotors. Behind the threshing drum was a straw walker and a rotor feeder that divided the straw mass between the two rotors. A special feature mentioned was a cleaning system utilizing the Venturi effect, where a low-pressure area formed between two fans. The cutting platform was a Power Flow equipped with a belt conveyor. The Delta was also available as an AL model with a 12-degree tilt.
The engine in this model was the newly introduced 7-cylinder 9.8-liter Agco Power, delivering 500 hp including boost power. The engine used SCR technology. The Delta reached the market for the 2011 harvest season and was also sold as the Fendt X-series.
For 2014, a new Skyline cab and Fendt's 10.4" Vario terminal were introduced as the control devices.
Save
This is an automated translation. Please report any issues in the translation.
| Model | MF 9280 Delta | MF 9380 Delta |
|---|---|---|
| Imported to Finland | No | No |
| Years | 2010-13 | 2014-19 |
| Engine | Agco Power | Agco Power |
| Engine type | 98 | 98 |
| Displacement | 9800 cm³ | 9800 cm³ |
| Cyl/turbo | 7TI | 7TI |
| Power | - | - |
| Fuel tank | 750+AB103 l | 1000+AB120 l |
| Transmission | hydr. | hydr. |
| Gears | 4 | 4 |
| Speed min-max. | 0-25 km/h | 0-25 km/h |
| Cutting width | 770 cm | 770 cm |
| Cutting width, alternative | 680-920 cm | 920-1070 cm |
| Header length | 114 cm | 114 cm |
| Threshing cyl. diameter | 60 cm | 60 cm |
| Threshing cyl. width | 168 cm | 168 cm |
| Number of straw walkers | 2 rotors | 2 rotors |
| Area of walkers | 354 dm² | 354 dm² |
| Lenght of walkers | 420 cm | 420 cm |
| Straw shieve | 295 dm² | 295 dm² |
| Bottom shieve | 235 dm² | 235 dm² |
| Total screening area | 530 | 530 |
| Overall lenght | 1020+pöytä cm | 995+pöytä cm |
| Overall width | 963 cm | 963 cm |
| Width without header | 380 cm | 386 cm |
| Height with cabin | 400 cm | 400 cm |
| Weight without header | 17360 kg | 18400 kg |
| Grain tank | 105 (95) hl | 125 (105) hl |
| Unl. height | 450 cm | 450 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 500/70-24 | 500/70-24 |
| Tyres rear, alternative | 600/55-26.5 | 600/55-26.5 |
| Reel forward/backw. adjustment | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. |
| Threshing cyl. speed adjustment | elec. | elec. |
| Bottom sieve | adj. | adj. |
| Brakes | wet disc | wet disc |
| Reverser | x | x |
| Air conditioning | x | x |
| Heating | x | x |
| Grain loss indicator | x | x |
| Floating cutting platform | x | x |
| Autom. control of cutting height | x | x |
| Slope levelling | opt. | opt. |
| Cutting platform lateral tilt | x | x |
| Type of cutting platform floating | autom. | autom. |
