Massey Ferguson 30-31

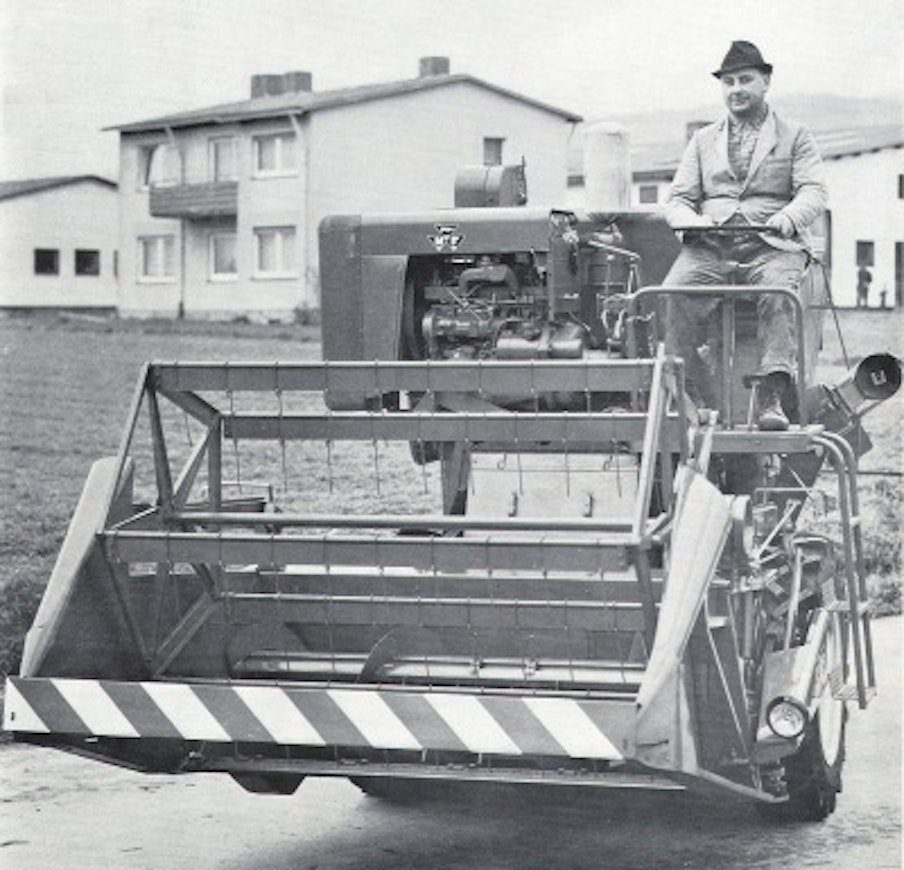

72MF31

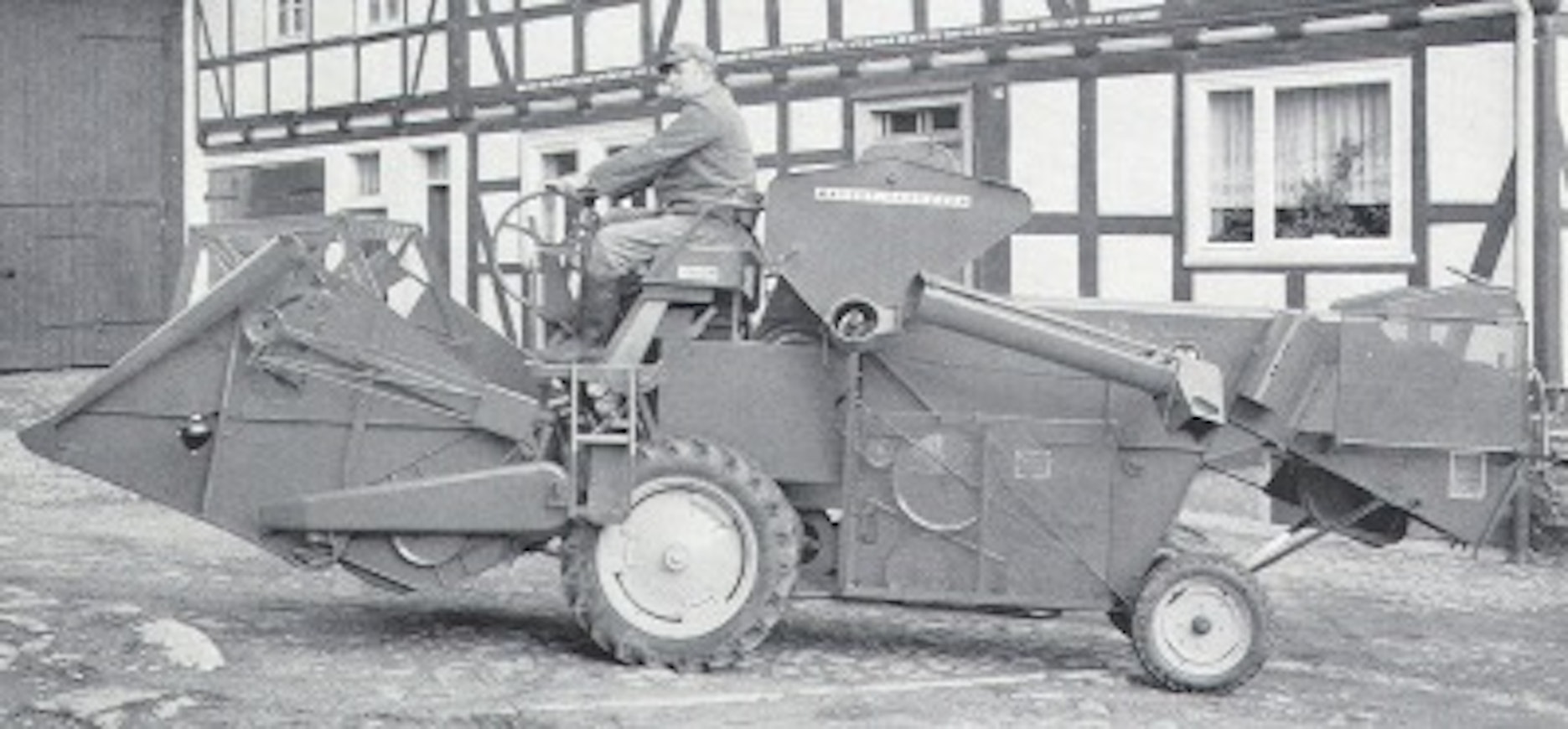

73MF30

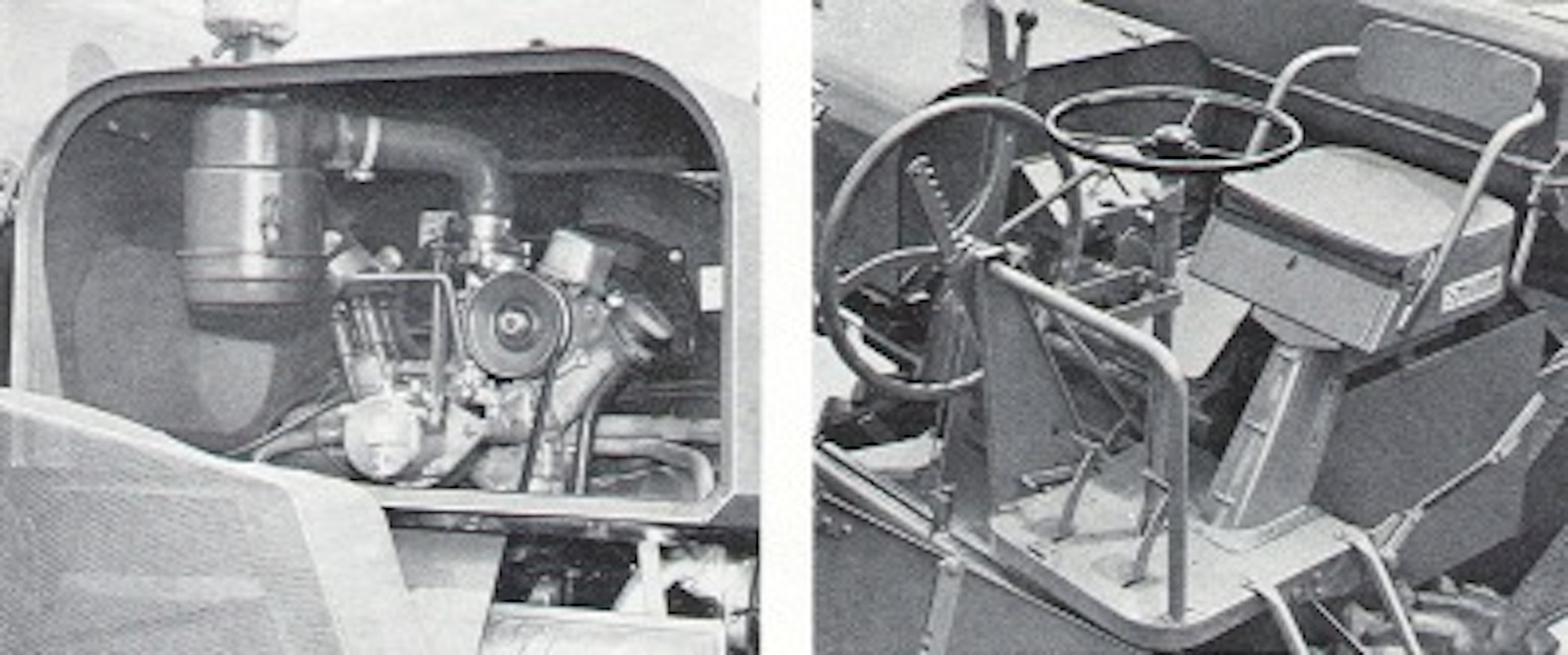

73MF30ohjaamo
72MF31
73MF30
73MF30ohjaamo
Manufacturer
Models
MF 30, MF 30, MF 31
Years
1962-75
Info

MF 30 and 31 were among the smallest and most affordable combine harvesters on the market. The cutting width was 175 cm on the 30 and 210 cm on the 31. The threshing drum width was 60 cm, with a diameter of 45 cm on the 30 and 56 cm on the 31. The driving speed was continuously adjustable by a mechanically operated variator. As usual, the combine could be delivered either with sack or tank equipment. The tank capacity was 6.5 hectoliters on the 30 and 10 hectoliters on the 31.

The 31 featured hydraulic brakes, hydraulic height adjustment for the cutting table, and height adjustment for the straw walker, a feed conveyor instead of drum feeding, and a cylinder sieve for separating weed seeds. In Finland, the Perkins 1.8-liter diesel engine was standard. In Finland, sales of the 30 ended already in 1967, after which it received the same sieving system as the 31. Both models remained in production until the mid-1970s.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMF 30MF 30MF 31
Imported to FinlandYesNoYes
Years1962-??-751962-75
EngineVWVWPerkins
Engine typebens.bens.A4.107
Displacement1192 cm³1192 cm³1760 cm³
Cyl/turbo444
Power29 hp DIN29 hp DIN38 hp DIN
Transmissionmech.mech.mech.
Gears333
Speed min-max.1,5-15,3 km/h1,5-15,3 km/h1,4-16,4 km/h
Cutting width175 cm175 cm210 cm
Reel diameter106 cm106 cm106 cm
Header length31 cm31 cm31 cm
Threshing cyl. diameter45 cm56 cm56 cm
Threshing cyl. width60 cm60 cm60 cm
Number of straw walkers333
Area of walkers122 dm²122 dm²122 dm²
Lenght of walkers200 cm200 cm200 cm
Straw shieve41 dm²47 dm²47 dm²
Bottom shieve42 dm²45 dm²45 dm²
Total screening area92103103
Overall lenght598 cm603 cm655 cm
Overall width237 cm237 cm260 cm
Height without cabin238 cm238 cm260/290 cm
Weight without cabin1700 kg1940 kg2350 kg
Grain tank6,5 (lisäv.) hl6,5 (lisäv.) hl7/10 (lisäv.) hl
Tyres front (Finland)8.00-248.00-2410.00-24
Tyres front, alternative8.3-24-14.50-20
Tyres rear (Finland)4.00-154.00-157.00-12
Reel forward/backw. adjustmentwrenchwrenchwrench
Reel speed adjustmentwrenchwrenchwrench
Threshing cyl. speed adjustmentchain wheelschain wheelschain wheels
Bottom sieveconvertibleconvertibleconvertible
Brakesmech. drummech. drumhydr. drum
Type of cutting platform floatingspringspringspring
Alternative hp--VW bens. 38 hv hp
Fuel tank--50 l
Cutting width, alternative--185 cm
