Here is the translation of the provided text into English:

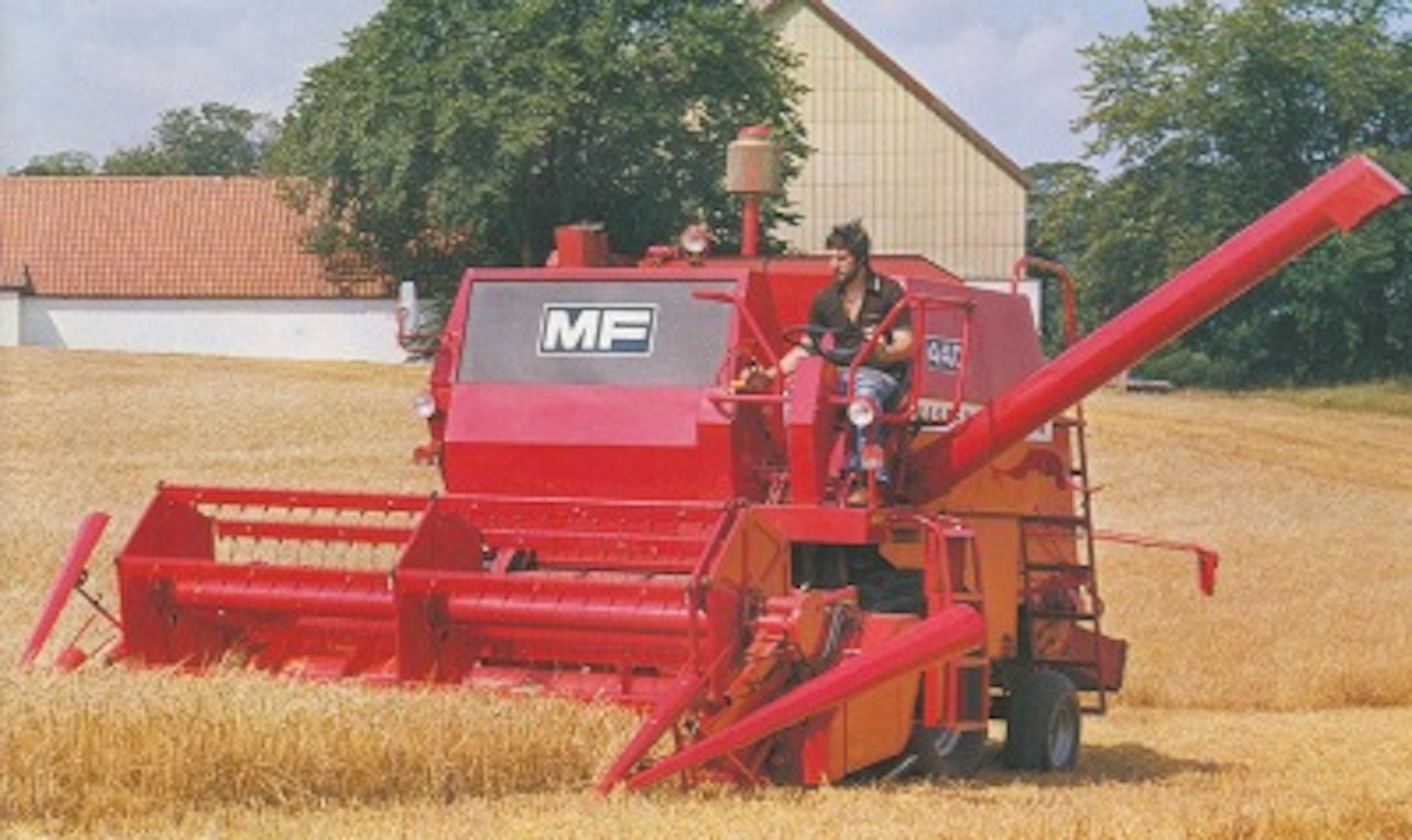

The first of the new models was the 440, introduced in 1978 as the successor to the earlier 506. It featured a new long cutting table and a hydraulically operated windrow reel similar to the 520. In 1979, its tires were increased to 26 inches. In the same year, the 240 was introduced as the successor to the 206. The 240 also had a swinging crank type, oil-bath blade drive, like the 440 and the earlier 307 and 506. The windrow reel was belt-driven and the rear rail spacing was narrower than before. The cab was still located on the left side of the centerline. The 240 also received a long cutting table, long chaff dividers, and a new factory-installed chopper in 1982.

This is an automated translation. Please report any issues in the translation.

MF 240

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

MF 440

Massey Ferguson 240 – 440

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	MF 240	MF 240	MF 440
Imported to Finland	Yes	Yes	Yes
Years	1979-82	1982-83	1978-83
Engine	Perkins	Perkins	Perkins
Engine type	A4.236	A4.236	A4.248
Displacement	3860 cm³	3860 cm³	4060 cm³
Cyl/turbo	4	4	4
Power	68 hp DIN	68 hp DIN	85 hp DIN
Fuel tank	120 l	120 l	122 l
Transmission	mech.	mech.	mech.
Gears	3	3	3
Speed min-max.	1,4-18 km/h	1,4-18 km/h	1,3-20 km/h
Cutting width	250 cm	250 cm	300 cm
Reel diameter	127 cm	127 cm	127 cm
Header length	34 cm	52 cm	54 cm
Threshing cyl. diameter	56 cm	56 cm	56 cm
Threshing cyl. width	81 cm	81 cm	107 cm
Number of straw walkers	3	3	4
Area of walkers	256 dm²	256 dm²	340 dm²
Lenght of walkers	314 cm	314 cm	314 cm
Straw shieve	91 dm²	91 dm²	114 dm²
Bottom shieve	77 dm²	77 dm²	100 dm²
Total screening area	170	170	226
Overall lenght	765 cm	765 cm	810 cm
Overall width	299 cm	299 cm	335 cm
Height without cabin	291 cm	291 cm	300 cm
Weight without cabin	3500 kg	3500 kg	5000 kg
Grain tank	23 hl	23 hl	23 hl
Unl. height	282 cm	282 cm	-
Tyres front (Finland)	14.9-26	14.9-26	20-20
Tyres front, alternative	16.9-24	16.9-24	18.4-26
Tyres rear (Finland)	10.0/80-12	10.0/80-12	10.0/80-12
Tyres rear, alternative	10.5-16	10.5-16	11.0/60-16
Reel forward/backw. adjustment	mech.	mech.	elec.
Reel speed adjustment	mech.	mech.	hydr.
Threshing cyl. speed adjustment	chain wheels	chain wheels	adj, in cabin
Bottom sieve	convertible	convertible	convertible
Brakes	hydr. expanding	hydr. expanding	hydr. expanding
Type of cutting platform floating	spring	spring	gas damper
