Massey Ferguson 22 S – 28, 2045-2065

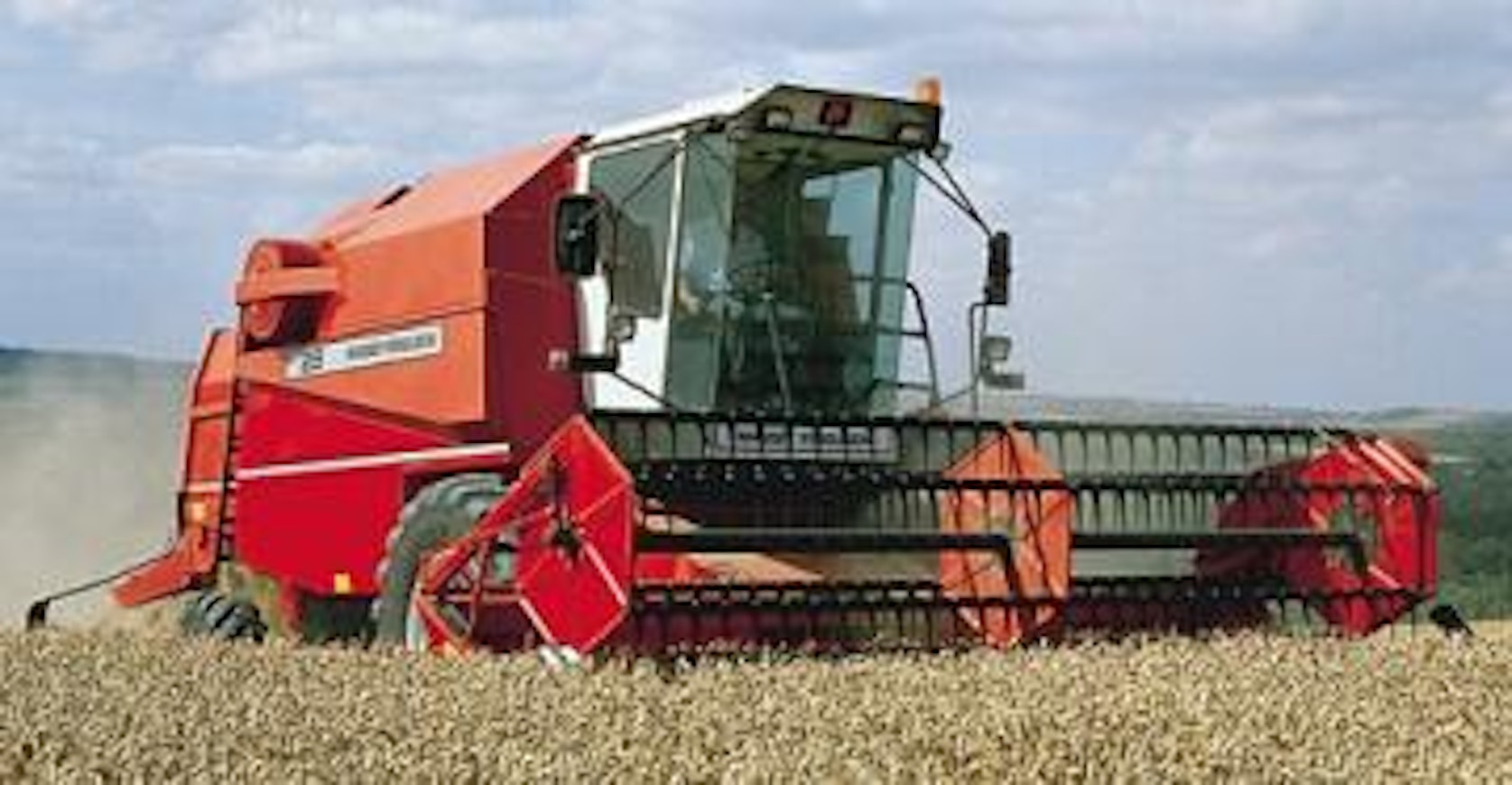

MF28
Manufacturer
Models
MF 22 S, MF 23, MF 23 HT, MF 25, MF 26, MF 28, MF 7238, MF 2045, MF 2065
Years
1999-2007
Info

The same updates were made to the MF models as to the corresponding Sampas. The largest MF model was initially known as the 28 XP, but the model designation was changed to 7238, which was part of a unified series with the 7200 series MF combines manufactured by Dronningborg. Sales of MF combines in Finland ended in 2002. After this, MF combines were sold, among other places, in Norway and Germany using the same 2000-series model designations as the Sampas. The 2045 had a 4-cylinder 115 hp engine, and the 2065 had a 130-horsepower six-cylinder engine. The 2035 and 2085 were also available in Norway. The 2008 model year introduced new decals and Tornado badges, similar to those on the Sampas.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMF 22 SMF 23MF 23 HTMF 25MF 26MF 28MF 7238MF 2045MF 2065
Imported to FinlandYesYesYesYesYesYesYesNoNo
Years1999-20021999-20021999-20021999-20021999-20021999-20021999-20022003-072003-07
EngineSisuDieselSisuDieselSisuDieselSisuDieselSisuDieselSisuDieselSisuDieselSisuDieselSisuDiesel
Engine type42042042062062062062044 ET66 ET
Displacement4400 cm³4400 cm³4400 cm³6600 cm³6600 cm³6600 cm³6600 cm³4400 cm³6600 cm³
Cyl/turbo44 T4 T66 T6 T6 T4 T6 T
Power80 hp DIN100 hp DIN115 hp DIN120 hp DIN140 hp DIN160 hp DIN185 hp DIN115 hp DIN130 hp DIN
Fuel tank200 l200 l200 l200 l200 l300 l300 l200 l200 l
Transmissionmech.mech.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Gears333333333
Speed min-max.1,8-25 km/h1,7-24,8 km/h0-26 km/h0-26 km/h0-26 km/h0-23,7 km/h0-25 km/h0-26 km/h0-26 km/h
Cutting width310 cm345 cm345 cm390 cm420 cm450 cm450 cm345 cm420 cm
Cutting width, alternative345 cm310, 390 cm310-420 cm310-420 cm345-450 cm420, 480 cm420, 480 cm310-420 cm310-450 cm
Reel diameter105 cm105 cm105 cm105 cm105 cm105 cm105 cm105 cm105 cm
Header length51 cm51 cm51 cm51 cm51 cm51 cm51 cm51 cm51 cm
Threshing cyl. diameter50 cm50 cm50 cm50 cm50 cm50 cm50 cm50 cm50 cm
Threshing cyl. width111 cm111 cm111 cm111 cm111 cm111 cm111 cm111 cm111 cm
Number of straw walkers444455545
Area of walkers426 dm²460 dm²460 dm²460 dm²460 dm²460 dm²460 dm²460/480 dm²460/480 dm²
Lenght of walkers380 cm410 cm410 cm410 cm410 cm410 cm410 cm410 cm410 cm
Straw shieve187 dm²207 dm²207 dm²207 dm²207 dm²207 dm²207 dm²207 dm²207 dm²
Bottom shieve113 dm²133 dm²133 dm²133 dm²133 dm²133 dm²133 dm²133 dm²133 dm²
Total screening area300340340340340340340340340
Overall lenght825 cm850 cm850 cm850 cm850 cm993 cm993 cm868 cm868 cm
Overall width343 cm378 cm378 cm378 cm453 cm483 cm483 cm378 cm378 cm
Width without header300 cm300 cm300 cm300 cm324 cm324 cm324 cm305 cm305 cm
Height with cabin350 cm350 cm350 cm350 cm350 cm350 cm350 cm350 cm350 cm
Weight with cabin5700 kg6000 kg6000 kg6600 kg7100 kg7500 kg7600 kg6000 kg7100 kg
Grain tank30 hl33 hl37 hl37 hl42 hl46 hl46 hl37 hl42 hl
Unl. height330 cm330 cm330 cm330 cm340 cm340 cm340 cm330 cm340 cm
Tyres front (Finland)18.4R3418.4R3418.4R34520/70R34600/65R34750/65R26750/65R26520/70R20600/65R34
Tyres front, alternative600/65R34600/65R34600/65R34750/65R26750/65R26750/65R26750/65R26600/65R34750/65R26
Tyres rear (Finland)12.4R2012.4R2012.4R2012.4R20420/65R20420/65R20420/65R20360/70R20420/65R20
Tyres rear, alternative360/70R20360/70R20360/70R20360/70R20550/45-22.5550/45-22.5550/45-22.5420/65R20550/45-22.5
Reel forward/backw. adjustmentmech.elec.elec.elec.elec.elec.elec.elec.elec.
Reel speed adjustmentelec.elec.elec.elec.elec.elec.elec.elec.elec.
Threshing cyl. speed adjustmentelec.elec.elec.elec.elec.elec.elec.elec.elec.
Bottom sieveconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertible
Brakesmech. shoemech. shoemech. shoemech. shoemech. shoemech. shoemech. shoemech. shoemech. shoe
Heatingxxxxxxxxx
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas dampergas dampergas dampergas damper
Reverser-xxxxxxxx
Alternative hp---140 hp-----
Air conditioning----xxx--
2. cyl. diameter-----40 cm40 cm--
