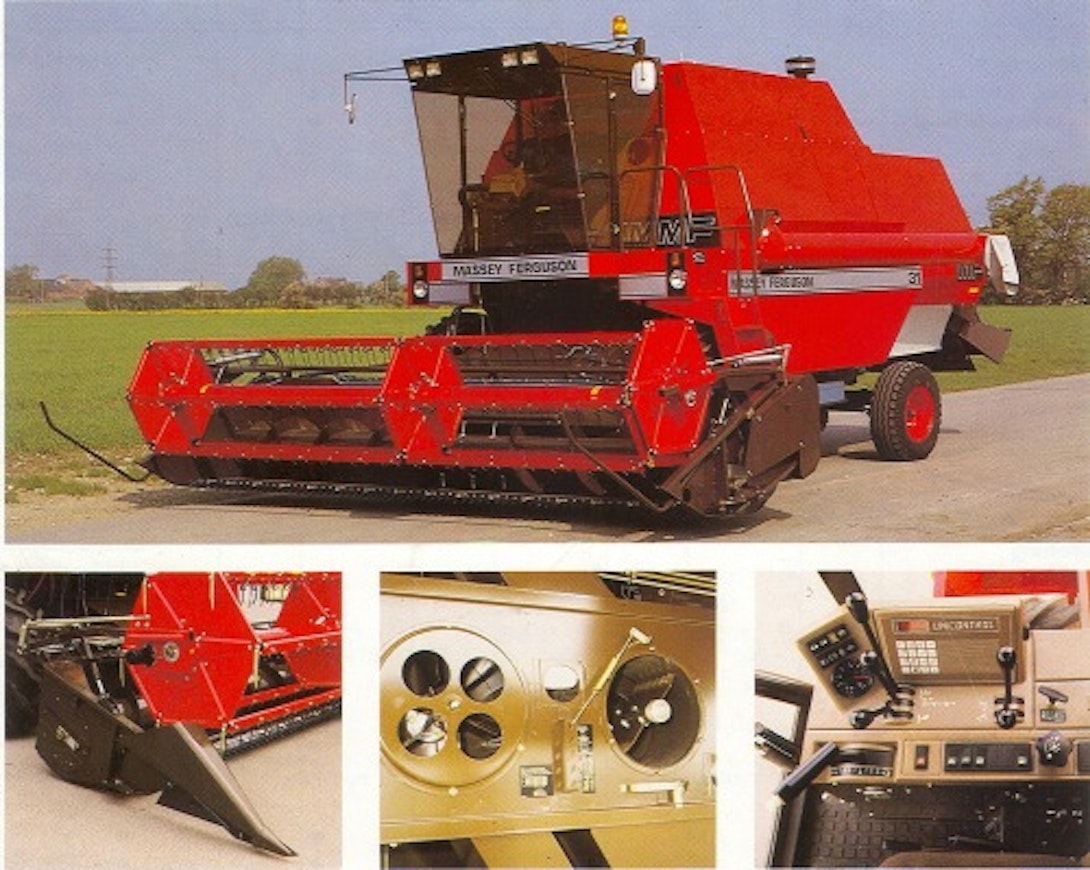

Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 21 – 31

Here is the translation of your text:
In 1984, MF made a similar agreement with Dronningborg as it had made a little earlier with Sampo Rosenlew. The models manufactured by Dronningborg continued the size range from where those made by Sampo ended. For example, in Norway and Germany, smaller Dronningborgs were also sold with model designations MF 21 and 21H.
The MF 24-31 series included four size classes. All had 6-cylinder Perkins engines, hydrostatic transmission, hydraulic reel drive, and a cylindrical sieve as the secondary cleaning device. The closest equivalent Dronningborg models were the D4500, D7200, D7500, and D8500. The Dronningborgs had slightly more powerful Valmet engines than the Perkins engines used in MFs.
In 1988, the MF engines were made more powerful, and the larger models came equipped as standard with the Unicontrol system, which included, among other things, speed monitoring on 9 shafts and measurement of the harvested area.
This is an automated translation. Please report any issues in the translation.
| Model | MF 21 | MF 24 | MF 27 | MF 27 | MF 29 | MF 29 XP | MF 31 | MF 31 XP |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No |
| Engine | Valmet | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins |
| Engine type | 411 DL | A6.354.4 | AT6.354.4 | AT6.354.4 | AT6.354.4 | ATC6.354.4 | AT6.354.4 CC | ATC6.354.4 |
| Displacement | 4400 cm³ | 5797 cm³ | 5797 cm³ | 5797 cm³ | 5797 cm³ | 5797 cm³ | 5797 cm³ | 5797 cm³ |
| Cyl/turbo | 4T | 6 | 6T | 6T | 6T | 6T | 6T | 6TI |
| Power | 85 hp DIN | 101 hp DIN | 118 hp DIN | 130 hp DIN | 142 hp DIN | 153 hp DIN | 153 hp DIN | 170 hp DIN |
| Fuel tank | 140 l | 180 l | 200 l | 200 l | 280 l | 280 l | 280 l | 280 l |
| Transmission | mech./hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3/3 | 3 | 2 | 2 | 2 | 2 | 2 | 2 |
| Speed min-max. | 1,4-23,0/ 0-22 km/h | 0-22 km/h | 0-20 km/h | 0-20 km/h | 0-20 km/h | 0-20 km/h | 0-20 km/h | 0-20 km/h |
| Cutting width | 300 cm | 320 cm | 360 cm | 420 cm | 360 cm | 420 cm | 420 cm | 540 cm |
| Reel diameter | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm | 100 cm |
| Header length | 46 cm | 46 cm | 44 cm | 44 cm | 44 cm | 44 cm | 44 cm | 44 cm |
| Threshing cyl. diameter | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm | 45 cm |
| Threshing cyl. width | 112 cm | 112 cm | 140 cm | 140 cm | 140 cm | 140 cm | 140 cm | 140 cm |
| Number of straw walkers | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
| Area of walkers | 320 dm² | 430 dm² | 540 dm² | 540 dm² | 540 dm² | 540 dm² | 630 dm² | 630 dm² |
| Lenght of walkers | 286 cm | 383 cm | 386 cm | 386 cm | 386 cm | 386 cm | 438 cm | 438 cm |
| Total screening area | 290 | 290 | 320 | 320 | 370 | 370 | 410 | 410 |
| Overall lenght | 733 cm | 930 cm | 917 cm | 967 cm | 917 cm | 1034 cm | 984 cm | 1034 cm |
| Overall width | 325 cm | 372 cm | 425 cm | 486 cm | 425 cm | 486 cm | 486 cm | 610 cm |
| Width without header | 299 cm | 295 cm | 300 cm | 300 cm | 320 cm | 320 cm | 320 cm | 320 cm |
| Height without cabin | 312 cm | - | - | - | - | - | - | - |
| Height with cabin | 333 cm | 350 cm | 380 cm | 400 cm | 380 cm | 400 cm | 380 cm | 400 cm |
| Weight with cabin | 5600 kg | 6050 kg | 7300 kg | 7720 kg | 7850 kg | 8270 kg | 8830 kg | 9285 kg |
| Grain tank | 26 hl | 32 hl | 42 hl | 42 hl | 52 hl | 52 hl | 52 hl | 52 hl |
| Unl. height | 300 cm | 337 cm | 370 cm | 370 cm | 370 cm | 370 cm | 370 cm | 370 cm |
| Tyres front (Finland) | 16.9R-26 | 18.4-26 | 18.4-30 | 18.4-30 | 23.1-26 | 23.1-26 | 23.1-26 | 23.1-26 |
| Tyres front, alternative | 18.4-26 | 18.4-30 | 23.1-26 | 23.1-26 | 28.1-26 | 28.1-26 | 28.1-26 | 28.1-26 |
| Tyres rear (Finland) | 10.0/75-15 | 11.5/80-15 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 |
| Tyres rear, alternative | 11.5/80-15 | - | - | - | - | - | - | - |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Threshing cyl. speed adjustment | converter | converter | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | dry disc | dry disc | dry disc | dry disc | wet disc | wet disc | wet disc | wet disc |
| Heating | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Years | - | 1984-90 | 1984-88 | 1988-90 | 1984-88 | 1988-90 | 1984-88 | 1988-90 |
| Cutting width, alternative | - | 360 cm | 420 cm | - | 420 cm | 480 cm | 480 cm | - |
| Straw shieve | - | 157 dm² | 180 dm² | 180 dm² | 209 dm² | 209 dm² | 232 dm² | 232 dm² |
| Bottom shieve | - | 132 dm² | 140 dm² | 140 dm² | 161 dm² | 161 dm² | 178 dm² | 178 dm² |
| Floating cutting platform | - | x | x | x | x | x | x | x |
| Alternative hp | - | - | 130 hp | - | - | - | - | - |
| Reverser | - | - | - | x | x | x | x | x |
| Air conditioning | - | - | - | x | x | x | x | x |
