Massey Ferguson 16 – 20
Manufacturer
Models
MF 16, MF 16, MF 20, MF 20, MF 20 XP, MF 20 XP, MF 20 XP
Years
1985-91
Info

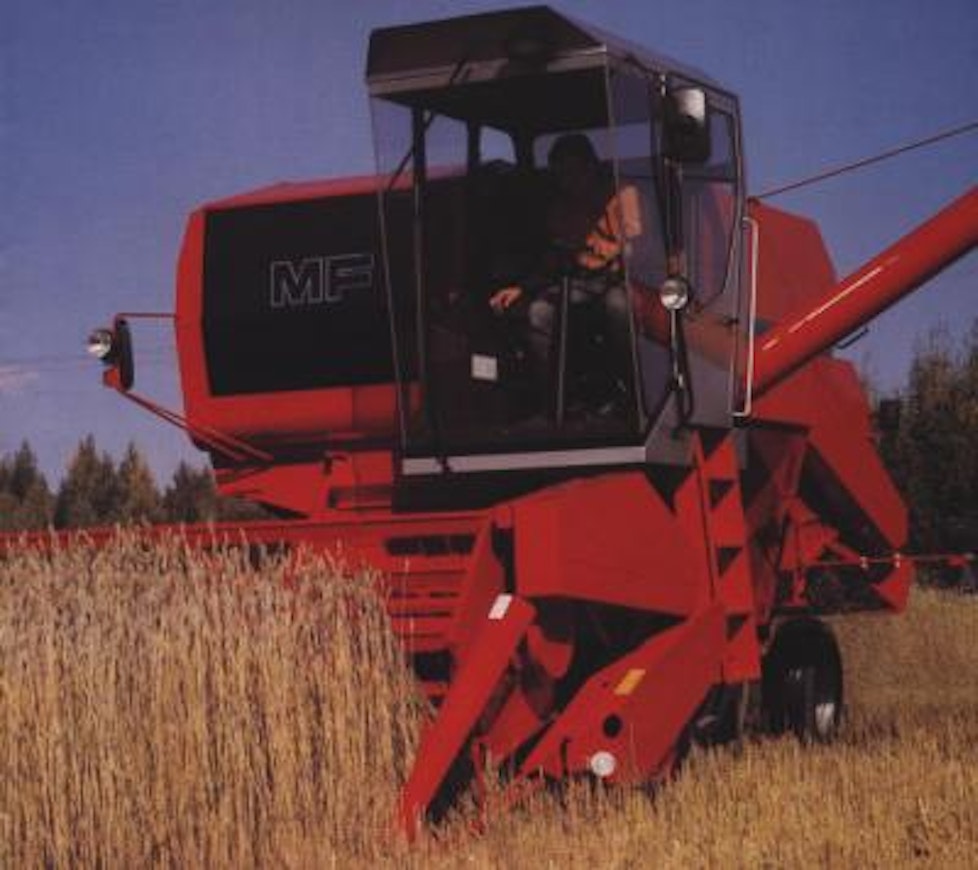

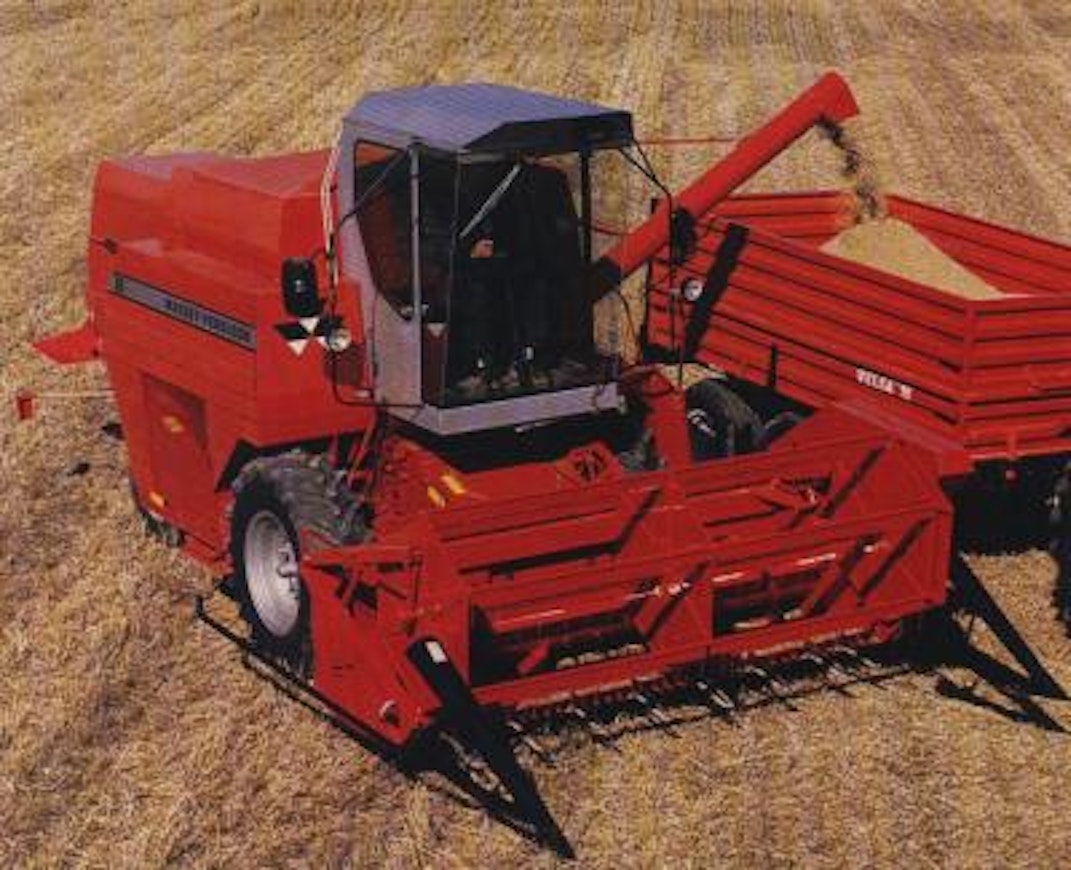

The parallel models of the Sampo 580/680/690 were designated 16/20/20 XP. These were the last MF combine harvesters equipped with Perkins engines. New features compared to their predecessors included, among others, the cab, a slower 2nd gear, an opposing oscillating motion of the sieves, and a throwing conveyor divided into lanes.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | MF 16 | MF 16 | MF 20 | MF 20 | MF 20 XP | MF 20 XP | MF 20 XP |
|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1985-87 | 1987-91 | 1985-87 | 1987-90 | 1985-86 | 1986-87 | 1987-90 |
| First year sold | 1985 | 1987 | 1985 | 1987 | 1985 | 1986 | 1987 |
| Last year sold | 1987 | 1991 | 1987 | 1990 | 1986 | 1987 | 1990 |
| Engine | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins | Perkins |
| Engine type | A4.236 | A4.236 | A4.248 | A4.248 | A4.248 | AT4.236 | AT4.236 |
| Displacement | 3860 cm³ | 3860 cm³ | 4060 cm³ | 4060 cm³ | 4060 cm³ | 3860 cm³ | 3860 cm³ |
| Cyl/turbo | 4 | 4 | 4 | 4 | 4 | 4 T | 4 T |
| Power | 75 hp DIN | 75 hp DIN | 85 hp DIN | 85 hp DIN | 85 hp DIN | 92 hp DIN | 92 hp DIN |
| Fuel tank | 100 l | 140 l | 140 l | 140 l | 140 l | 140 l | 140 l |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,5-19,8 km/h | 1,5-19,8 km/h | 1,4-22 km/h | 1,4-22 km/h | 1,4-22 km/h | 1,4-22 km/h | 1,4-22 km/h |
| Cutting width | 258 cm | 267 cm | 290 cm | 297 cm | 335 cm | 335 cm | 343 cm |
| Reel diameter | 90 cm | 105 cm | 90 cm | 105 cm | 90 cm | 90 cm | 105 cm |
| Header length | 36 cm | 51 cm | 44 cm | 51 cm | 44 cm | 44 cm | 51 cm |
| Threshing cyl. diameter | 50 cm | 50 cm | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm |
| Threshing cyl. width | 86 cm | 86 cm | 105 cm | 105 cm | 105 cm | 105 cm | 105 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 296 dm² | 296 dm² | 352 dm² | 352 dm² | 352 dm² | 352 dm² | 352 dm² |
| Lenght of walkers | 340 cm | 340 cm | 332 cm | 332 cm | 332 cm | 332 cm | 332 cm |
| Straw shieve | 102 dm² | 102 dm² | 124 dm² | 124 dm² | 124 dm² | 124 dm² | 124 dm² |
| Bottom shieve | 80 dm² | 80 dm² | 99 dm² | 99 dm² | 99 dm² | 99 dm² | 99 dm² |
| Total screening area | 182 | 182 | 223 | 223 | 223 | 223 | 223 |
| Overall lenght | 740 cm | 755 cm | 740 cm | 755 cm | 740 cm | 740 cm | 755 cm |
| Overall width | 295 cm | 304 cm | 320 cm | 335 cm | 370 cm | 370 cm | 385 cm |
| Height without cabin | 290 cm | 290 cm | 295 cm | 295 cm | 295 cm | 295 cm | 310 cm |
| Height with cabin | 326 cm | 326 cm | 325 cm | 325 cm | 325 cm | 325 cm | 325 cm |
| Weight without cabin | 3845 kg | 3885 kg | 4480 kg | 4540 kg | 4580 kg | 4580 kg | - |
| Weight with cabin | 4080 kg | 4120 kg | 4700 kg | 4760 kg | 4800 kg | 4800 kg | 4970 kg |
| Grain tank | 21 hl | 21 hl | 25 hl | 25 hl | 25 hl | 25 hl | 30 hl |
| Unl. height | 270 cm | 270 cm | 300 cm | 300 cm | 300 cm | 300 cm | 350 cm |
| Tyres front (Finland) | 16.9-26 | 16.9-26 | 18.4-26 | 18.4-26 | 18.4-26 | 18.4-26 | 18.4-26 |
| Tyres rear (Finland) | 10/80-12 | 10/80-12 | 11.5-15 | 11.5-15 | 11.5-15 | 11.5-15 | 11.5-15 |
| Reel forward/backw. adjustment | mech. steering | mech. steering | elec. | elec. | elec. | elec. | elec. |
| Reel speed adjustment | mech. steering | mech. steering | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | convertible | convertible | convertible | convertible | convertible | convertible | convertible |
| Brakes | mech. shoe | mech. shoe | hydr. drum | hydr. drum | hydr. drum | hydr. drum | hydr. drum |
| Heating | x | x | x | x | x | x | x |
| Type of cutting platform floating | spring | spring | spring | gas damper | spring | spring | gas damper |
| Tyres front, alternative | - | 16.9R28 | - | 16.9R30 | - | - | 16.9R30 |
| Tyres rear, alternative | - | - | - | - | - | - | 400-17.5 |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
