Claas SF/SFB

56ClaasSF
62ClaasSFB
56ClaasSF
62ClaasSFB
Manufacturer
Models
Claas SF, Claas SFB
Years
1953-62
Info

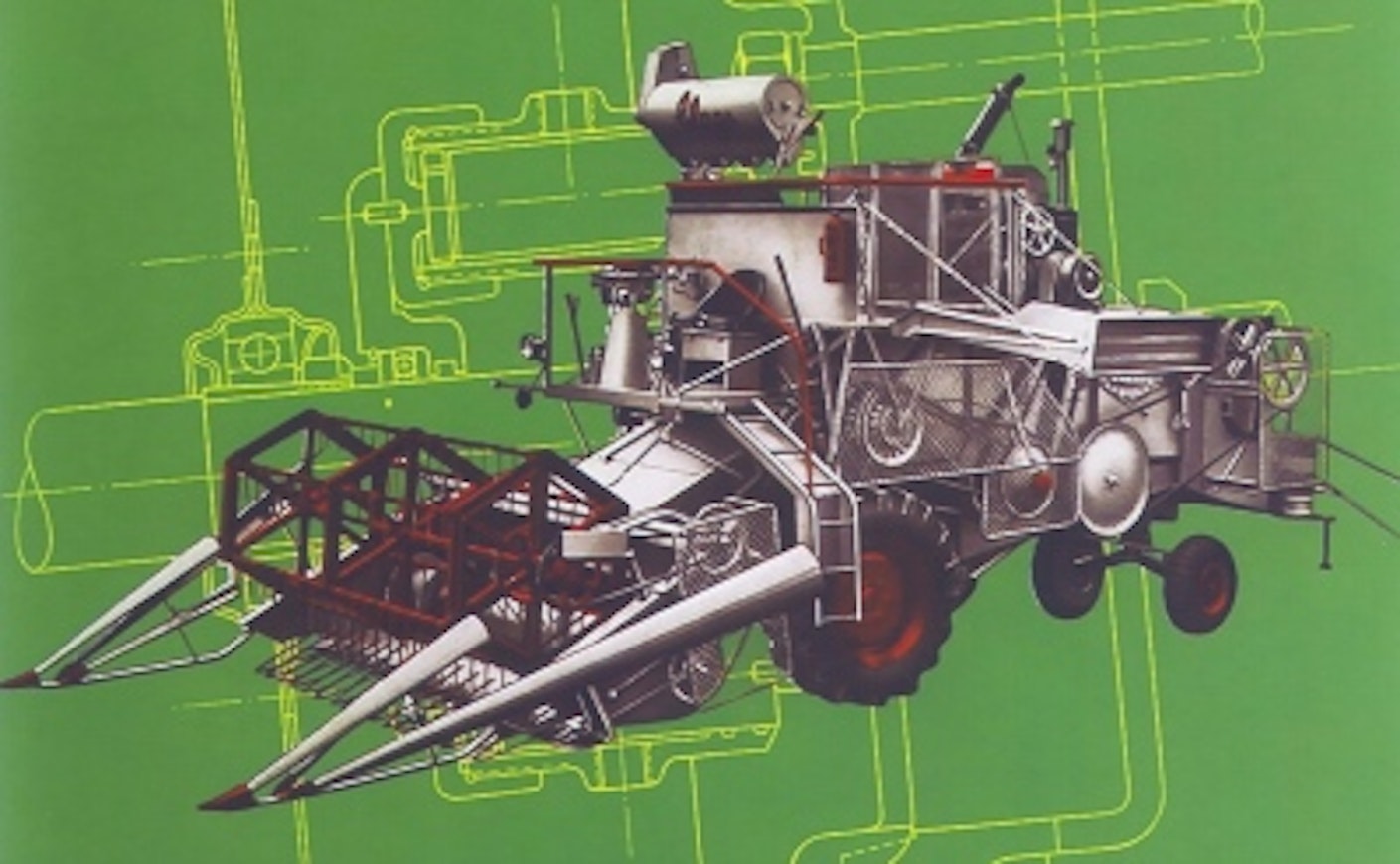

The first self-propelled combine harvester from Claas was the Hercules, introduced in 1953. However, the name was already in use by another manufacturer’s combine, so Claas had to change it to S.F. (= Selbstfahrer = self-propelled). The SF was quite a large combine harvester for its time. Standard features included hydraulic height adjustment for the cutting table and the elevator reel. The following year, the speed variators for both the threshing reel and driving speed were also changed to hydraulic operation. The engine was either a 4-cylinder diesel (60 hp) or a 6-cylinder gasoline engine (56 hp). The threshing reel width was 125 cm, and it had four beaters. The cutting width was standard 240 cm. For export markets, the SF was even sold with a 420 cm header. In Finland, the widest option was 360 cm. The combine could be equipped either with a sack-loading platform or a grain tank.

After minor changes made in 1961, the model designation became SFB. The most interesting fact is that as an alternative to Perkins, Claas offered the only engine they manufactured themselves in their history. The 4.7-liter air-cooled LD 40 engine produced 66 hp. Claas manufactured about 4,300 of these engines in total. For 1963, the SFB was renamed Matador Standard.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelClaas SFClaas SFB
Imported to FinlandYesYes
Years1953-611961-62
EnginePerkinsPerkins
Engine type270 DAD4.270
Displacement4420 cm³4420 cm³
Cyl/turbo44
Power60 hp DIN60 hp DIN
Alternative hp56 bens. hp66 Claas hp
Transmissionmech.mech.
Gears33
Speed min-max.2,0-17,0 km/h1,4-15,0 km/h
Cutting width240 cm300 cm
Cutting width, alternative300-420 cm260-420 cm
Threshing cyl. diameter45 cm45 cm
Threshing cyl. width125 cm125 cm
Number of straw walkers44
Area of walkers300 dm²300 dm²
Lenght of walkers240 cm240 cm
Straw shieve115 dm²50+115 dm²
Bottom shieve98 dm²98 dm²
Total screening area213264
Overall lenght905 cm826 cm
Overall width330 cm332 cm
Height without cabin380 cm380 cm
Weight without cabin4200 kg4300 kg
Grain tank20 (lisäv.) hl20 hl
Tyres front (Finland)14.9-2618.4-30
Tyres front, alternative18.4-3014.9-26
Tyres rear (Finland)8.50-1210.00-18
Tyres rear, alternative12.00-188.50-12
Reel forward/backw. adjustmentmech.mech.
Reel speed adjustmentno steeringmech.
Threshing cyl. speed adjustmenthydr. steeringhydr. steering
Bottom sieveconvertibleconvertible
Brakesmech. drummech. drum
Type of cutting platform floatingspringspring
