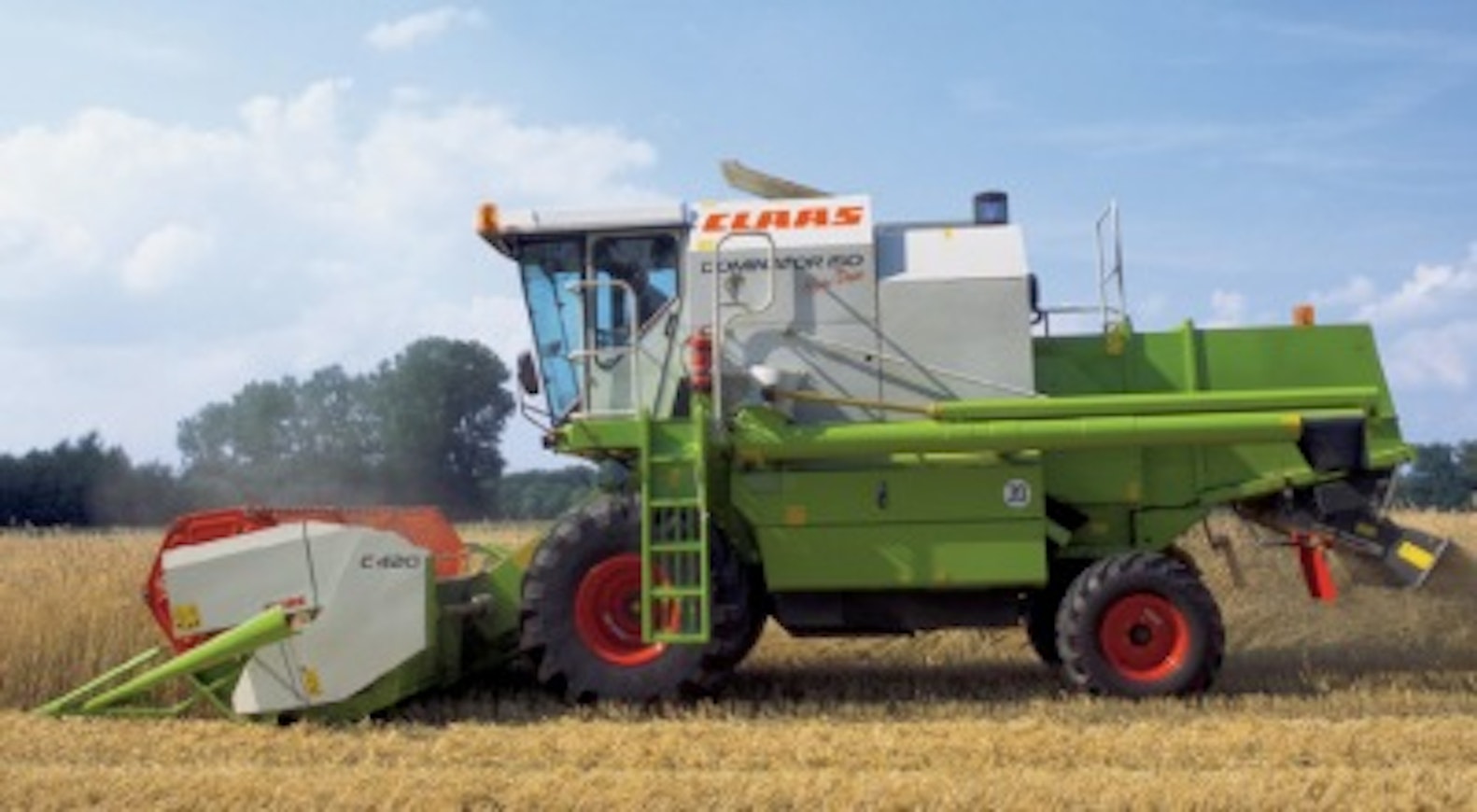

Claas Dominator 130-150

04ClaasDominator
04ClaasDoOhjaamo
04ClaasDominator
04ClaasDoOhjaamo
Manufacturer
Models
Claas Dominator 130, Claas Dominator 140, Claas Dominator 150
Years
2004-2014
Info

Here’s the translation of your text to English:


The Claas Dominator series was updated in the fall of 2004. The new models were based on the previous 68. Of the models, the 130 was equipped with a mechanical transmission, and the 140 and 150 with a hydrostatic transmission, whose components were the same as in the old 88. The threshing mechanism’s dimensions matched the earlier version. On top of the 3.9-meter straw walkers was a reversing shaft. The grain tank had a capacity of either 32 or 40 hectoliters. The cab was similar to the previous single-person model. The noise level was stated to be 80 dB. The cutting tables were the same C-series tables used in larger Claas models. The reversion system was hydraulic. The engines were 6-liter Perkins, which, according to the new owner, were referred to as Caterpillar. A hillside threshing sieve was available as an optional accessory.

The 2008 Dominator 150 Hydro Spezial model came as standard with air conditioning and heating equipment, as well as threshing pin monitoring.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelClaas Dominator 130Claas Dominator 140Claas Dominator 150
Imported to FinlandYesYesYes
Years2004-20112004-20142004-2011
EngineCat-PerkinsCat-PerkinsCat-Perkins
Engine type3056 E3056 E3056 E
Displacement5985 cm³5985 cm³5985 cm³
Cyl/turbo6 T6 T6 T
Power125 hp DIN121 hp DIN141 hp DIN
Fuel tank200 l280 l280 l
Transmissionmech.hydr.hydr.
Gears333
Speed min-max.1,9-25 km/h0-25 km/h0-25 km/h
Cutting width360 cm390 cm420 cm
Cutting width, alternative300-510 cm300-510 cm300-600 cm
Reel diameter112 cm112 cm112 cm
Header length48 cm48 cm48 cm
Threshing cyl. diameter45 cm45 cm45 cm
Threshing cyl. width106 cm106 cm106 cm
Number of straw walkers444
Area of walkers413 dm²413 dm²413 dm²
Lenght of walkers390 cm390 cm390 cm
Straw shieve160 dm²160 dm²160 dm²
Bottom shieve140 dm²140 dm²140 dm²
Total screening area300300300
Overall lenght933 cm933 cm933 cm
Overall width389 cm418 cm448 cm
Width without header300 cm300 cm300 cm
Height with cabin370 cm370 cm370 cm
Weight with cabin8230 kg8270 kg8620 kg
Grain tank32 hl32/40 hl40 hl
Unl. height385 cm385 cm385 cm
Tyres front (Finland)620/75R26620/75R26750/65R26
Tyres front, alternative750/65R26750/65R26620/75R26
Tyres rear (Finland)12.5-1814.5-2014.5-20
Tyres rear, alternative11.5/80-1511.5/80-1511.5/80-15
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmentmech.mech.mech.
Threshing cyl. speed adjustmenthydr.hydr.hydr.
Bottom sieveadj.adj.adj.
Brakeshydr. drumhydr. drumhydr. drum
Reverserxxx
Type of cutting platform floatinghydromech.hydromech.hydromech.
Air conditioning--2008-
Heating--2008-
Grain loss indicator--2008-
