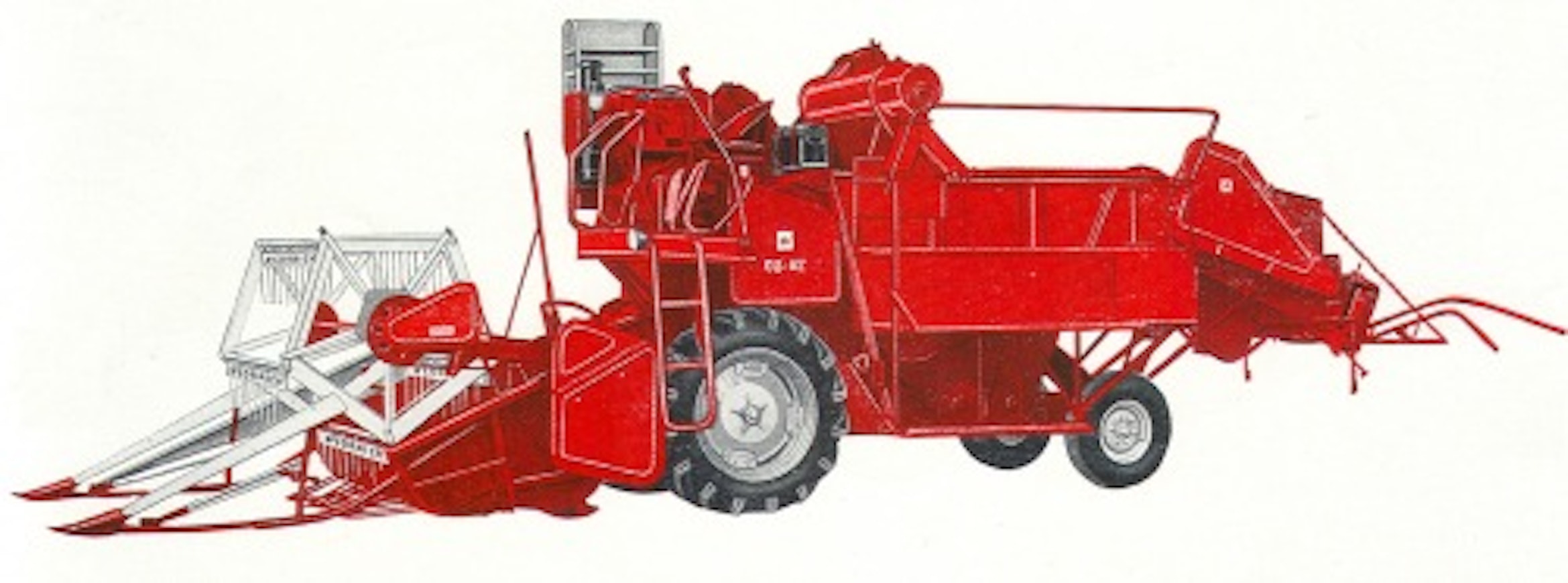

McCormick International D 8-61 – D 8-62

65IH8-62
Manufacturer
Models
International D 8-61, International D 8-62
Years
1959-64
Info

McCormick International combine harvester production began in Germany in 1957 with the model D-61, which had a working width of 187 cm. Its further developed versions were the D 8-61 and D 8-62, which started production in 1959. The cutting widths were 183 and 198 cm. The engine was either a VW industrial engine or an IH 1.8-liter diesel (34 hp). An 8.25-hectoliter grain tank was available as an accessory. The height adjustment of the cutting table and the reel lift was initially mechanical. In later models, hydraulic height adjustment became standard.

The first French combine harvesters were also introduced in 1957. The smallest model, the F-8.61, was largely the same as the corresponding German model, but equipped with a 30-horsepower IH gasoline engine. The F-8.83 had a 50-horsepower Perkins diesel and a 255–315 cm cutting table. Additionally, larger American combines were brought to Europe in the early 1960s, of which the largest, the F-8.513, had a 106 hp six-cylinder engine and a 396–426 cm cutting table.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelInternational D 8-61International D 8-62
Imported to FinlandYesYes
Years1959-641959-64
EngineIHIH
Engine typeDU-111DDU-111D
Displacement1825 cm³1825 cm³
Cyl/turbo33
Power34 hp DIN34 hp DIN
Alternative hpVW bens. 25 hp-
Transmissionmech.mech.
Gears33
Speed min-max.1,7-17,7 km/h1,7-17,7 km/h
Cutting width183 cm198 cm
Threshing cyl. diameter46 cm46 cm
Threshing cyl. width70 cm70 cm
Number of straw walkers33
Area of walkers158 dm²158 dm²
Lenght of walkers223 cm223 cm
Straw shieve78 dm²78 dm²
Bottom shieve62 dm²62 dm²
Total screening area140140
Overall lenght682 cm682 cm
Overall width250 cm250 cm
Height without cabin233 cm270 cm
Weight without cabin2320 kg2690 kg
Grain tank8.25 hl8.25 hl
Tyres front (Finland)11-2411-24
Tyres front, alternative9-2410-24
Tyres rear (Finland)7.00-127.00-12
Tyres rear, alternative4.00-15-
Reel forward/backw. adjustmentholesholes
Reel speed adjustmentchain wheelschain wheels
Threshing cyl. speed adjustmentchain wheelschain wheels
Bottom sieveconvertibleconvertible
Brakesdisc brakesdisc brakes
Type of cutting platform floatingspringspring
