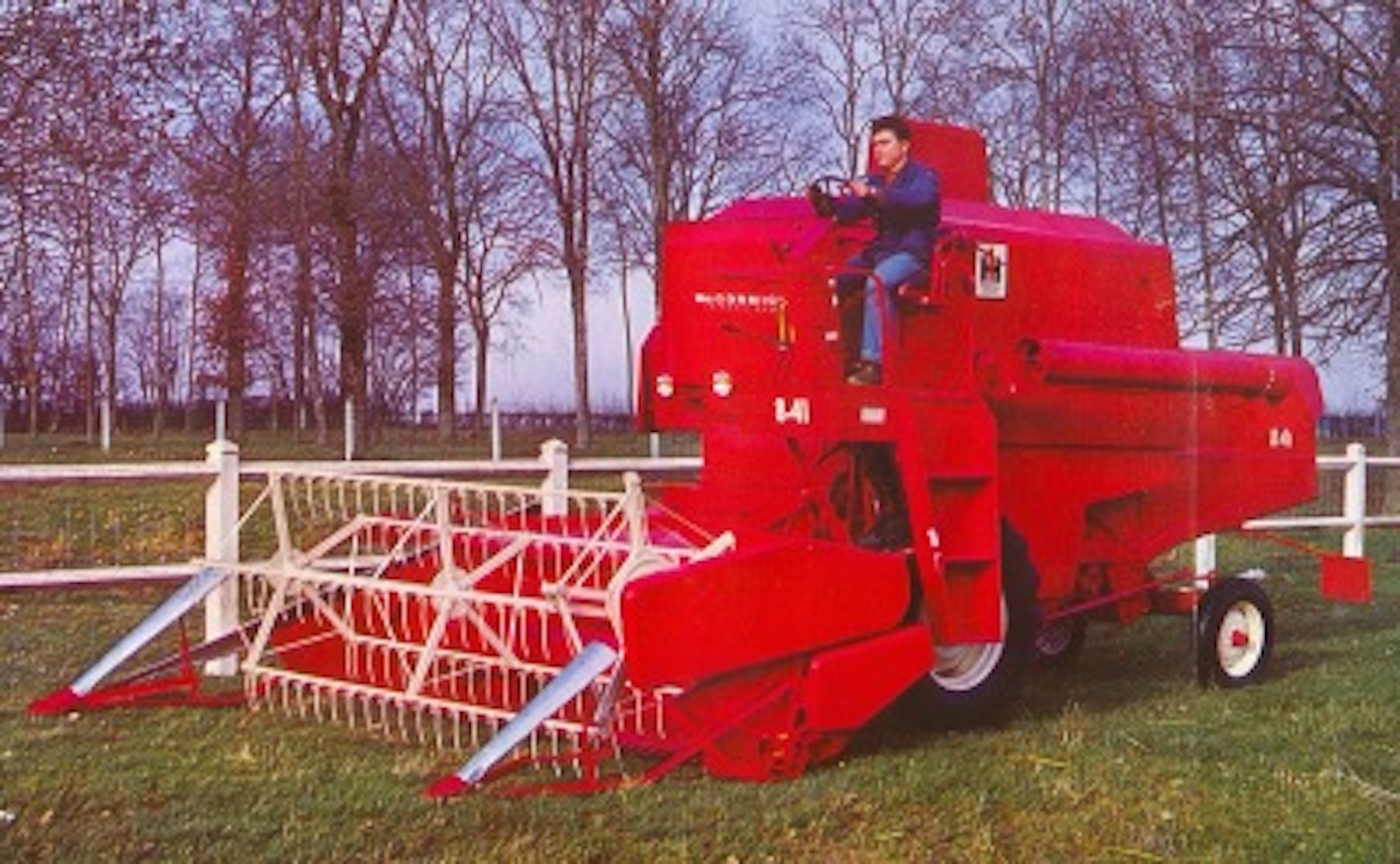

McCormick International 8-41 – 8-51

66ih8-41ohjaamo
66ih8-41
66ih8-41ohjaamo
66ih8-41
Manufacturer
Models
International 8-41, International 8-51
Years
1964-72
Info

European McCormick International combines were manufactured exclusively in France starting from 1964. At that time, the entry-level model 8-41 was introduced, with a threshing mechanism width of 104 cm. The cutting width was 244 or 304 cm. The engine was the same 3.3-liter Perkins used in the MF 165 tractor. The cutterbar suspension was hydro-pneumatic, but the reel length adjustment and speed adjustment as well as the threshing drum speed adjustment were stepped. In the improved 8-51 model, a variator was added for the threshing drum speed adjustment, and the engine was replaced with International’s 3.4-liter unit (this engine was also used in the last 8-41 models).

The 8-41 was initially imported to Finland under the McCormick name, but in 1968 it was marketed as the yellow Sampo 100 with minor improvements. The 8-51 was correspondingly the Sampo 110. Conversely, the Sampo 30 was sold in Central Europe under the name International 8-31.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelInternational 8-41International 8-51
Imported to FinlandYesNo
Years1964-691968-72
EnginePerkinsIH
Engine typeA4.203D-206
Displacement3330 cm³3382 cm³
Cyl/turbo44
Power58 SAE hp DIN65 hp DIN
Alternative hp65 (D-206) hp-
Fuel tank120 l120 l
Transmissionmech.mech.
Gears33
Speed min-max.1,2-19,2 km/h1,1-18,1 km/h
Cutting width304 cm305 cm
Cutting width, alternative244, 396 cm243, 396 cm
Reel diameter100 cm100 cm
Threshing cyl. diameter37 cm46 cm
Threshing cyl. width104 cm106 cm
Number of straw walkers44
Area of walkers304 dm²300 dm²
Lenght of walkers287 cm287 cm
Straw shieve78 dm²78 dm²
Bottom shieve85 dm²85 dm²
Total screening area190191
Overall lenght826 cm796 cm
Overall width362 cm365 cm
Height without cabin310 cm310 cm
Weight without cabin4000 kg4125 kg
Grain tank20 hl20 hl
Unl. height290 cm315 cm
Tyres front (Finland)16.9-2416.9-24
Tyres front, alternative14.9-2414.9-24
Tyres rear (Finland)7.50-167.50-16
Tyres rear, alternative5.50-165.50-16
Reel forward/backw. adjustmentholesholes
Reel speed adjustmentchain wheelschain wheels
Threshing cyl. speed adjustmentchain wheelshydr. steering
Bottom sieveconvertibleadj.
Brakesdisc brakesdisc brakes
Type of cutting platform floatinggas dampergas damper
