International 221-541

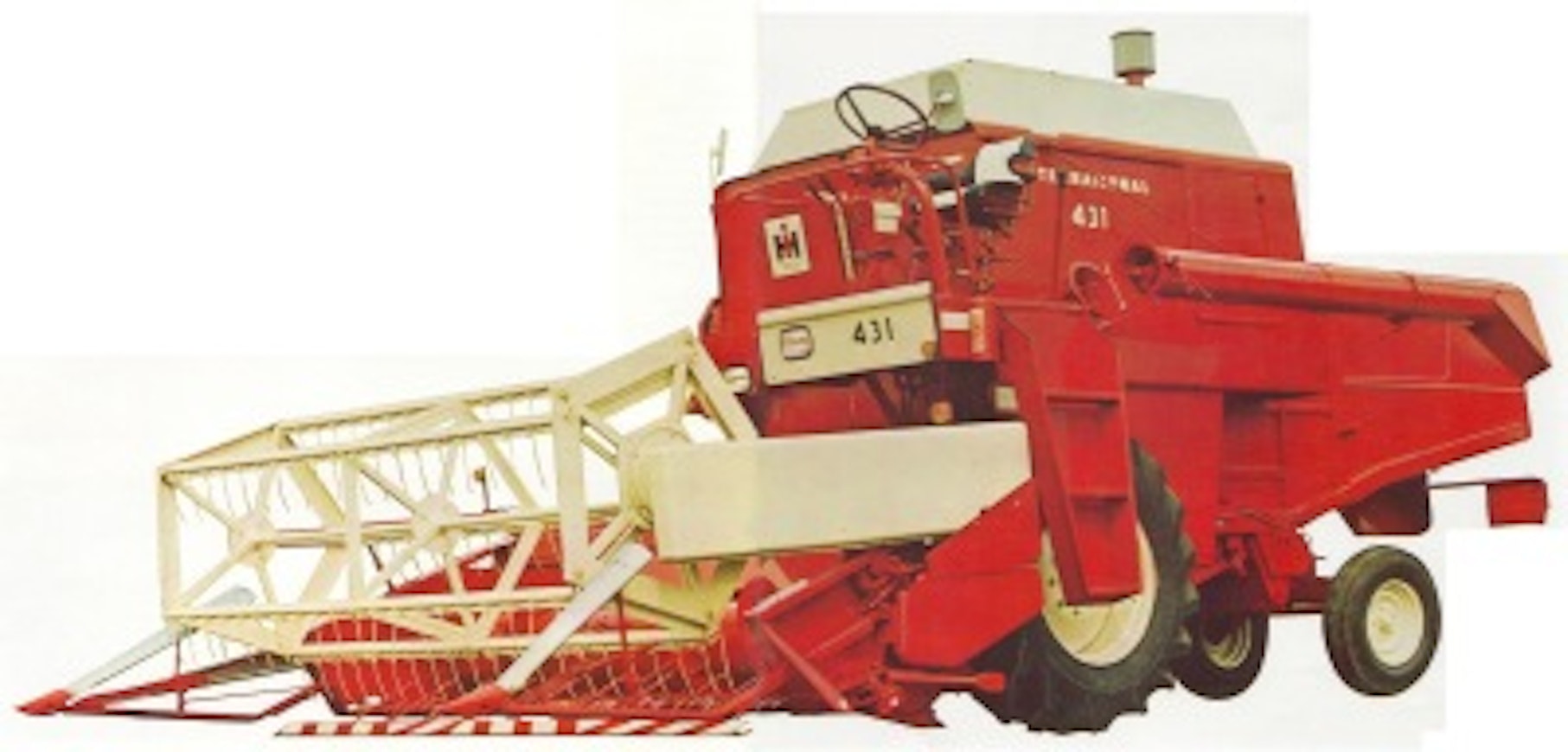

73IH431

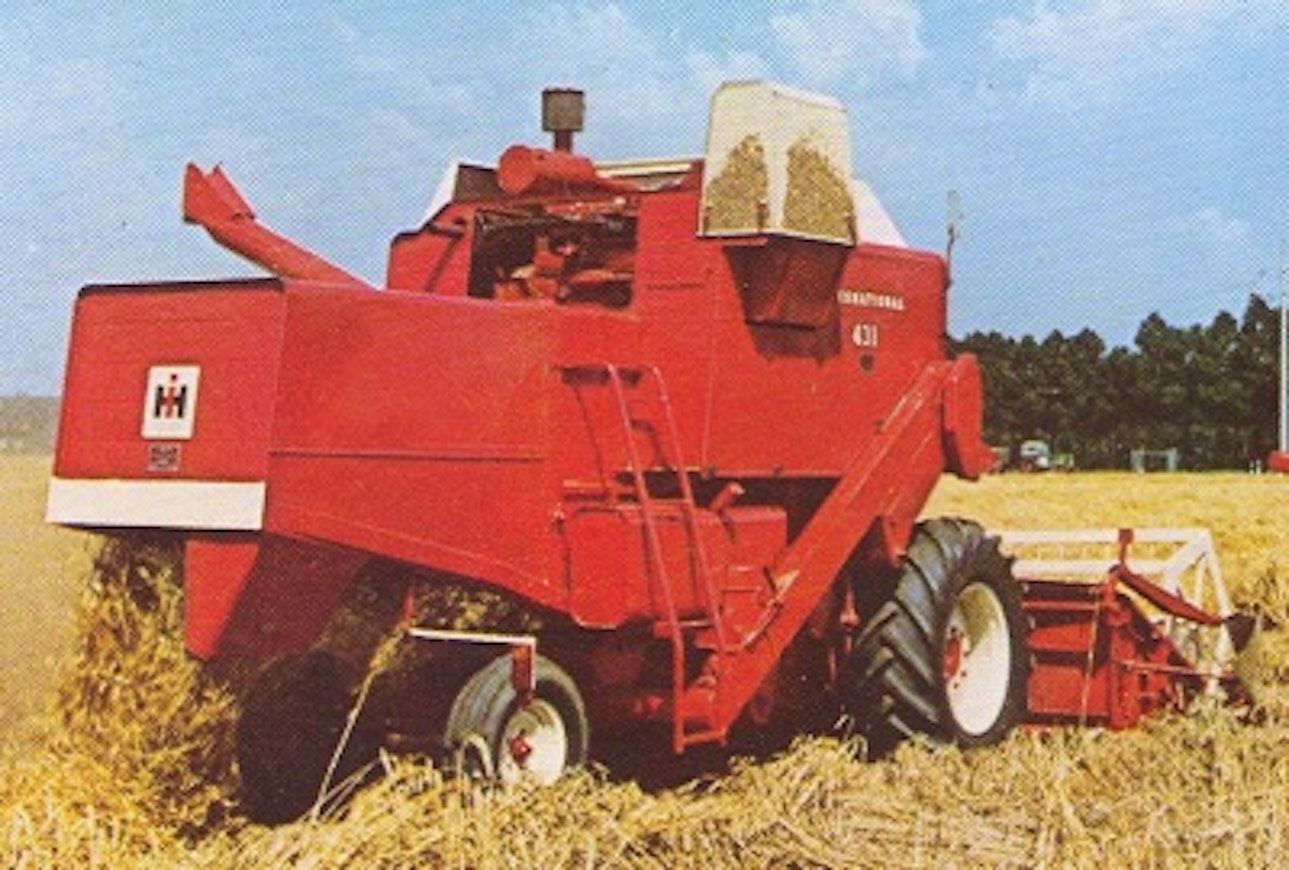

73IH431b
73IH431
73IH431b
Manufacturer
Models
International 221, International 321, International 431, International 531, International 541
Years
1972-81
Info

The renewed International combine harvester lineup for the year 1973 included four models: 221, 321, 431, and 531. The largest model had 5 threshing units. The smallest model, the 221, was practically just a renamed 8-51. It soon disappeared from the lineup. The differences between models 321 and 431 were minor. As with previous models, the 431 featured a 6-cylinder engine (until 1974 there was also a 4-cylinder version) and hydraulic adjustments for the reel lift. The 541, which replaced the 531, had an updated cutting table, a hydraulically rotatable unloading pipe, and a rotating engine air intake. Alongside their own models, the Sampo 35 was also sold under the name IH 211.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelInternational 221International 321International 431International 531International 541
Imported to FinlandNoNoNoNoNo
Years1972-731972-811972-801972-781977-80
EngineIHIHIHIHIH
Engine typeD-206D-239D-310D-358D-358
Displacement3382 cm³3911 cm³5073 cm³5867 cm³5867 cm³
Cyl/turbo44666
Power65 hp DIN75 hp DIN85 hp DIN125 hp DIN125 hp DIN
Fuel tank120 l100/120 l120/180 l180 l180 l
Transmissionmech.mech.mech.mech.mech.
Gears33333
Speed min-max.1,1-18,1 km/h1,2-20,7 km/h1,2-20,7 km/h1,2-20,8 km/h1,3-20 km/h
Cutting width300 cm300 cm300 cm365 cm360 cm
Cutting width, alternative240 cm260 cm360, 420 cm420, 480 cm300 cm
Reel diameter100 cm100 cm100 cm100 cm100 cm
Threshing cyl. diameter46 cm46 cm56 cm56 cm56 cm
Threshing cyl. width104 cm106 cm106 cm131 cm131 cm
Number of straw walkers44455
Area of walkers304 dm²304 dm²345 dm²430 dm²430 dm²
Lenght of walkers287 cm287 cm325 cm325 cm325 cm
Straw shieve78 dm²----
Bottom shieve85 dm²----
Total screening area190217217334334
Overall lenght796 cm796 cm857 cm864 cm864 cm
Width without header270 cm270 cm270 cm297 cm299 cm
Height without cabin310 cm340 cm340 cm355 cm377 cm
Weight without cabin4125 kg4500 kg5000 kg6000 kg6520 kg
Grain tank20 hl22.5 hl22.5 hl30 hl30 hl
Unl. height315 cm----
Tyres front (Finland)16.9-2416.9-2816.9-2818.4-3018.4-30
Tyres rear (Finland)6.00-167.50-167.50-167.50-187.50-18
Reel forward/backw. adjustmentholesholeshydr. steeringhydr. steeringhydr. steering
Reel speed adjustmentchain wheelschain wheelshydr. steeringhydr. steeringhydr. steering
Threshing cyl. speed adjustmentadj, in cabinhydr. steeringhydr. steeringhydr. steeringhydr. steering
Bottom sieveadj.adj.adj.adj.adj.
Brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakes
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas damper
Tyres front, alternative-16.9-24---
Alternative hp--76 (D-239) hp96 (D-310) hp-
Tyres rear, alternative---12-1812-18
